| Manufacturer | LODI |
|---|---|
| Model | T130.65 CN |
| Year | 2004 |
| Location | Italy
|

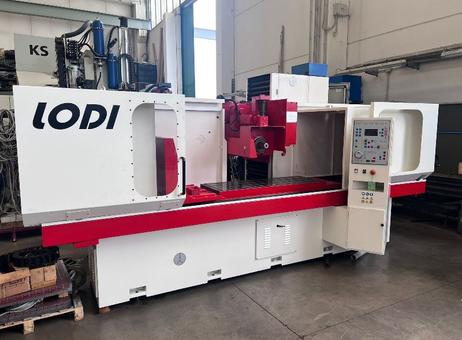

This LODI T130.65 CN surface grinding machine, manufactured in 2004, features robust construction with overall dimensions of 4825 mm in length, 2625 mm in width, and 2200 mm in height, and a net weight of 7000 kg. The machine is equipped with a spacious work surface measuring 1300 mm by 500 mm, providing ample space for various grinding tasks. The grinding table offers a maximum longitudinal travel of 1500 mm and a minimum of 150 mm, along with a maximum transversal travel of 650 mm, allowing for versatile positioning of workpieces.
The grinding wheel has dimensions of 400 mm in diameter, 127 mm in width, and a bore size of 50 mm. Powering the spindle is a 10 kW motor, equivalent to approximately 13.4 HP, with the hydraulic unit motor rated at 7.5 HP. Additional features include a control unit tank capacity of 240 liters and a coolant drainer capacity of 300 liters, supported by an electric coolant pump of 0.35 HP.
The machine offers precise control with longitudinal speeds ranging from 1 to 40 meters per minute and transversal speeds from 0 to 3 meters per minute. Automatic vertical and transversal feeds are finely adjustable, with increments as small as 0.001 mm.

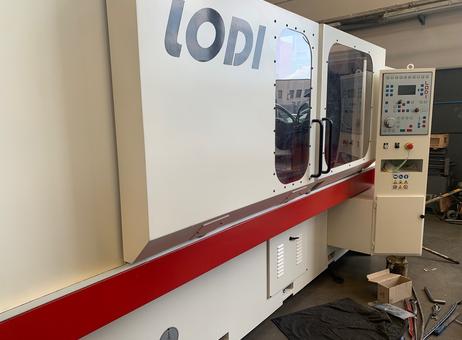

The surface grinder is designed with safety and usability in mind. It includes an enclosed grinding area with sliding doors to protect the operator and maintain a clean working environment. The control panel is conveniently located on the right side of the machine, featuring multiple buttons, a display, and an emergency stop button for immediate shutdown if necessary.

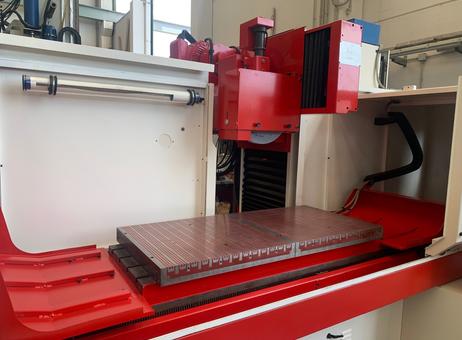

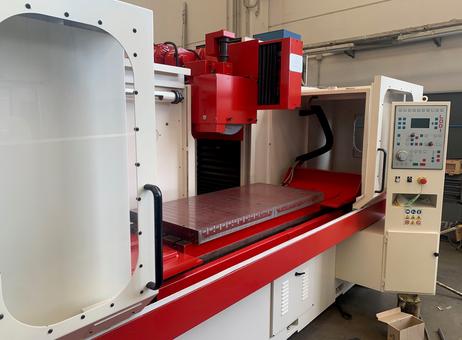

The worktable is equipped with measurement markings and T-slots to facilitate accurate positioning and secure mounting of workpieces. The grinding head, finished in red, is positioned above the worktable and includes a protective accordion cover on the vertical axis to guard against debris and wear.
Overall, the machine's housing and enclosure are clean and intact, indicating good maintenance. The worktable surface is free from rust and damage, ensuring reliable operation. This LODI surface grinder combines precise control, safety features, and a solid build, making it suitable for various industrial grinding applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Max longitudinal table travel mm 1500
Min. longitudinal table travel mm 150
Max transversal travel mm 650
Grindable length mm 1300
Grindable width mm 650
Work surface mm 1300x500
Distance between table and spindle axis mm 800
Grinding wheel dimensions mm 400x127x50
Hydraulic unit motor HP 7.5
Spindle motor HP 10
Control unit tank capacity lt.240
Coolant drainer capacity lt.300
Coolant electric pump HP 0.35
Longitudinal speed m/1' 1-40
Transversal speed m/1' 0-3
Automatic vertical feed mm 0.001
Automatic transversal feed mm 0.001
Net machine weight Kg 7000
Machine overall dimensions (width x depth x height) mm 4825x2625x2200
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
