| Manufacturer | LODI |
|---|---|
| Model | T110.60 CNC |
| Year | |
| Location | Italy
|
This LODI T110.60 CNC surface grinding machine features a large rectangular worktable measuring 1100 mm in length and 500 mm in width, providing ample space for various grinding tasks. The machine is equipped with a grinding wheel that has a maximum diameter of 400 mm, a width of 75 mm, and a bore diameter of 127 mm. The spindle delivers a power of 3.7 kW, supporting efficient grinding operations.
The machine offers CNC control, allowing for precise and automated grinding processes. The worktable supports longitudinal (X) movement of 1220 mm, vertical (Z) movement of 600 mm, and cross table (Y) movement of 600 mm, providing versatility in handling different workpieces. The distance from the spindle axis to the table surface is 700 mm.
Additional features include an automatic diamond cutter and a filtering system to maintain grinding quality and reduce dust. The machine carries CE certification, indicating compliance with relevant safety standards.
The total weight of the machine is approximately 6500 kg, and it has a total installed power of around 8 kW.

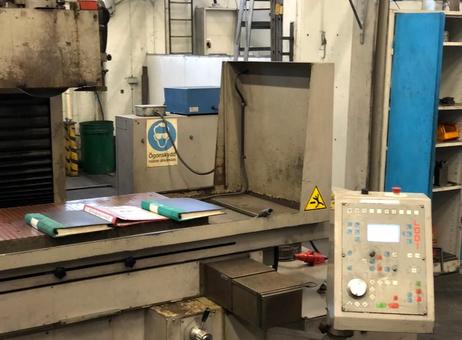

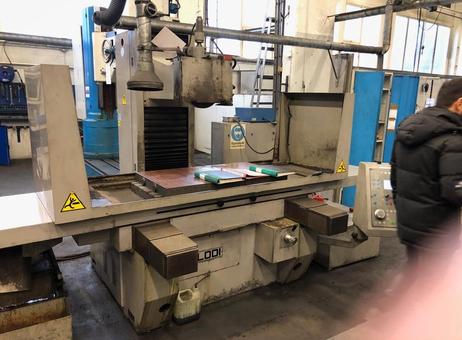

Visible components include a control panel with buttons, knobs, and an illuminated display located on the right side of the machine, facilitating user interaction and operation. The grinding head assembly is equipped with a dust extraction hose above the worktable to help manage dust during grinding. Safety warning stickers are present on the machine, highlighting caution areas.
The machine shows signs of use, with some dirt and wear marks visible on the worktable and other surfaces, indicating prior operation but no specific information about its working condition is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Surface 1100x500 mm
Grinding wheel band thickness 75mm
Max grinding wheel diameter 400mm
Hole diameter 127mm
Spindle power 3.7 kW
Distance spindle axis table surface 700 mm
Longitudinal (X) 1220 mm
Vertical (Z) 600 mm
Cross table (Y) 600 mm
CNC YES
Total machine weight 6500 Kg
Total installed power ≈8 Kw
Automatic diamond cutter Yes
Filtering system YES
CE Certification Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
