| Manufacturer | LITZ |
|---|---|
| Model | LH-800B |
| Year | 2016 |
| Location | Taiwan
|

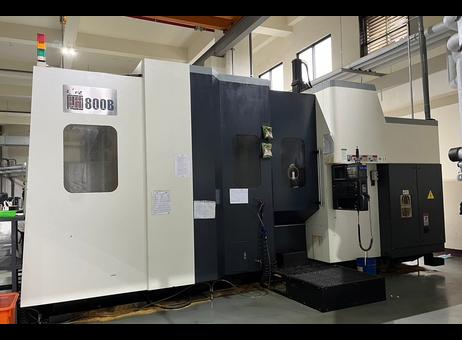

This listing features a LITZ LH-800B horizontal machining center manufactured in 2016. The machine offers substantial machining capacity with axis travels of 1300 mm in the X-axis, 1200 mm in the Y-axis, and 1200 mm in the Z-axis. It is equipped with a FANUC 0iMD controller, providing reliable and precise control for complex machining operations.
The machining center supports a pallet size of 800 x 800 mm with a 2APC system, allowing for efficient workpiece handling and increased productivity. The pallet loading capacity is rated at 2000 kg, and the pallet indexing accuracy is 1 degree, facilitating precise positioning during machining.
The spindle is capable of reaching speeds up to 6000 rpm, driven by a ZF gearbox combined with a belt drive system. It uses an HSK-A100 tool holder and includes a 60-tool automatic tool changer (ATC), enabling versatile machining with minimal downtime for tool changes.
The machine's axes are guided by roller linear guideways and equipped with linear scales to ensure accuracy and smooth movement. Additional features include coolant through spindle at 42 bar pressure, a spindle oil cooler, an oil skimmer, an oil mist collector, and a chip conveyor, all contributing to efficient operation and maintenance.
The machining center is housed in a clean, well-maintained indoor industrial environment. It has white and dark gray panels and includes a control panel with multiple buttons and a display located on the right side of the machine for operator convenience. The front of the machine features two windows, allowing clear visibility of the machining area during operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Year: 2016
Model: LH-800B
Controller: FANUC 0iMD
X/Y/Z axis travel: 1,300/1,200/1,200mm
Pallet size: 800x800mm (2APC)
Pallet loading: 2,000kg
Pallet indexing: 1ﾟ
Spindle speed: 6,000rpm (ZF gear box +Belt driven)
HSK-A100 / 60ATC
X/Y/Z axis roller linear guide way
X/Y/Z axis linear scales
Coolant thru spindle (42 bar)
Spindle oil cooler
Oil skimmer
Oil mist collector
Chip conveyor
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this LITZ LH-800B CNC machining center manufactured?
This LITZ LH-800B CNC horizontal machining center was manufactured in 2016.
What type of controller does this equipment feature?
This equipment features a FANUC 0iMD controller.
What are the X/Y/Z axis travel dimensions of this LITZ LH-800B?
This LITZ LH-800B has an X/Y/Z axis travel of 1,300/1,200/1,200 mm.
What is the pallet size of this machining center?
This machining center includes a pallet size of 800x800 mm with 2 APC.
What is the pallet loading capacity of this LITZ LH-800B?
This LITZ LH-800B has a pallet loading capacity of 2,000 kg.
What is the spindle speed of this equipment?
This equipment offers a spindle speed of 6,000 rpm with a ZF gear box and belt drive.
What tool holder and ATC does this LITZ LH-800B have?
This LITZ LH-800B is equipped with HSK-A100 and a 60 ATC.
What type of guide ways does this machining center feature?
This machining center features X/Y/Z axis roller linear guide ways.
What type of scales does this equipment include?
This equipment includes X/Y/Z axis linear scales.
What is the coolant pressure through the spindle of this LITZ LH-800B?
This LITZ LH-800B has coolant through the spindle at 42 bar.
What additional equipment is included with this machining center?
This machining center is equipped with a spindle oil cooler, oil skimmer, and oil mist collector.
What measuring systems are included with this equipment?
This equipment includes a chip conveyor and RMP6 part measuring system with Metrol tool measuring system.
What type of machine is this LITZ LH-800B?
This LITZ LH-800B is a CNC horizontal machining center.
What year was this equipment manufactured?
This equipment was manufactured in the year 2016.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
