| Manufacturer | Lincoln Electric |
|---|---|
| Model | K1383-4 |
| Year | |
| Location | United Kingdom
|
The Lincoln Electric Idealarc® DC-1500 Multi-Process Welder, model K1383-4, is a robust DC arc welding power source designed for automatic welding applications. It operates on a power supply of 380/440V, 3-Phase, 50/60Hz, and offers a rated output of 1500A at 44V or 60V with a 100% duty cycle. The output range spans from 20 to 60 volts and 200 to 1500 amps, suitable for various welding processes including submerged arc welding and flux-cored arc welding within the machine's capacity.
This welder features solid-state circuitry for extended life in repetitive welding tasks and includes a full-range output voltage control potentiometer for precise and easy operation. It is equipped with a mode switch to select the desired output characteristics based on the welding process used. The unit also incorporates line voltage compensation to maintain weld consistency despite voltage fluctuations of ±10%.
Cooling is managed through a fan system with electronic and thermostatic protection against current overload and excessive temperatures. The internal windings and rectifiers are safeguarded against moisture and corrosive environments. Additionally, the machine provides an eight-amp fuse-protected 115V auxiliary power supply for wire feeders, with a capacity of 1000 volt-amps.

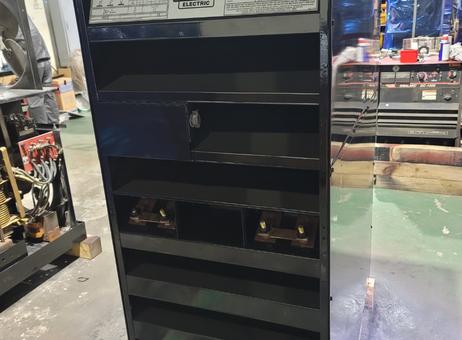

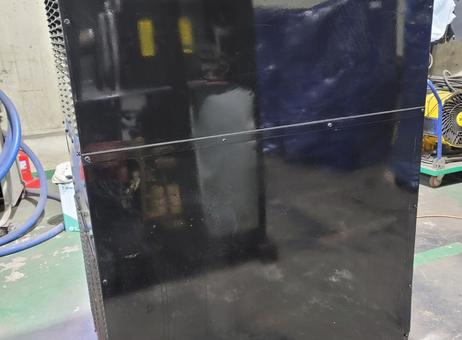

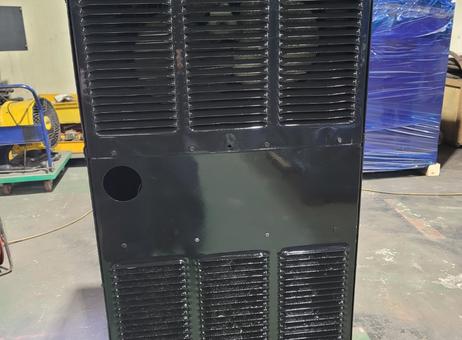

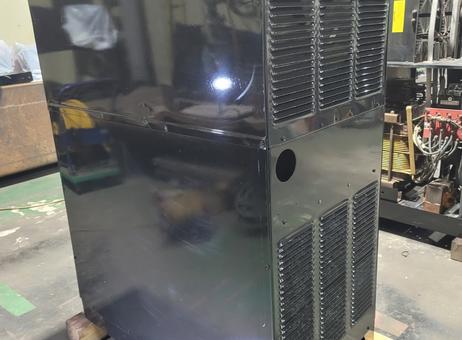

Physically, the welder measures approximately 57.2 inches in height, 22.3 inches in width, and 38 inches in depth (1453 mm x 566 mm x 965 mm) and weighs 644 kg (1420 lbs). Visual inspection shows the machine in good cosmetic condition with glossy paint, minor surface scratches, and no visible dents or rust. Multiple ventilation grills are present on the sides and rear to ensure adequate cooling.
This model is manufactured under a quality system certified to ISO 9001 and ISO 14001 environmental standards. Several units are available, and shipping is arranged by freight from Busan, South Korea. Buyers are responsible for import duties, VAT, and shipping costs. Bulk order discounts may be available upon inquiry.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Lincoln Idealarc® DC- 1500 Multi-Process Welder
Model: K1383-4
Power Supply: 380/440V | 3-Phase | 50/60Hz
Idealarc DC1500 multi-process welder is a DC arc welding power source for automatic welding applications.
Condition:
Used (Tested & Fully Functional)
Excellent Condition
Warranty: 1 Year
Shipping by freight from Busan, South Korea for large items is estimated at approximately £1,000–£1,500 per machine. Costs may be reduced when ordering multiple items. Estimated shipping time is around 45 - 60 days. The buyer is responsible for import duties, VAT, and shipping costs. Please contact us for a more accurate estimate.
Multiple units available. Discounted rates available on bulk orders. Get in touch to find our more.
Product Name
Idealarc® DC-1500 460/3/60
Product Number
K1383-4
Input Power
380/440/3/50/60
Rated Output
1500A/44V /100%
1500A/60V/100%
Input Current
216A/187A
Output Range
20-60V
200-1500A
Dimensions (H x W x D)
57.2 in x 22.3 in x 38 in (1453 mm x 566 mm x 965 mm)
Net Weight
1420.000 lbs. (644 kg.)
The DC-1500 is a multiprocess DC arc welding power source for automatic welding applications. It produces outstanding arc characteristics on both constant voltage and constant current processes. This provides great welding versatility in a single power source.
The DC-1500 is designed for submerged arc welding, and FCAW processes within the capacity of the machine. It produces outstanding welding performance with a single range full output control potentiometer.
The precise output of the DC-1500 enhances productivity and quality control when used with Lincoln NA-3 and NA-5 automatic wire feeders, and the LT-7 tractor.
Solid state circuitry provides extra ling life for repetitive welding applications.
Full range output voltage control for easy operation and precise output control.
Mode switch used to select the desired output characteristics for the process being used.
Line voltage compensation for maintaining weld consistency, even with line voltage changes of ±10%.
Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.
Function lights built into the printed circuit boards speed diagnostics.
Windings and rectifiers protected against moisture and corrosive environments.
Eight amp fuse protected 115V wire feeder auxiliary power with 1000 volt-amp capacity.
Manufactured under a quality system certified to ISO 9001 requirements and ISO 14001 environmental standards.
Features
Line voltage compensation for maintaining weld consistency, even with line voltage changes of ±10%.
Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.
Windings and rectifiers protected against moisture and corrosive environments.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2025 |
| Offers online | 9 |
| Last activity | Oct. 12, 2026 |
Lincoln Idealarc® DC- 1500 Multi-Process Welder
Model: K1383-4
Power Supply: 380/440V | 3-Phase | 50/60Hz
Idealarc DC1500 multi-process welder is a DC arc welding power source for automatic welding applications.
Condition:
Used (Tested & Fully Functional)
Excellent Condition
Warranty: 1 Year
Shipping by freight from Busan, South Korea for large items is estimated at approximately £1,000–£1,500 per machine. Costs may be reduced when ordering multiple items. Estimated shipping time is around 45 - 60 days. The buyer is responsible for import duties, VAT, and shipping costs. Please contact us for a more accurate estimate.
Multiple units available. Discounted rates available on bulk orders. Get in touch to find our more.
Product Name
Idealarc® DC-1500 460/3/60
Product Number
K1383-4
Input Power
380/440/3/50/60
Rated Output
1500A/44V /100%
1500A/60V/100%
Input Current
216A/187A
Output Range
20-60V
200-1500A
Dimensions (H x W x D)
57.2 in x 22.3 in x 38 in (1453 mm x 566 mm x 965 mm)
Net Weight
1420.000 lbs. (644 kg.)
The DC-1500 is a multiprocess DC arc welding power source for automatic welding applications. It produces outstanding arc characteristics on both constant voltage and constant current processes. This provides great welding versatility in a single power source.
The DC-1500 is designed for submerged arc welding, and FCAW processes within the capacity of the machine. It produces outstanding welding performance with a single range full output control potentiometer.
The precise output of the DC-1500 enhances productivity and quality control when used with Lincoln NA-3 and NA-5 automatic wire feeders, and the LT-7 tractor.
Solid state circuitry provides extra ling life for repetitive welding applications.
Full range output voltage control for easy operation and precise output control.
Mode switch used to select the desired output characteristics for the process being used.
Line voltage compensation for maintaining weld consistency, even with line voltage changes of ±10%.
Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.
Function lights built into the printed circuit boards speed diagnostics.
Windings and rectifiers protected against moisture and corrosive environments.
Eight amp fuse protected 115V wire feeder auxiliary power with 1000 volt-amp capacity.
Manufactured under a quality system certified to ISO 9001 requirements and ISO 14001 environmental standards.
Features
Line voltage compensation for maintaining weld consistency, even with line voltage changes of ±10%.
Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.
Windings and rectifiers protected against moisture and corrosive environments.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Lincoln Electric Idealarc® DC-1500 Multi-Process Welder, model K1383-4, is a robust DC arc welding power source designed for automatic welding applications. It operates on a power supply of 380/440V, 3-Phase, 50/60Hz, and offers a rated output of 1500A at 44V or 60V with a 100% duty cycle. The output range spans from 20 to 60 volts and 200 to 1500 amps, suitable for various welding processes including submerged arc welding and flux-cored arc welding within the machine's capacity.
This welder features solid-state circuitry for extended life in repetitive welding tasks and includes a full-range output voltage control potentiometer for precise and easy operation. It is equipped with a mode switch to select the desired output characteristics based on the welding process used. The unit also incorporates line voltage compensation to maintain weld consistency despite voltage fluctuations of ±10%.
Cooling is managed through a fan system with electronic and thermostatic protection against current overload and excessive temperatures. The internal windings and rectifiers are safeguarded against moisture and corrosive environments. Additionally, the machine provides an eight-amp fuse-protected 115V auxiliary power supply for wire feeders, with a capacity of 1000 volt-amps.
Physically, the welder measures approximately 57.2 inches in height, 22.3 inches in width, and 38 inches in depth (1453 mm x 566 mm x 965 mm) and weighs 644 kg (1420 lbs). Visual inspection shows the machine in good cosmetic condition with glossy paint, minor surface scratches, and no visible dents or rust. Multiple ventilation grills are present on the sides and rear to ensure adequate cooling.
This model is manufactured under a quality system certified to ISO 9001 and ISO 14001 environmental standards. Several units are available, and shipping is arranged by freight from Busan, South Korea. Buyers are responsible for import duties, VAT, and shipping costs. Bulk order discounts may be available upon inquiry.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
