Contact us to receive an offer.
| Manufacturer | LILIAN |
|---|---|
| Model | SVM 105 |
| Year | 2013 |
| Location | Czech Republic
|

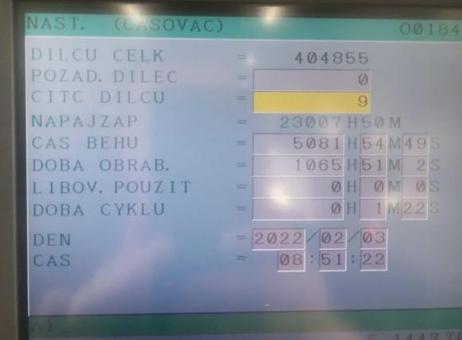

This listing is for a LILIAN SVM 105 vertical machining center manufactured in 2013. The machine features a Fanuc Oi-MC control system with a control panel located on the right side, equipped with buttons and a display screen that shows operational data including machine hours and status. The machining center has a travel of 1050 mm on the X-axis, 510 mm on the Y-axis, and 560 mm on the Z-axis. The worktable measures 1200 mm in length and 500 mm in width, and it can support a maximum evenly distributed load of 650 kg. The machine is equipped with a 32-pocket tool magazine and a spindle motor with a power rating of 11 kW. It uses a BT40 spindle cone and supports tool weights up to 6 kg, with spindle speeds ranging from 60 to 8000 rpm.

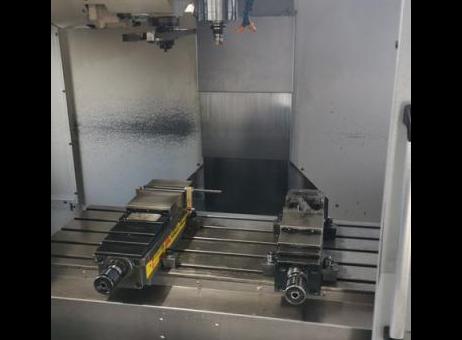

The machining center has a solid base with leveling feet for stability. The interior includes two vises or clamps mounted on the worktable for securing workpieces during machining. The spindle head is positioned above the table with a tool holder attached. The machine is fitted with a chip conveyor and central cooling system to assist in machining operations. Dimensions of the machine are 3050 mm in length, 2319 mm in width, and 2558 mm in height, with a total weight of approximately 5200 kg.

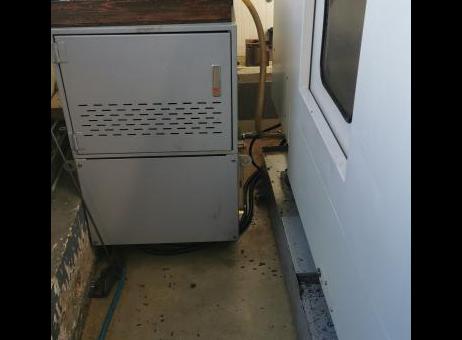

The machine appears to be in clean and good physical condition with minimal visible wear. The interior surfaces and worktable are well-maintained. There is an attached hose or cable near the control panel. The floor around the machine shows some dirt and wear marks. Various tools and accessories are stored on a cabinet adjacent to the machine. Inspection of the machine in operation may be arranged by prior agreement.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The machine is in good technical condition. X-axis travel: 1050 mm Y-axis travel: 510 mm Z-axis travel: 560 cm Control system: Fanuc Oi-MC Work table length: 1200 mm Work table width: 500 mm Maximum table load (evenly): 650 kg Number of tools in magazine : 32 pcs Speed: 60-8000 1 / min Cone: BT40 Max. tool weight: 6 kg Power of the main electric motor: 11/15 kW Machine height: 2558 mm Machine length: 3050 mm Machine width: 2319 mm Machine weight: 5200 kg Chip conveyor Central cooling By prior arrangement, the possibility of inspection in operation.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 479 |
| Last activity | Oct. 31, 2026 |
The machine is in good technical condition. X-axis travel: 1050 mm Y-axis travel: 510 mm Z-axis travel: 560 cm Control system: Fanuc Oi-MC Work table length: 1200 mm Work table width: 500 mm Maximum table load (evenly): 650 kg Number of tools in magazine : 32 pcs Speed: 60-8000 1 / min Cone: BT40 Max. tool weight: 6 kg Power of the main electric motor: 11/15 kW Machine height: 2558 mm Machine length: 3050 mm Machine width: 2319 mm Machine weight: 5200 kg Chip conveyor Central cooling By prior arrangement, the possibility of inspection in operation.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a LILIAN SVM 105 vertical machining center manufactured in 2013. The machine features a Fanuc Oi-MC control system with a control panel located on the right side, equipped with buttons and a display screen that shows operational data including machine hours and status. The machining center has a travel of 1050 mm on the X-axis, 510 mm on the Y-axis, and 560 mm on the Z-axis. The worktable measures 1200 mm in length and 500 mm in width, and it can support a maximum evenly distributed load of 650 kg. The machine is equipped with a 32-pocket tool magazine and a spindle motor with a power rating of 11 kW. It uses a BT40 spindle cone and supports tool weights up to 6 kg, with spindle speeds ranging from 60 to 8000 rpm.
The machining center has a solid base with leveling feet for stability. The interior includes two vises or clamps mounted on the worktable for securing workpieces during machining. The spindle head is positioned above the table with a tool holder attached. The machine is fitted with a chip conveyor and central cooling system to assist in machining operations. Dimensions of the machine are 3050 mm in length, 2319 mm in width, and 2558 mm in height, with a total weight of approximately 5200 kg.
The machine appears to be in clean and good physical condition with minimal visible wear. The interior surfaces and worktable are well-maintained. There is an attached hose or cable near the control panel. The floor around the machine shows some dirt and wear marks. Various tools and accessories are stored on a cabinet adjacent to the machine. Inspection of the machine in operation may be arranged by prior agreement.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
