Contact us to receive an offer.
| Manufacturer | Ligmatech |
|---|---|
| Model | BOOMERANG ZHR 15/13/L |
| Year | 1994 |
| Location | Germany
|
Type: BOOMERANG / Return Ligmatech, Type ZHR 15/13/L
Year of manufacture: 1994 (CE)
Overview:

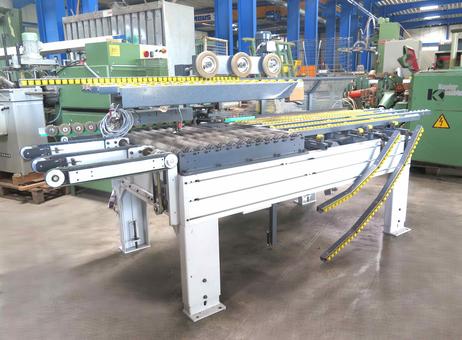

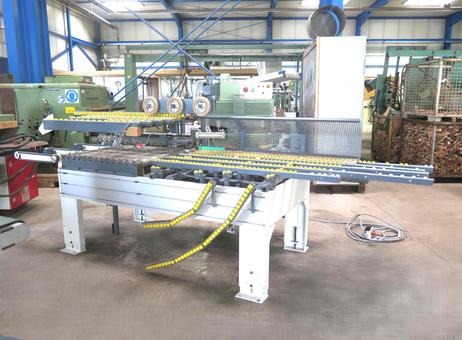

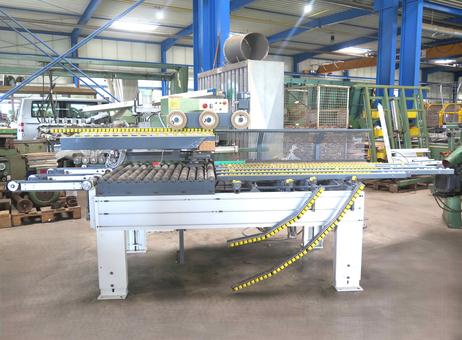

This is a workpiece return conveyor ("Boomerang") intended for use with edging and panel-processing lines. It is designed to return processed panels to the operator or to convey them onward to the next workstation. The unit offers selectable 90° rotation or straight return; rotation can be switched off when not required.
Conveyor and handling features:

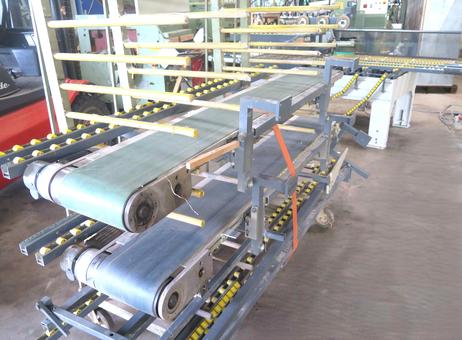

- Two split conveyor belts, each 2 m long, provide the conveying surface for panels.

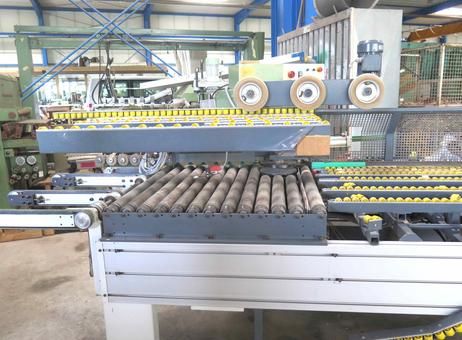

- Automatic panel rotation is controlled according to panel size; panel size is detected by a sensor. Different part dimensions can be handled and controlled automatically.
- Feed speed is steplessly adjustable between 8 and 40 m/min.
Workpiece capacity and permitted dimensions (from documentation):
Without rotary unit:
- Max weight: 50 kg
- Length: 300 mm to 2200 mm
- Width: 120 mm to 1000 mm
- Thickness: 10 mm to 60 mm
With rotary unit:
- Max weight: 30 kg
- Length: 300 mm to 2000 mm
- Width: 120 mm to 600 mm
- Thickness: 10 mm; up to 22 mm for large parts, otherwise up to 60 mm possible
Integration and use:
The unit was used on a Holz-Her 1426 edging machine (year 1998) and is suitable for returning parts to an operator station or feeding parts to subsequent workstations. Documentation for the machine is available.
Dimensions:
Assembled dimensions (approx.): 8500 mm x 2000 mm x H 1600 mm.
Transport dimensions (approx.): 3500 mm x 1400 mm x H 1600 mm.
Plus pallet dimensions: 2900 mm x 900 mm x H 1000 mm.
Notes:
All specifications above are taken from the supplied documentation and the previous product description. No additional claims about operational status, testing, or refurbishment are made.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Workpiece Return BOOMERANG / Return Ligmatech
Type ZHR 15/13/L
Year of manufacture: 1994 CE
with 2 split conveyor belts each 2 m long
was used on a Holz-Her 1426 edging machine, year 98
Workpieces can be returned to the operator with a 90° rotation or without
rotation, the rotation can be switched off.
Automatic rotation according to the panel size,
the panel size is detected by a sensor.
Different part dimensions can be controlled automatically.
Also suitable for further transport of parts to the next workstation.
Feed speed stepless 8 – 40 m/min.
Workpiece dimensions according to documentation
Without rotary unit max weight 50 kg
Length min 300 mm – max 2200 mm
Width min 120 mm – max 1000 mm
Thickness min 10 mm – max 60 mm
With rotary unit max weight 30 kg
Length min 300 mm – max 2000 mm
Width min 120 mm – max 600 mm
Thickness min 10 mm max 22 mm for large parts, otherwise up to 60 mm possible
Documentation available
Dimensions assembled approx.
8500 mm x 2000 mm x H 1600 mm
Transport dimensions
3500 mm x 1400 mm x H 1600 mm
Plus pallet 2900 mm x 900 mm x H 1000 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
