Contact us to receive an offer.
| Manufacturer | Liaoyang Tianxing Centrifuge Co.,Ltd |
|---|---|
| Model | GQ-115 |
| Year | 2022 |
| Location | Poland
|
This listing is for a Liaoyang Tianxing Centrifuge Co., Ltd GQ-115 tubular centrifuge, manufactured in 2022. The centrifuge features a stainless steel vertical cylindrical design and is mounted on a concrete base, providing stability during operation. It is equipped with a bowl having an inner diameter of 114 mm, capable of reaching speeds up to 18,000 revolutions per minute, generating a centrifugal force of 17,000 G. The bowl volume is 7 liters, with a solid holding capacity between 3 to 4 liters.
The machine supports a maximum throughput of 1300 liters per hour when processing water, with a feeding pressure greater than 0.05 MPa. It operates with a 3 kW motor running at 380V, 50Hz, three-phase power, and a rotational speed of 2845 revolutions per minute. The centrifuge weighs approximately 480 kg and measures 600 mm in length, 900 mm in width, and 1600 mm in height.
All contact parts are made from AISI 316L stainless steel, ensuring corrosion resistance and durability. The frame is covered by AISI 304 stainless steel for added protection. The centrifuge is an open type and includes an explosion-proof motor for enhanced safety. It comes with a Variable Frequency Drive (VFD) control cabinet, allowing the rotation speed to be adjusted according to process requirements. A feeding pump is also included.

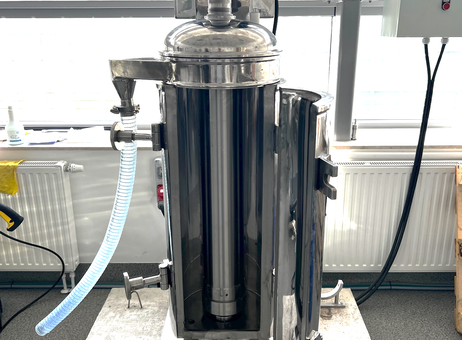

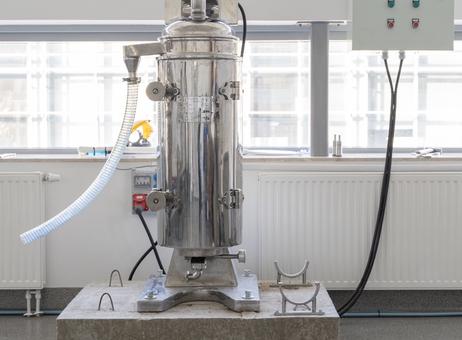

Visible components include a flexible corrugated hose attached to the left side of the machine and a control panel with buttons and display mounted on the wall to the right. The top section of the machine has a protective cover with a central vertical shaft. The centrifuge appears clean and well-maintained with no visible damage, indicating careful upkeep.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Used tubular centrifuge
Technical specification:
Bowl – inner diameter 114 mm
Speed 18000 obr/min
Volume 7 L
Solid holding volume 3-4 L
G force 17000 G
Diameter of nozzle 3, 7, 8 mm
Max troughput based on water 1300 L/h
Feeding pressure >0.05 MPa
Motor power 3 kW, 380V 50HZ 3 phase
Speed 2845 obr/min
Weight 480 kg
Size (L*W*H) 600*900*1600 mm
All contact parts with AISI 316L
Open type
Explosion-proof motor
VFD Control cabinet
Rotation speed can be adjusted
Feeding pump
Frame covered by stainless steel AISI 304
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2023 |
| Offers online | 5 |
| Last activity | Oct. 22, 2026 |
Used tubular centrifuge
Technical specification:
Bowl – inner diameter 114 mm
Speed 18000 obr/min
Volume 7 L
Solid holding volume 3-4 L
G force 17000 G
Diameter of nozzle 3, 7, 8 mm
Max troughput based on water 1300 L/h
Feeding pressure >0.05 MPa
Motor power 3 kW, 380V 50HZ 3 phase
Speed 2845 obr/min
Weight 480 kg
Size (L*W*H) 600*900*1600 mm
All contact parts with AISI 316L
Open type
Explosion-proof motor
VFD Control cabinet
Rotation speed can be adjusted
Feeding pump
Frame covered by stainless steel AISI 304
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a Liaoyang Tianxing Centrifuge Co., Ltd GQ-115 tubular centrifuge, manufactured in 2022. The centrifuge features a stainless steel vertical cylindrical design and is mounted on a concrete base, providing stability during operation. It is equipped with a bowl having an inner diameter of 114 mm, capable of reaching speeds up to 18,000 revolutions per minute, generating a centrifugal force of 17,000 G. The bowl volume is 7 liters, with a solid holding capacity between 3 to 4 liters.
The machine supports a maximum throughput of 1300 liters per hour when processing water, with a feeding pressure greater than 0.05 MPa. It operates with a 3 kW motor running at 380V, 50Hz, three-phase power, and a rotational speed of 2845 revolutions per minute. The centrifuge weighs approximately 480 kg and measures 600 mm in length, 900 mm in width, and 1600 mm in height.
All contact parts are made from AISI 316L stainless steel, ensuring corrosion resistance and durability. The frame is covered by AISI 304 stainless steel for added protection. The centrifuge is an open type and includes an explosion-proof motor for enhanced safety. It comes with a Variable Frequency Drive (VFD) control cabinet, allowing the rotation speed to be adjusted according to process requirements. A feeding pump is also included.
Visible components include a flexible corrugated hose attached to the left side of the machine and a control panel with buttons and display mounted on the wall to the right. The top section of the machine has a protective cover with a central vertical shaft. The centrifuge appears clean and well-maintained with no visible damage, indicating careful upkeep.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
