Contact us to receive an offer.
| Manufacturer | Leopoldo Pontiggia |
|---|---|
| Model | SFE 700 |
| Year | 1980 |
| Location | Netherlands
|
This Leopoldo Pontiggia SFE 700 industrial lathe, manufactured in 1980, is designed for heavy-duty turning operations with a maximum turning length of 3000 mm and a swing over bed diameter of 1390 mm. The machine supports a maximum workpiece weight of 8000 kg, making it suitable for large and heavy components. It features a spindle bore of 150 mm and a spindle motor power of 18 kW, enabling a turning speed of up to 350 rpm. The lathe is equipped with a 3-jaw chuck, providing secure and precise workpiece holding.
The machine dimensions are substantial, measuring 6600 mm in length, 1800 mm in width, and 2000 mm in height, with a total weight of 18,000 kg. The bed width is 700 mm, and it includes a stroke pinole of 300 mm. The spindle taper is Metric 80 Mk, supporting various tooling options. The lathe has a Heidenhain digital readout system for the X and Z axes, facilitating accurate positioning and measurement during machining.

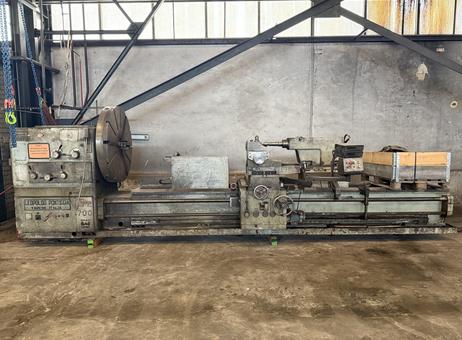

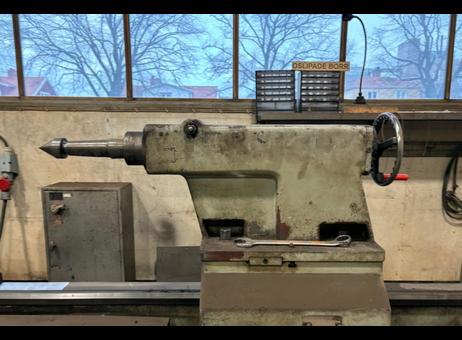

The machine offers feeds in two directions and supports multi-fix tool systems with inserts, enhancing versatility for different turning tasks. The carriage and cross slide assembly include handwheels for manual operation. A tailstock with a handwheel is positioned on the right side, allowing support for long workpieces.

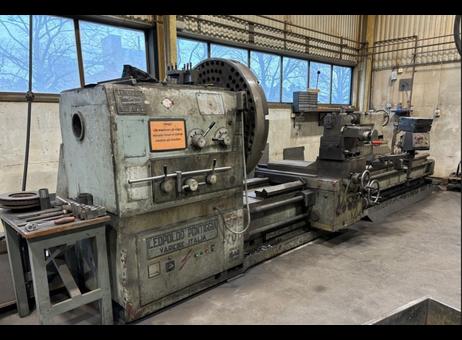

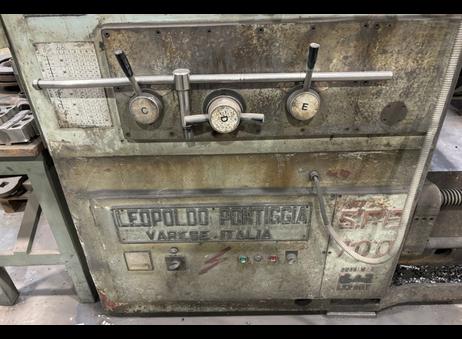

The lathe shows signs of prior use, with visible wear and dirt on its surfaces, typical for industrial equipment of this age. The brand name 'LEOPOLDO PONTIGGIA VARESE ITALIA' is clearly marked on the machine base, confirming its origin and authenticity.
Overall, this robust lathe is suitable for heavy industrial applications requiring large capacity turning with reliable mechanical components and digital measurement aids.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

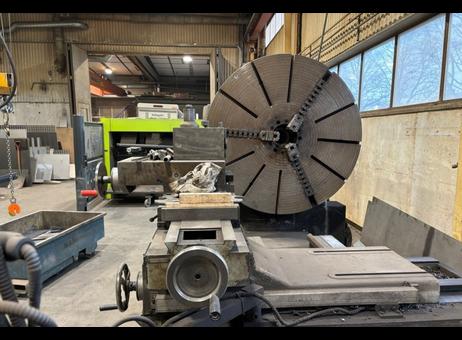

3 chuck 1200 mm
Heidenhain Digital read out syhstem X / Z Axis
Feeds in 2 directions
Multi fix Tool systems with inserts
DBC Turning Length
3000 mm
Swing over bed Ø
1390 mm
Swing over cross slide Ø
1020 mm
Spindle bore
150 mm
Bed width
700 mm
Stroke pinole
300 mm
Spindle taper
Metric 80 Mk
Power
18 kW
Speeds / ranges
0 - 350 Rpm
Workpiece load
8000
Length
6600 mm
Width
1800 mm
Height
2000 mm
Weight
18000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 300 |
| Last activity | Oct. 27, 2026 |
3 chuck 1200 mm
Heidenhain Digital read out syhstem X / Z Axis
Feeds in 2 directions
Multi fix Tool systems with inserts
DBC Turning Length
3000 mm
Swing over bed Ø
1390 mm
Swing over cross slide Ø
1020 mm
Spindle bore
150 mm
Bed width
700 mm
Stroke pinole
300 mm
Spindle taper
Metric 80 Mk
Power
18 kW
Speeds / ranges
0 - 350 Rpm
Workpiece load
8000
Length
6600 mm
Width
1800 mm
Height
2000 mm
Weight
18000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Leopoldo Pontiggia SFE 700 industrial lathe, manufactured in 1980, is designed for heavy-duty turning operations with a maximum turning length of 3000 mm and a swing over bed diameter of 1390 mm. The machine supports a maximum workpiece weight of 8000 kg, making it suitable for large and heavy components. It features a spindle bore of 150 mm and a spindle motor power of 18 kW, enabling a turning speed of up to 350 rpm. The lathe is equipped with a 3-jaw chuck, providing secure and precise workpiece holding.
The machine dimensions are substantial, measuring 6600 mm in length, 1800 mm in width, and 2000 mm in height, with a total weight of 18,000 kg. The bed width is 700 mm, and it includes a stroke pinole of 300 mm. The spindle taper is Metric 80 Mk, supporting various tooling options. The lathe has a Heidenhain digital readout system for the X and Z axes, facilitating accurate positioning and measurement during machining.
The machine offers feeds in two directions and supports multi-fix tool systems with inserts, enhancing versatility for different turning tasks. The carriage and cross slide assembly include handwheels for manual operation. A tailstock with a handwheel is positioned on the right side, allowing support for long workpieces.
The lathe shows signs of prior use, with visible wear and dirt on its surfaces, typical for industrial equipment of this age. The brand name 'LEOPOLDO PONTIGGIA VARESE ITALIA' is clearly marked on the machine base, confirming its origin and authenticity.
Overall, this robust lathe is suitable for heavy industrial applications requiring large capacity turning with reliable mechanical components and digital measurement aids.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 300 |
| Last activity | Oct. 27, 2026 |
