Contact us to receive an offer.
| Manufacturer | Leifeld |
|---|---|
| Model | Pls 1500 |
| Year | 1966 |
| Location | Russia
|
| Category | Miscellaneous presses and forging machines |
| Weight | 72200 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 22/04/2024 |
| Product id | P240419036 |
| Language |
None Leifeld Pls 1500
Leifeld Pls 1500
Leifeld Pls 1500 None
Leifeld Pls 1500
None Leifeld Pls 1500
Leifeld Pls 1500
Leifeld Pls 1500
Leifeld Pls 1500
None Leifeld Pls 1500
Leifeld Pls 1500 None
Leifeld Pls 1500
None Leifeld Pls 1500
Leifeld Pls 1500 None
Leifeld Pls 1500
Leifeld Pls 1500
None Leifeld Pls 1500
ротационный станок Leifeld для производства днищ
None Leifeld Pls 1500
Leifeld Pls 1500 None
Leifeld Pls 1500
|

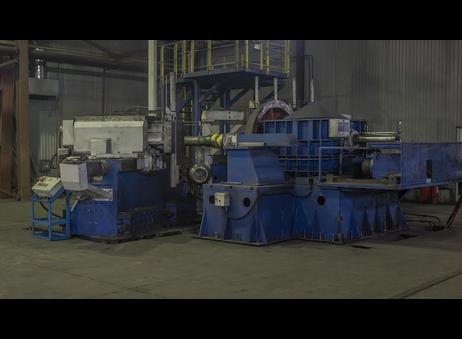

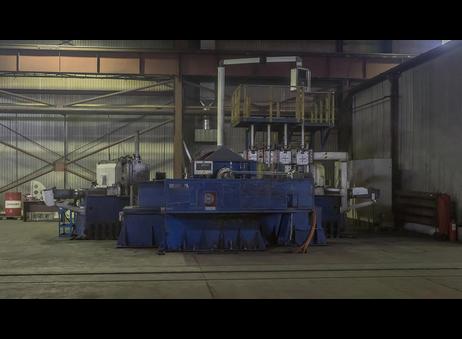

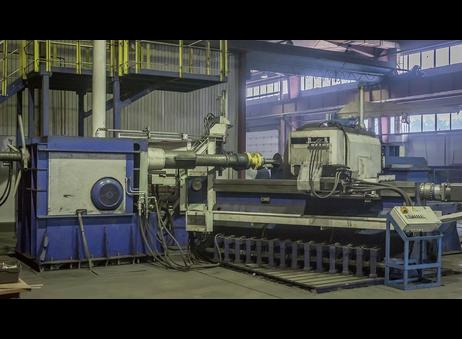

For sale is a Leifeld rotary extrusion machine, model Pls 1500, manufactured in 1966, weighing approximately 72,200 kg. This industrial forging machine is designed for the production of bottoms and features a robust construction suitable for heavy-duty applications. The machine includes a control panel equipped with multiple buttons and switches, mounted on a blue stand for operational ease. It has two large cylindrical components extending horizontally, integral to its forging process.
The machine's technical specifications include a center height of 2200 mm and a width of centers between the spindle flange and pressure head of 2600 mm. It can handle round workpieces with a minimum diameter of 300 mm and a maximum billet diameter of 3000 mm. The machine supports sheet thicknesses ranging from 5 to 10 mm. It operates at two gear stages, with speeds from 5 to 240 rpm and 5 to 540 rpm respectively. The spindle head conforms to DIN 55027 size 15.
Additional features include a caliper with longitudinal stroke of 2300 mm and transverse travel of 700 mm, capable of applying forces up to 300 kN both longitudinally and in shear. The tailstock offers a lifting height of 1200 mm and pressing forces between 5 and 240 kN. An ejector lift of 450 mm with clamping forces from 20 to 180 kN is also part of the machine's setup.
The main spindle drive is rated at 200 kW, supported by a 70 kW hydraulic drive. The machine operates at a noise level of 80 dBA. It is equipped with multiple hydraulic or pneumatic lines and features yellow safety railings and a platform structure above the machine for operator access. Protective mesh guards are installed on the sides for safety. The machine is positioned indoors on a concrete floor within a spacious industrial facility, appearing intact and well-maintained with no visible external damage or rust.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
We are selling a rotary extrusion machine for the production of bottoms, model Keilinghaus (Leifeld) Pls 1500, serial number 688/65, after a general reconstruction and equipped with a new Sinumerik 840 D control.
The entire machine has undergone a general reconstruction and is brought into the state of the art.
All caliper guides, spindle box bearings and pressure head have been updated.
Hydraulic valves and pumps are new.
All hydraulic cylinders have been adjusted and undergone general reconstruction.
Electrics and controls are new.
All guides are equipped with central lubrication.
Technical characteristics of the Keilinghaus Pls 1500 machine
Parameter Meaning
Center height 2200 mm
Width of centers between spindle flange and pressure head 2600 mm
Min. diameter of round workpiece 300 mm
Max. round billet diameter 3000 mm
Max. sheet thickness, 10 mm 10 mm
Min. Sheet sheet thickness, 5 mm
Speed:
1st gear stage 5-240 rpm
2nd gear stage 5-540 rpm
Spindle head DIN 55027 size 15
Caliper:
stroke in longitudinal direction 2300 mm
transverse travel 700 mm
longitudinal force 300 kN
shear force 300 kN
speed in longitudinal direction 3 m/min
cross speed 3 m/min
Tailstock:
lifting height 1200 mm
pressing force 5-240 kN
forward travel speed 6 m/min
reverse speed
8 m/min
Ejector:
ejector lift 450 mm
clamping force 20-180 kN
forward travel speed 6 m/min
reverse travel speed 8 m/min
Main spindle drive 200 kW
Hydraulic drive 70 kW
Noise level 80dBA
Machine weight (without tools) 72200 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery manufacturer |
| Active since | 2015 |
| Offers online | 1 |
| Last activity | July 27, 2026 |
We are selling a rotary extrusion machine for the production of bottoms, model Keilinghaus (Leifeld) Pls 1500, serial number 688/65, after a general reconstruction and equipped with a new Sinumerik 840 D control.
The entire machine has undergone a general reconstruction and is brought into the state of the art.
All caliper guides, spindle box bearings and pressure head have been updated.
Hydraulic valves and pumps are new.
All hydraulic cylinders have been adjusted and undergone general reconstruction.
Electrics and controls are new.
All guides are equipped with central lubrication.
Technical characteristics of the Keilinghaus Pls 1500 machine
Parameter Meaning
Center height 2200 mm
Width of centers between spindle flange and pressure head 2600 mm
Min. diameter of round workpiece 300 mm
Max. round billet diameter 3000 mm
Max. sheet thickness, 10 mm 10 mm
Min. Sheet sheet thickness, 5 mm
Speed:
1st gear stage 5-240 rpm
2nd gear stage 5-540 rpm
Spindle head DIN 55027 size 15
Caliper:
stroke in longitudinal direction 2300 mm
transverse travel 700 mm
longitudinal force 300 kN
shear force 300 kN
speed in longitudinal direction 3 m/min
cross speed 3 m/min
Tailstock:
lifting height 1200 mm
pressing force 5-240 kN
forward travel speed 6 m/min
reverse speed
8 m/min
Ejector:
ejector lift 450 mm
clamping force 20-180 kN
forward travel speed 6 m/min
reverse travel speed 8 m/min
Main spindle drive 200 kW
Hydraulic drive 70 kW
Noise level 80dBA
Machine weight (without tools) 72200 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Category | Miscellaneous presses and forging machines |
| Weight | 72200 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 22/04/2024 |
| Product id | P240419036 |
| Language |
None Leifeld Pls 1500
Leifeld Pls 1500
Leifeld Pls 1500 None
Leifeld Pls 1500
None Leifeld Pls 1500
Leifeld Pls 1500
Leifeld Pls 1500
Leifeld Pls 1500
None Leifeld Pls 1500
Leifeld Pls 1500 None
Leifeld Pls 1500
None Leifeld Pls 1500
Leifeld Pls 1500 None
Leifeld Pls 1500
Leifeld Pls 1500
None Leifeld Pls 1500
ротационный станок Leifeld для производства днищ
None Leifeld Pls 1500
Leifeld Pls 1500 None
Leifeld Pls 1500
|
For sale is a Leifeld rotary extrusion machine, model Pls 1500, manufactured in 1966, weighing approximately 72,200 kg. This industrial forging machine is designed for the production of bottoms and features a robust construction suitable for heavy-duty applications. The machine includes a control panel equipped with multiple buttons and switches, mounted on a blue stand for operational ease. It has two large cylindrical components extending horizontally, integral to its forging process.
The machine's technical specifications include a center height of 2200 mm and a width of centers between the spindle flange and pressure head of 2600 mm. It can handle round workpieces with a minimum diameter of 300 mm and a maximum billet diameter of 3000 mm. The machine supports sheet thicknesses ranging from 5 to 10 mm. It operates at two gear stages, with speeds from 5 to 240 rpm and 5 to 540 rpm respectively. The spindle head conforms to DIN 55027 size 15.
Additional features include a caliper with longitudinal stroke of 2300 mm and transverse travel of 700 mm, capable of applying forces up to 300 kN both longitudinally and in shear. The tailstock offers a lifting height of 1200 mm and pressing forces between 5 and 240 kN. An ejector lift of 450 mm with clamping forces from 20 to 180 kN is also part of the machine's setup.
The main spindle drive is rated at 200 kW, supported by a 70 kW hydraulic drive. The machine operates at a noise level of 80 dBA. It is equipped with multiple hydraulic or pneumatic lines and features yellow safety railings and a platform structure above the machine for operator access. Protective mesh guards are installed on the sides for safety. The machine is positioned indoors on a concrete floor within a spacious industrial facility, appearing intact and well-maintained with no visible external damage or rust.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
