Contact us to receive an offer.
| Manufacturer | LASCO |
|---|---|
| Model | TSP 160 S |
| Year | 2019 |
| Location | Poland
|
| Category | Forging - Hydraulic presses |
| Power in tons | 160 T |
| Type | H-Frame |
| Ram stroke | 650 mm |
| Length x width x height | 1570.0 × 1450.0 × 5040.0 |
| Weight | 22000 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 20/10/2026 |
| Product id | P260324103 |
| Language |
Хидравлична преса LASCO TSP 160 S
Hydraulický lis LASCO TSP 160 S
LASCO TSP 160 S Hydraulisk presse
LASCO TSP 160 S Hydraulische Presse
Υδραυλική πρέσα LASCO TSP 160 S
LASCO TSP 160 S Hydraulic press
Prensa hidráulica LASCO TSP 160 S
Presse hydraulique LASCO TSP 160 S
Hidraulična preša LASCO TSP 160 S
LASCO TSP 160 S Hidraulikus prés
Pressa idraulica LASCO TSP 160 S
LASCO TSP 160 S Hidraulinis presas
LASCO TSP 160 S Hydraulische pers
Prasa hydrauliczna LASCO TSP 160 S
Prensa hidráulica LASCO TSP 160 S
Presă hidraulică LASCO TSP 160 S
LASCO TSP 160 S Гидравлический пресс
Hidraulična presa LASCO TSP 160 S
LASCO TSP 160 S Hydraulpress
Hidrolik pres LASCO TSP 160 S
|

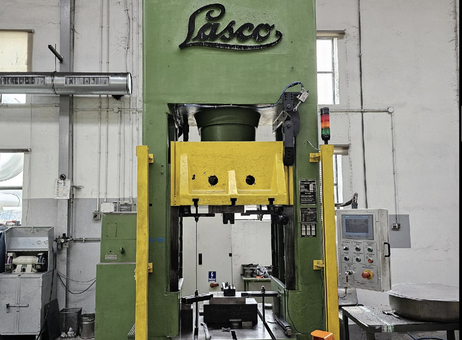

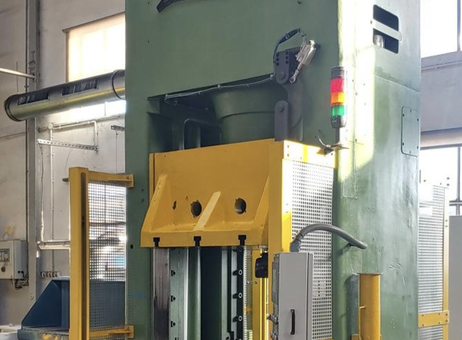

The Lasco TSP 160 S hydraulic forging press, with a pressing force of 160 tons, was manufactured by the German company Lasco Umformtechnik GmbH (Langenstein & Schemann A.G.). In 2019, the Lasco press underwent an upgrade of its control system and seals; safety barriers and a Siemens Simatic HMI touchscreen operator panel were added. The use of a Siemens Simatic S7 controller allowed the machine’s operation to be adapted for standard pressing, similar to that of a conventional hydraulic press. Originally, this press was intended primarily for die forging as well as metal stamping and forming operations, particularly for hot working of steel or aluminum components. The press also enabled operations such as calibrating forgings, trimming—cutting off flash—and re-forging parts after the forging process. The press achieves a maximum pressing force of 160 tons and a maximum ram return force of 15 tons. The maximum working stroke of the ram is 650 mm. The working element is a 2,100 kg drop weight, which generates an impact energy of 800 mkg. Thanks to the use of a 250 mm stroke pulling cushion, the machine can develop a maximum pulling force of 80 tons. Thanks to its design, the LASCO TSP 160 S press is used in forges and industrial plants involved in the production of forgings and metal components requiring forming with high impact energy. Following modernization, the press can operate as a multi-purpose stamping and punching machine.
Specifications of the Lasco TSP 160S press
- Maximum pressing force: 160 t
- Maximum return force: 15 t
- Maximum stroke of the upper table: 650 mm
- Drop weight: 2100 kg
- Impact energy: 800 mkg
- Maximum pulling force: 80 t
- Maximum ejector force: 24 t
- Pull cushion stroke: 250 mm
- Maximum energy (falling mass × drop height): 800 mkg
- Dimensions (height x width x depth): 5040 x 1450 x 1570 mm (including 350 mm below floor level)
- Weight: 22 t
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 425 |
| Last activity | Oct. 30, 2026 |
The Lasco TSP 160 S hydraulic forging press, with a pressing force of 160 tons, was manufactured by the German company Lasco Umformtechnik GmbH (Langenstein & Schemann A.G.). In 2019, the Lasco press underwent an upgrade of its control system and seals; safety barriers and a Siemens Simatic HMI touchscreen operator panel were added. The use of a Siemens Simatic S7 controller allowed the machine’s operation to be adapted for standard pressing, similar to that of a conventional hydraulic press. Originally, this press was intended primarily for die forging as well as metal stamping and forming operations, particularly for hot working of steel or aluminum components. The press also enabled operations such as calibrating forgings, trimming—cutting off flash—and re-forging parts after the forging process. The press achieves a maximum pressing force of 160 tons and a maximum ram return force of 15 tons. The maximum working stroke of the ram is 650 mm. The working element is a 2,100 kg drop weight, which generates an impact energy of 800 mkg. Thanks to the use of a 250 mm stroke pulling cushion, the machine can develop a maximum pulling force of 80 tons. Thanks to its design, the LASCO TSP 160 S press is used in forges and industrial plants involved in the production of forgings and metal components requiring forming with high impact energy. Following modernization, the press can operate as a multi-purpose stamping and punching machine.
Specifications of the Lasco TSP 160S press
- Maximum pressing force: 160 t
- Maximum return force: 15 t
- Maximum stroke of the upper table: 650 mm
- Drop weight: 2100 kg
- Impact energy: 800 mkg
- Maximum pulling force: 80 t
- Maximum ejector force: 24 t
- Pull cushion stroke: 250 mm
- Maximum energy (falling mass × drop height): 800 mkg
- Dimensions (height x width x depth): 5040 x 1450 x 1570 mm (including 350 mm below floor level)
- Weight: 22 t
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
