Contact us to receive an offer.
| Manufacturer | KUKA |
|---|---|
| Model | KR30-3 |
| Year | 2015 |
| Location | Poland
|
| Category | Robots |
| Application type | Welding |
| Number of axis | 6 |
| Reach in mm | 2033 mm |
| Payload in kgs | 30 kg |
| Control type | |
| Weight | 665 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 20/10/2026 |
| Product id | P240620018 |
| Language |
Индустриален робот KUKA KR30-3
Industrialní robot KUKA KR30-3
KUKA KR30-3 Industriel robot
KUKA KR30-3 Industrieroboter
Βιομηχανικό ρομπότ KUKA KR30-3
KUKA KR30-3 Industrial Robot
Robotica industrial KUKA KR30-3
Robot industriel KUKA KR30-3
Industrijski robot KUKA KR30-3
KUKA KR30-3 Ipari robot
Robot industriale KUKA KR30-3
Pramoninis robotas KUKA KR30-3
KUKA KR30-3 Industriële robot
Robot KUKA KR30-3
Robô Industrial KUKA KR30-3
Robot industrial KUKA KR30-3
KUKA KR30-3 Промышленный робот
Industrial Robot KUKA KR30-3
KUKA KR30-3 Industrirobot
Endüstriyel robot KUKA KR30-3
|

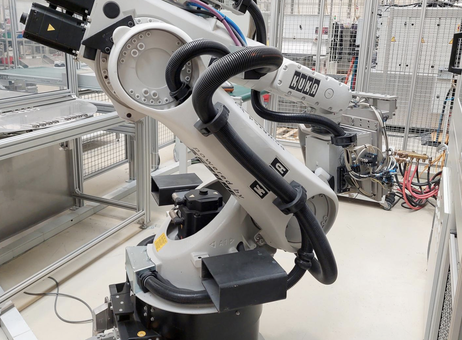

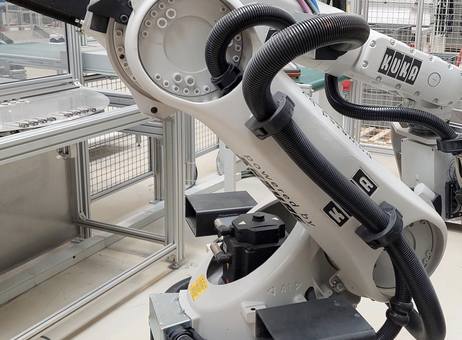

The KUKA KR30-3 is a versatile industrial robotic arm designed primarily for welding applications, manufactured in 2015. This 6-axis robot features a substantial reach of 2033 mm and can handle payloads up to 30 kg, making it suitable for a variety of tasks requiring precision and flexibility. With a total weight of 665 kg, the robot is robustly constructed and is mounted securely to the floor, ensuring stability during operation.
The arm is equipped with multiple black cables and pneumatic tubes that provide power and control to its servo-driven axes. Notably, the end-effector includes several mechanical parts and pneumatic connectors, allowing for diverse tooling options. The robot operates with high repeatability of 0.15 mm, supporting tasks that demand accuracy.
Axis movement ranges and speeds are optimized for dynamic and precise operations, with each of the six axes capable of wide angular motions and rapid speeds, enhancing cycle times and efficiency in production environments.

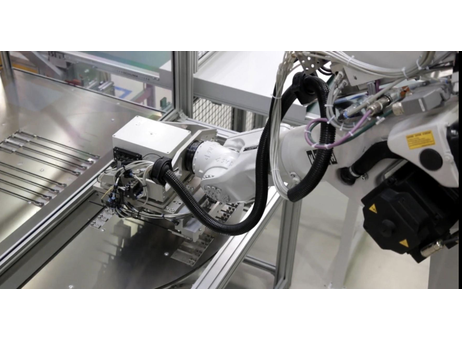

This unit has been used sporadically, primarily in conjunction with injection molding machines for handling and transferring injection molds. The robot appears clean and well-maintained, with no visible signs of damage or wear on the arm or its components. It is installed within a metal frame and safety fencing, highlighting adherence to operational safety standards.
Overall, the KUKA KR30-3 offers a reliable and adaptable solution for industrial automation tasks, especially in welding and material handling applications where high accuracy and repeatability are critical.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The KUKA KR30-3 industrial robot manufactured in 2015 is an excellent solution for many applications, such as moving, milling or welding details that require short cycle times and high accuracy. A small, modular arm with a large range of movement allows free operation in all positions, even in hard-to-reach places. Additionally, all 6 axes are driven by reliable servo motors to achieve excellent movement dynamics. This designed structure optimizes even the most intensive production processes, while maintaining the highest efficiency.
So far, the KUKA KR 30-3 robot arm has been used sporadically and has only worked a small number of hours. During this time, it cooperated with the injection molding machine to operate injection molds (collecting, transferring and depositing previously prepared cores). The 6-axis KUKA robot weighs 665 kg.
Technical data of the KUKA KR30-3 robot
- number of axles: 6
- arm reach: 2033 mm
- maximum load capacity: 30 kg
- range of axis movements
J1 axis: ± 185°
J2 axis: +35/-135°
J3 axis: +158/-120°
J4 axis: ± 350 °
J5 axis: ± 119°
J6 axis: ± 350°
- axis movement speed
J1 axis: 140°/s
J2 axis: 126°/s J3 axis
: 140°/s
J4 axis: 260°/s
J5 axis: 245° /s
J6 axis: 322°/s
- repeatability: 0.15 mm
- machine weight: 665 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
