| Manufacturer | Kuehni |
|---|---|
| Model | (finned tube heat exchanger) 6,3m² |
| Year | 1990 |
| Location | Netherlands
|

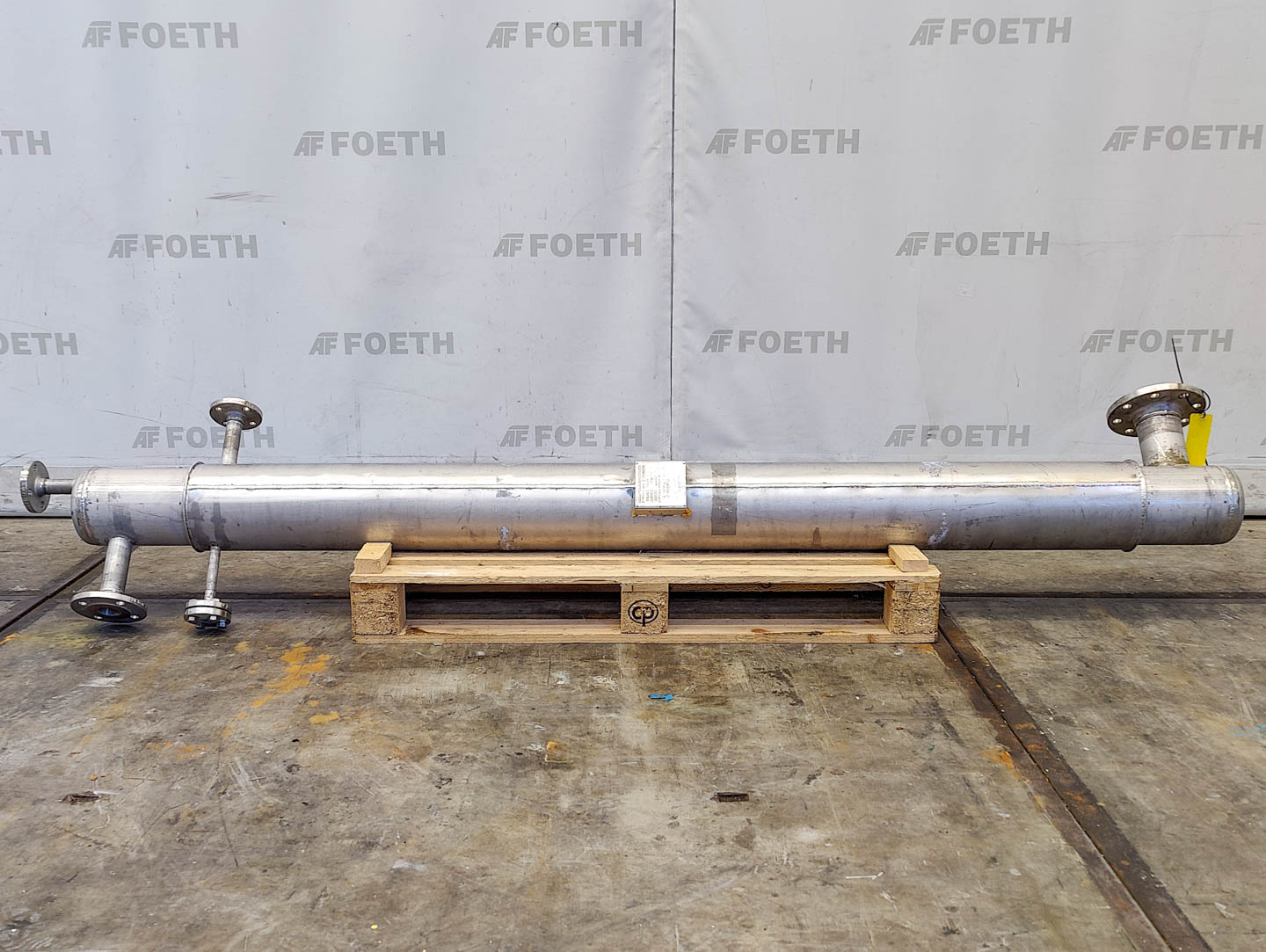

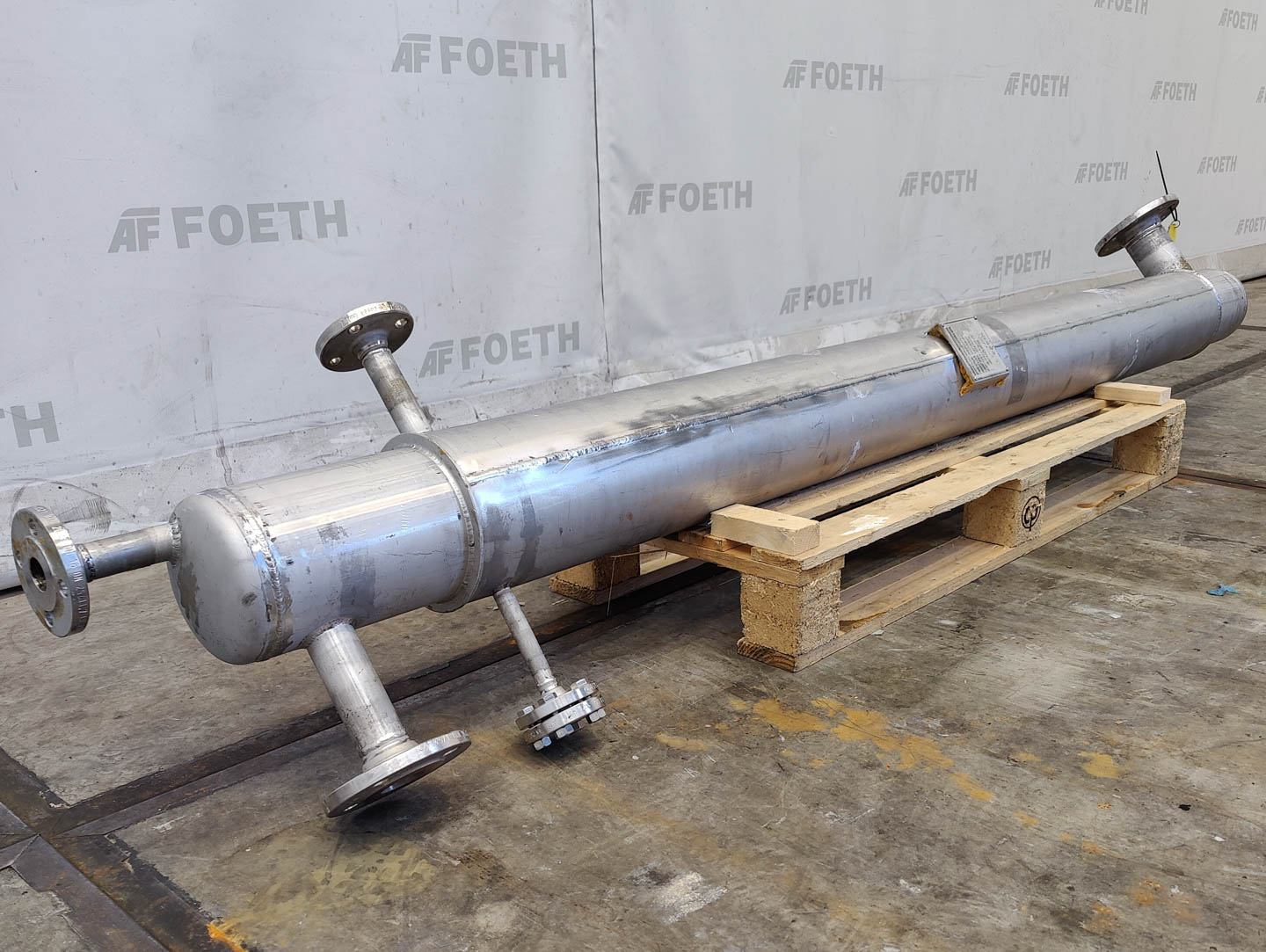

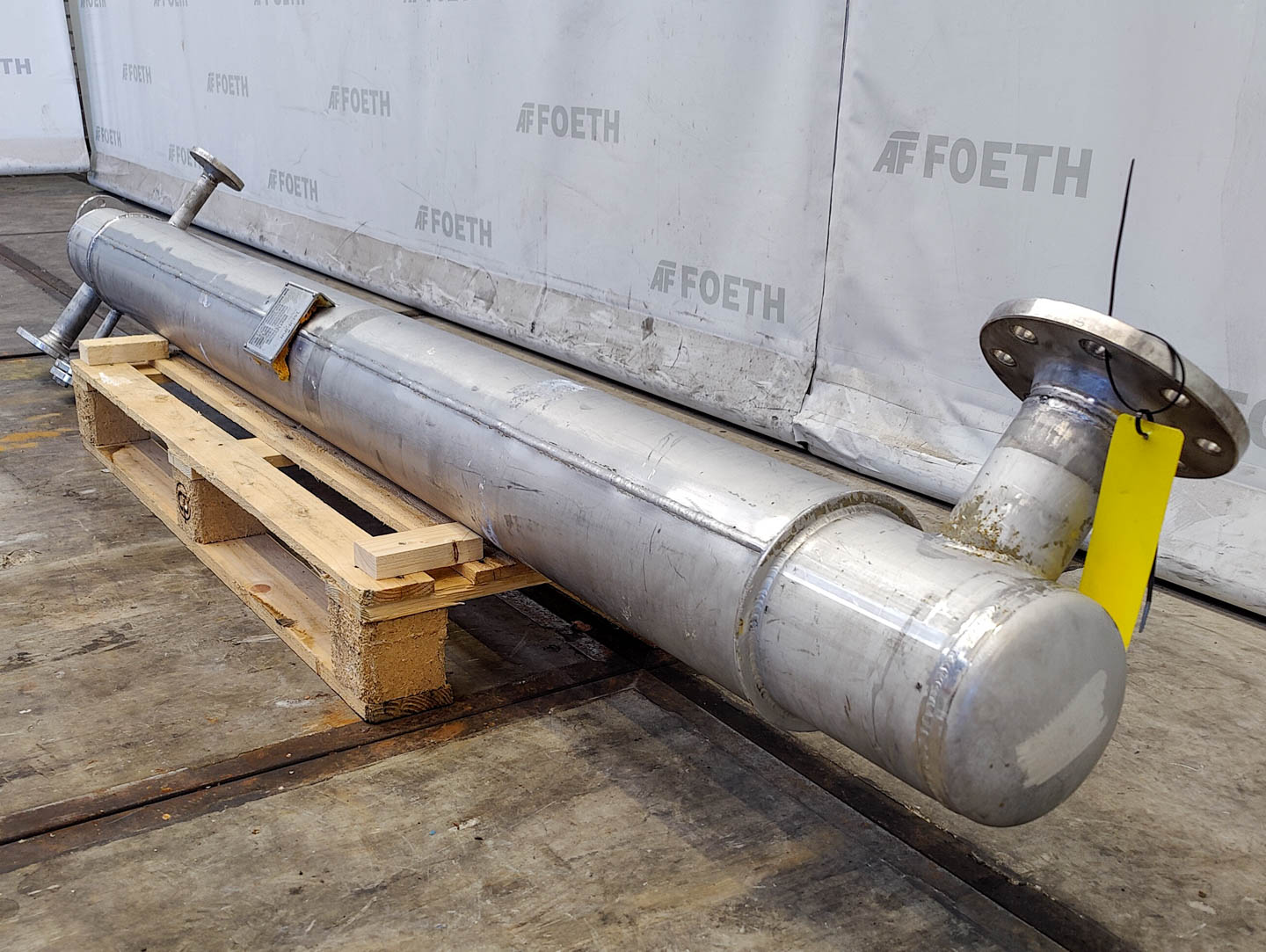

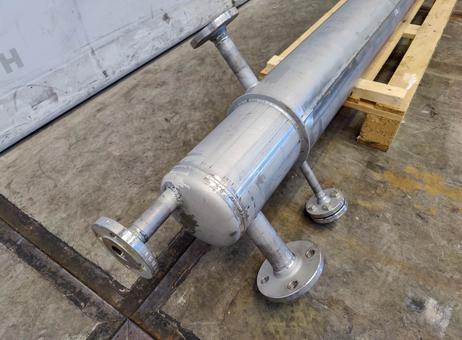

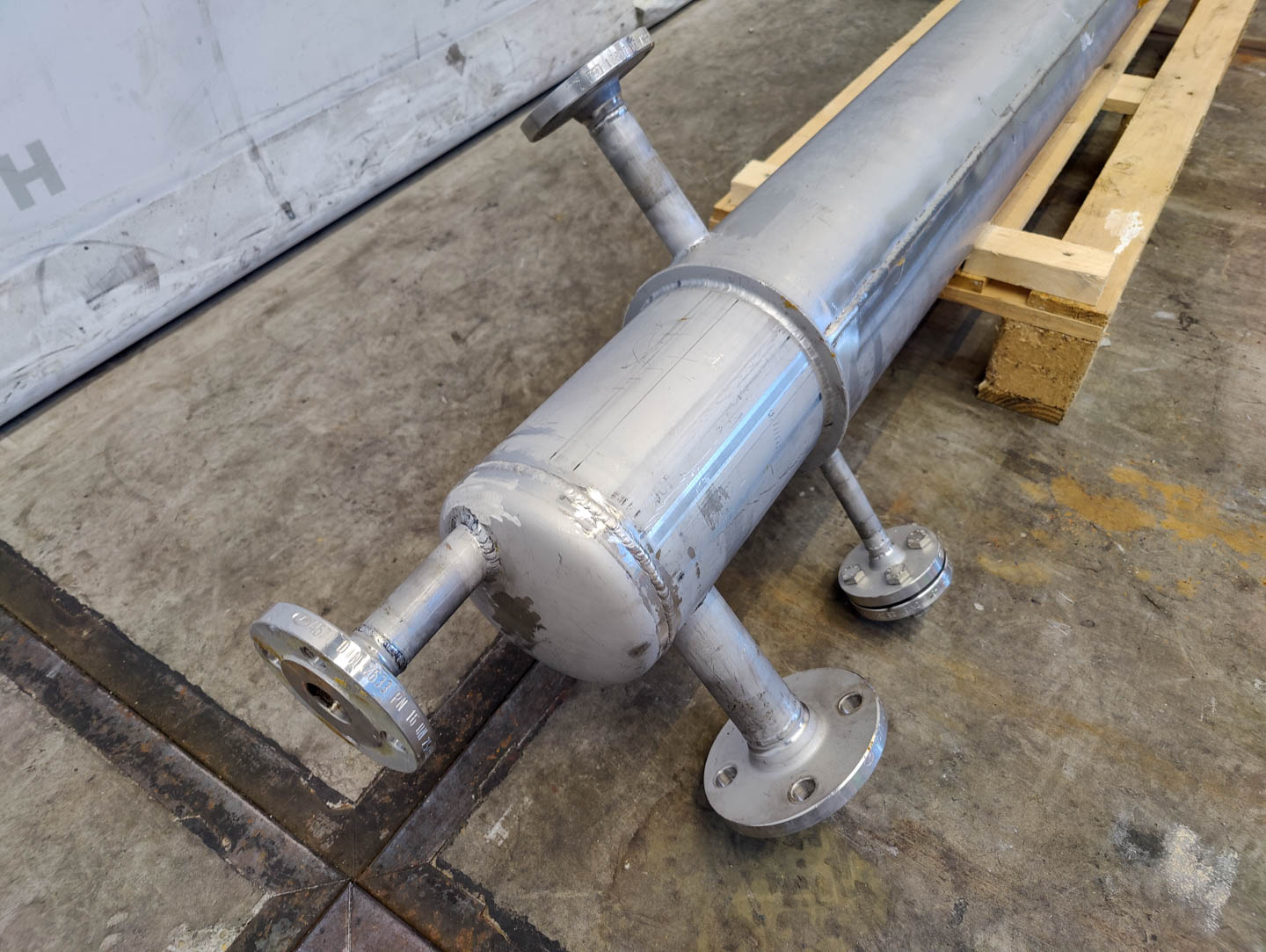

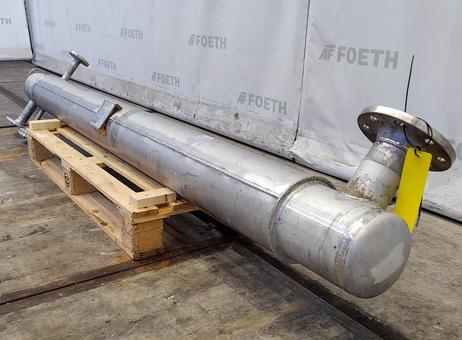

Kuehni horizontal shell-and-tube heat exchanger, model listed as “(finned tube heat exchanger) 6,3m².” The stated heating surface is 6.3 m². The shell and tube are both specified as stainless steel, with the material further identified as stainless steel 1.4571 (316Ti).
The exchanger has one tube, with a stated tube diameter of 30 mm and approximate tube length of 13.1 m. The tube capacity is 17.5 litres, and the shell capacity is 41 litres. The shell is specified as 190 mm in diameter and 2,490 mm long, with a wall thickness of 2.6 mm. Tube wall thickness is 2 mm.
Pressure specifications list a working pressure of 1 bar for the shell and 6 bar for the tubes. Vacuum is indicated as possible for the shell, the jacket and the tubular section. The maximum temperature is 200 °C.
Listed shell connections are DN 25 (two connections) and DN 15. Cover connections are DN 80 and DN 40. Overall dimensions are 2,600 mm long, 550 mm wide and 350 mm high. The stated weight is 160 kg. This listing describes the equipment and its stated specifications; no additional condition or operating-status information is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General
SKU: 212T550
Make: Kuehni
No.: 227480
Year of construction: 1990
Location: Barneveld
Pressure
Vacuum possible: ✓
Vacuum possible jacket: ✓
Working pressure shell: 1 Bar
Vacuum possible shell: ✓
Working pressure tubes: 6 Bar
Tubular vacuum possible: ✓
Main Features
Shell (Material): Stainless steel
Tube (Material): Stainless steel
Surface: 6.3 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Horizontal: ✓
Heating surface: 6.3 m²
Tube capacity: 17,5 Ltr.
Number of tubes:: 1
Tube diameter: 30 mm
Tube length: ± 13,1 m
Wall thickness tubes: 2 mm
Shell capacity: 41 Ltr.
Shell diameter: 190 mm
Shell length: 2490 mm
Wall thickness shell: 2,6 mm
Max. temperature: 200 °C
Shell connections: DN 25 (2x), DN 15
Cover connections: DN 80, DN 40
Material: Stainless steel 1.4571 (316Ti)
General
Floorspace: 2,6x0,55 m
Total height: 0,35 m
Weight: 160 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
