| Manufacturer | Krieger |
|---|---|
| Model | Fondo Mat Universal 500 |
| Year | 1975 |
| Location | France
|
Manufacturer: Oskar Krieger Maschinen
Model: Fondo Mat Universal 500
Year of Manufacture: 1975
This industrial melter and process vessel is designed for mixing and processing applications, featuring a total vessel capacity of 700 liters with a useful capacity of 500 liters and a capacity up to the tank rim of 615 liters. The vessel is capable of operating under a pressure range from vacuum (-1 bar) up to 3 bar and can handle temperatures up to 130°C, with a maximum temperature rating of 140°C for the system. The mixing speed is 705 rpm, providing efficient agitation for various materials.
The vessel includes a vacuum and pressure-tight lid rated for -1 to +1 bar and a filling port diameter of DN200. It is equipped with a stainless steel coil suitable for liquid and/or steam heating, and the jacket surrounding the vessel has a capacity of 68 liters, designed to operate at pressures up to 6 bar and temperatures up to 160°C. The jacket is insulated with a thickness of 45 mm to maintain temperature stability.
The machine is fitted with a hydraulic unit for up/down movement and a mixing head that rotates manually. The recommended drain valve size is DN40. The overall weight of the equipment is approximately 1520 kg.

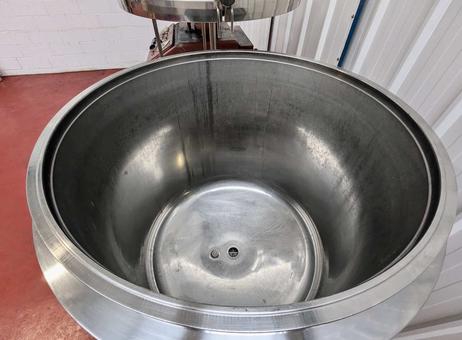

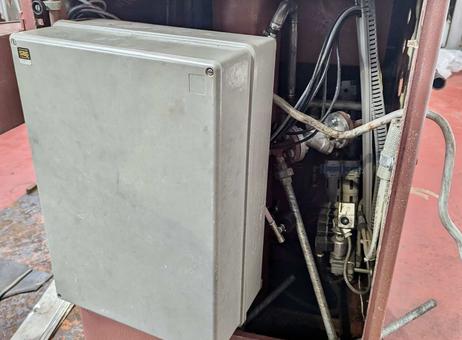

From the visual inspection, the mixer features a red control panel with various buttons and a dial located on the left side of the machine. The motor is mounted on top of the mixing head, and a pressure gauge is visible on the mixing head, allowing for monitoring of operating conditions. The mixing container is made of stainless steel and is mounted on wheels for mobility. The base of the machine shows signs of rust and wear, which should be considered when evaluating the equipment.
This mixer can be combined with compatible equipment such as the Krieger AMS 500 reaction vessel (605 L capacity). Technical documentation is available for further reference.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer : Oskar Krieger Maschinen
Model: Fondo Mat Universal 500
Year : 1975
Type: Melter / process vessel
Classification: ATEX
Up/down: hydraulic unit
Mixing head rotation: manual
Stainless steel coil: liquid and/or steam
Mixing: 705 rpm
Vacuum and pressure tight lid :
-1 / +1 bar
Maximum temperature: 140°C
diameter of filling port: DN200
Vessel :
total capacity: 700L
useful capacity: 500L
capacity up to tank rim: 615 L
pressure: -1 / 3 bar
temperature: 130°C
recommended drain valve size: DN40
Jacketed :
capacity: 68 L
pressure: 6 bar
temperature: 160°C
insulation thickness: 45mm
Weight: 1520 kg
Can be combined with the following equipment: https://www.osertech.eu/produit/krieger-ams-500-cuve-de-reaction-process-605-l/
Technical documentation available.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
