| Manufacturer | Krauss Maffei |
|---|---|
| Model | KM350 /1900 C2 |
| Year | 2005 |
| Location | Germany
|
This Krauss Maffei KM350 /1900 C2 injection molding machine, manufactured in 2005, offers a clamping force of 350 tons (3,500 kN) suitable for various molding applications. It features a fully hydraulic 2-pallet clamping system with a platen size of 1060 mm length by 950 mm width and tie bar spacing of 710 mm both horizontally and vertically. The mold opening stroke is 920 mm, with a minimum mold installation height of 380 mm and a maximum tool weight capacity of 4,780 kg. The ejector system has a stroke of 250 mm and forces of 95 kN forward and 48 kN in reverse. The machine's dimensions are approximately 6510 mm in length, 2040 mm in width, and 2380 mm in height, with a net weight including the control cabinet of about 16,000 kg.
The injection unit includes a 70 mm diameter screw with a working capacity of 1900 cm³ and a shot weight of 953 g for polystyrene. Injection pressure is 1.778 bar, with an injection flow rate of 527 cm³/s. The screw speed is adjustable with standard and optional stages, driven by motors rated at 95 hp and 117 hp respectively. The plasticizing unit is designed for thermoplastics with wear-resistant features and includes a non-return valve and open nozzle with a bore diameter of 6.00 mm and a nozzle radius of 15.00 mm. Heating is controlled through six zones with an installed heating capacity of 30 kW.
The machine incorporates a MC4 32-bit microprocessor control system with an integrated control panel featuring a TFT color screen and a 3.5-inch floppy disk drive for data backup. It operates with a pump motor rated at 75 kW and has an oil capacity of 720 liters.

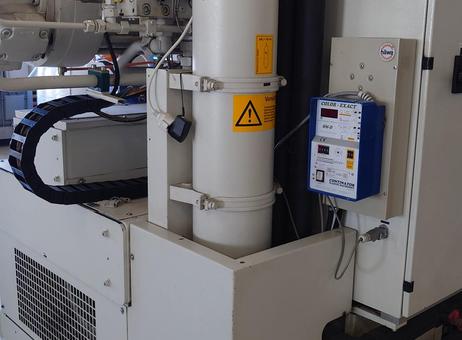

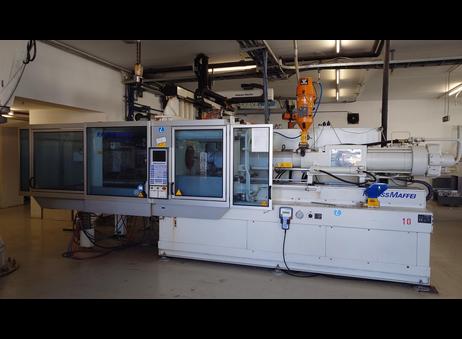

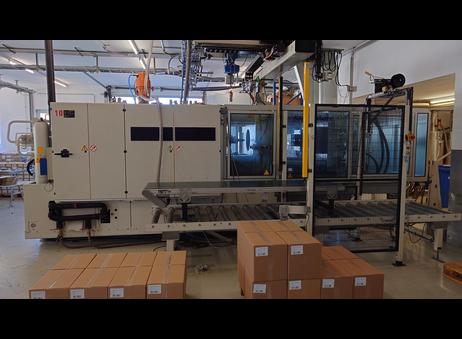

Visible components include a control panel with screen and multiple buttons located on the front left side, and a large orange hopper mounted on top for material feeding. A robotic arm or automated handling equipment is attached above the machine, enhancing automation capabilities. A conveyor system with a protective safety enclosure is installed on the machine's right side for output handling. Various pipes and cables are connected around the machine, likely for hydraulic, pneumatic, and cooling functions. Safety features such as an emergency stop button and warning labels are present. The machine appears clean and well-maintained with no visible damage, showing minor signs of use. Additionally, a control box labeled 'COLOR-EXACT' is attached, possibly for color control during the molding process.
This comprehensive setup makes the Krauss Maffei KM350 /1900 C2 a robust and versatile injection molding machine suitable for demanding industrial production environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Technical details
Injection Molding Machine
Manufacturer: Krauss Maffei
Type: KM350 /1900 C2
Year of Manufacture: 2005
Clamping Force: 3.500 kN
Mold Opening Force: 220 kN
Moving Platen Travel Force:
Open: 105 kN
Close: 95 kN
Plate Size (H x V): 1.060 x .,095 mm
Clear Opening (H x V): 710 x 710 mm
Mold Opening Stroke: 920 mm
Minimum Mold Installation Height: 380 mm
Capping Width: 1.300 mm
Ejector Stroke: 250 mm
Ejector Force (forward/reverse): 95 / 48 kN
Pump Motor: 75 kW
Installed Heating Capacity: 30 kW
Cylinder Heating Control Zones: 6
Dry Run Count: 1.550 1/h
Oil capacity: 720 liters
Dimensions and weights:
Net weight with control cabinet: approx. 16.0 tons
L/W/H: 6.510 x 2.040 x 2.380 mm
Maximum tool weight: 4.780 kg
Injection unit:
Working capacity: 1900
Screw diameter: 70 mm
Injection pressure: 1.778 bar
Stroke volume: 1.047 cm³
Shot weight for PS: 953 g
Injection flow: 527 cm³/s
Screw speed standard / option: 285/349 rpm
Screw speed standard or stage 1: 95 hp
Screw speed option or stage 2: 117 hp
Nozzle clamping force: 82 kN
Fully hydraulic 2-pallet clamping system
PV control for injection unit
MC4 32-bit microprocessor control
Integrated control panel with
TFT color screen and
3.5-inch floppy disk drive for data backup
Plasticizing:
1 complete Thermoplastic plasticizing in wear-resistant design
Screw diameter 70 mm with
non-return valve and open nozzle
Nozzle radius: 15.00 mm
Nozzle bore: 6.00 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
