| Manufacturer | Krauss Maffei |
|---|---|
| Model | KM-420-2300B2/90 |
| Year | 1989 |
| Location | Germany
|

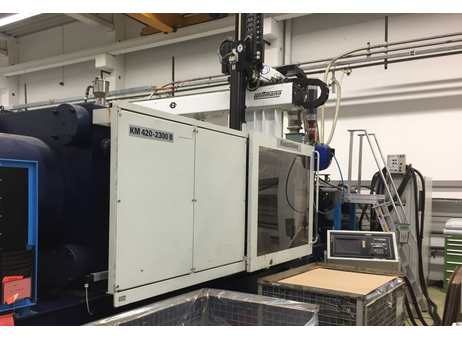

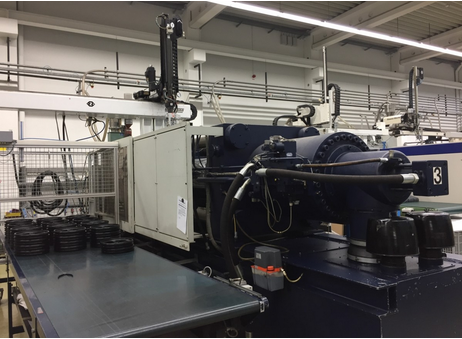

This Krauss Maffei KM-420-2300B2/90 horizontal injection molding machine, manufactured in 1989, offers robust performance with a clamping force of 420 tons (4200 kN). It features a screw diameter of 90 mm and an injection volume ranging from 572 to 1716 cm³, supporting a maximum injection weight of 1631 grams. The machine operates with a maximum injection pressure of 1284 bar and a maximum temperature release of 400°C. The platen dimensions measure 1040 x 1040 mm, providing ample space for tooling, with a clear rail width of 740 x 670 mm. The machine includes a hydraulic clamping unit and a core pull/eject program supporting two core pulls, enhancing mold complexity and part ejection capabilities. Its installation height ranges from 400 to 1020 mm, with a tool stroke of 620 mm at minimum installation height. The machine weighs approximately 26,000 kg and is controlled via an MC3 control system. Operating hours are noted at 128,500 h. For handling and automation, it is equipped with a Wittmann W633 robotic arm featuring X, Y, Z, B, and C axes, along with suction and compressed air connections (2 vacuum and 4 pneumatic). The machine's exterior shows typical signs of use but no major damage or rust, and the surrounding area appears clean and well-maintained. Visible components include a large material hopper on top, a control panel with buttons and a display screen on the right side, hydraulic cylinders and hoses, and a safety cage for operator protection. A metal table beside the machine holds multiple molded parts, indicating its operational setup.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Horizontal injection molding machine
- Operating hours: 128,500 h
- Machine control: MC3
- Screw diameter: 90 mm
- Injection volume: 572 - 1716 cm³
- Max injection weight: 1631 g/hp
- Clear rail width: 740 x 670 mm
- clamping plates: 1040 x 1040 mm
- Number of bars: 4
- Installation height min.-max.: 400 - 1020 mm
- Tool stroke at min. installation height: 620 mm
- Injection pressure max.: 1284 bar
- Max. closing force: 4200 kN
- Temperature release max.: 400°C
- Hydraulic clamping unit
- Core pull/eject program
- Number of core pulls: 2
- Approx. weight: 26 t
Handling:
- Wittman W633
- Year of construction: 2003
- Axes: X, Y, Z, B, C
- Suction and compressed air connections: 2 vac./4 pneu.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
