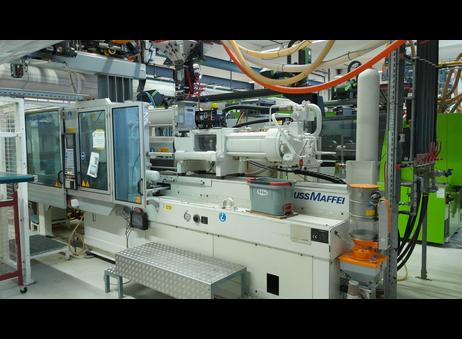

Krauss Maffei KM 300/1400 C2 — Injection Molding Machine

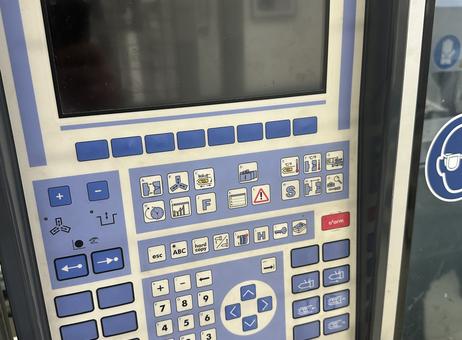

Overview This Krauss Maffei KM 300/1400 C2 injection molding machine is a 300 t clamping force model from 2005. It is equipped with the MC4 control system and an installed power rating of 110 (unit as listed). The machine color is listed as white. No special multi-shot (2K/GIT/Tandem) features are indicated.
Clamping unit - Clamping mechanism: hydraulic - Magnet system: No - Minimum mold height: 330 mm - Maximum mold opening stroke: 1150 mm - Minimum allowable mold diameter (h x v): 441 mm - Maximum mould/tool weight: 3430 kg - Horizontal and vertical spindle spacing: 630 mm each - Clamping plate overall size (h x v): 995 x 1050 mm - Centering flange diameters: A-side 120 mm, B-side 160 mm - Thread in clamping plates / ejector plate: M20 - Ejector connection: rigid coupling - Maximum ejector stroke: 200 mm - Maximum ejector pin projection on mold: 720 mm - Mold opening force: 160 kN - Plaston standard mold clamping value listed: 5990
Injection unit - Screw diameter: 60 mm, L/D ratio 21, screw type: standard - Check valve type: multi-ball - Shot volumes (listed): minimum calculation 119 cm³; calculation 3.3d/4.3d 560 cm³; maximum shot volume 679 cm³ - Calculated maximum shot weights: PS 618 g, HDPE 482 g - Maximum plasticizing stroke (calculated): 240 mm - Maximum hydraulic system pressure: 180 bar - Maximum injection pressure: 2000 bar - Maximum nozzle force: 110 kN - Maximum injection speed: 300 mm/s - Maximum injection rate (listed): 848 cm³/s - Screw drive: hydraulic

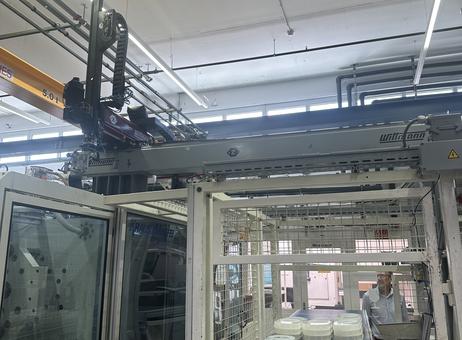

Robot system (Wittmann) - Commissioning: 2003 - A-axis: No - B-axis: Yes (pneumatic), max rotation 180° - C-axis: Yes (pneumatic), max rotation 90° - X / Y / Z max strokes: 550 / 1200 / 2530 mm - Vacuum circuits: 2; Pressure circuits: 2 - Maximum part/handling weight: 15 kg

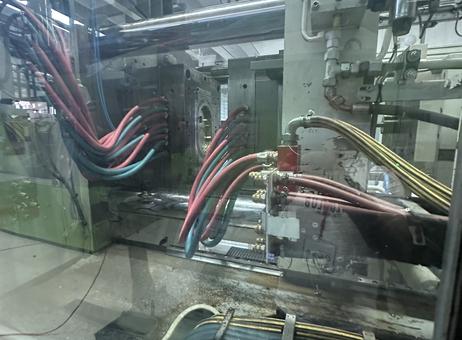

Connections and interfaces - Number of hot runner controls (station/gate): 8 - Air ejectors A-side / B-side: 0 / 2 - Pneumatic connection (Plaston standard): Z81/9/R1/8 - Pneumatic shut-off nozzle (hot runner): Yes, controlled - Hydraulic shut-off nozzle (hot runner): No - Freely programmable core pulls: Yes (1 / 1 A-side / B-side) - Hydraulic connection for mold (Plaston standard): Stäubli / 6104 - Stäubli cooling coil connection: No - Coolant connections A-side / B-side: 4 / 4 - Continuous coolant connection: No
Special equipment and features - Machine start switch: Yes - Parallel movement: Yes - Pressure accumulator: Yes - Mold heating interface: No - IML ionization unit: No - Injection stamping: No - Ejector plate control: No - Cavity pressure sensor: No - Interface: Custom design
Notes All technical details above are taken from the provided equipment specification. No additional condition, testing status, serial number, location, or seller information is included.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Seller's description
Injection Molding Machine | Manufacturer | | Krauss Maffei | | Clamping Force | [t] | 300 | | Machine Model | | KM 300/1400 C2 | | Year of Manufacture | | 2005 | | Color | | white | | Special features (2K / GIT / Tandem / …) | | No | | Control system (type) | | MC4 | | Installed power | | 110 | | Machine weight | [t] | - |
Clamping unit | Magnet system | | No | | Clamping mechanism | | hydraulic | | Min. mold height h | [mm] | 330 | | Max. mold height h | [mm] | - | | Max. mold opening stroke | [mm] | 1150 | | Min. allowable mold diameter h x v | [mm] | 441 | | Max. tool weight | [kg] | 3430 | | Horizontal spindle spacing | [mm] | 630 | | Vertical spindle spacing | [mm] | 630 | | Overall size of the clamping plate (h x v) | [mm] | 995 x 1050 | | Distance from center to step on safety plate | [mm] | - | | Centering flange diameter (A-side) | [mm] | 120 | | Centering flange Ø (B-side) | [mm] | 160 | | Thread in clamping plate SG | | M20 | | Ejector connection | | Rigid coupling | | Max. ejector stroke | [mm] | 200 | | Max. ejector pin on mold | [mm] | 720 | | Thread Ø in SG ejector plate | | M20 | | Ejector force forward 58 / reverse 28 | [kN] | | | Mold opening force | [kN] | 160 | | Plaston standard adapter plate | | - | | Plaston standard mold clamping | | 5990 | | Oil volume | | |
| Number of SG hot runner controls | | 8 | | Air ejectors (A-side / B-side) | | 0 / 2 | | Pneumatic connection / Plaston standard | [Type] | Z81/9/R1/8 | | Pneumatic shut-off nozzle (hot runner) | | Yes, controlled | | Hydraulic shut-off nozzle (hot runner) | | No | | Hydraulic shut-off nozzle (cylinder) | | - | | Freely programmable core pulls | | Yes | | Number of core pulls SG (A-side / B-side) | | 1 / 1 | | Hydraulic connection for mold / Plaston standard | [Type] | Stäubli / 6104 | | Stäubli cooling coil connection | | No | | Number of coolant connections SG (A-side / B-side) | | 4 / 4 | | Number of heating connections SG (A-side / B-side) | | - | | Continuous coolant connection SG | | No | | Number of mold heating connections permanently attached to SG | | | Special Equipment/Features
| Machine start switch | | Yes | | Parallel movement | | Yes | | Mold heating interface | | No | | IML ionization unit | | No | | Injection stamping | | No | | Ejector plate control | | No | | Ejector plate control up to | | - | | Ejector plate control up to 3 | | - | | Pressure accumulator | | Yes | | Cavity pressure sensor | | No | | Robot interface | | - | | Interface | | Custom design |
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Client type
Machinery dealer
Active since
2026
Offers online
1
Last activity
July 14, 2026
Seller's description
Injection Molding Machine | Manufacturer | | Krauss Maffei | | Clamping Force | [t] | 300 | | Machine Model | | KM 300/1400 C2 | | Year of Manufacture | | 2005 | | Color | | white | | Special features (2K / GIT / Tandem / …) | | No | | Control system (type) | | MC4 | | Installed power | | 110 | | Machine weight | [t] | - |
Clamping unit | Magnet system | | No | | Clamping mechanism | | hydraulic | | Min. mold height h | [mm] | 330 | | Max. mold height h | [mm] | - | | Max. mold opening stroke | [mm] | 1150 | | Min. allowable mold diameter h x v | [mm] | 441 | | Max. tool weight | [kg] | 3430 | | Horizontal spindle spacing | [mm] | 630 | | Vertical spindle spacing | [mm] | 630 | | Overall size of the clamping plate (h x v) | [mm] | 995 x 1050 | | Distance from center to step on safety plate | [mm] | - | | Centering flange diameter (A-side) | [mm] | 120 | | Centering flange Ø (B-side) | [mm] | 160 | | Thread in clamping plate SG | | M20 | | Ejector connection | | Rigid coupling | | Max. ejector stroke | [mm] | 200 | | Max. ejector pin on mold | [mm] | 720 | | Thread Ø in SG ejector plate | | M20 | | Ejector force forward 58 / reverse 28 | [kN] | | | Mold opening force | [kN] | 160 | | Plaston standard adapter plate | | - | | Plaston standard mold clamping | | 5990 | | Oil volume | | |
| Number of SG hot runner controls | | 8 | | Air ejectors (A-side / B-side) | | 0 / 2 | | Pneumatic connection / Plaston standard | [Type] | Z81/9/R1/8 | | Pneumatic shut-off nozzle (hot runner) | | Yes, controlled | | Hydraulic shut-off nozzle (hot runner) | | No | | Hydraulic shut-off nozzle (cylinder) | | - | | Freely programmable core pulls | | Yes | | Number of core pulls SG (A-side / B-side) | | 1 / 1 | | Hydraulic connection for mold / Plaston standard | [Type] | Stäubli / 6104 | | Stäubli cooling coil connection | | No | | Number of coolant connections SG (A-side / B-side) | | 4 / 4 | | Number of heating connections SG (A-side / B-side) | | - | | Continuous coolant connection SG | | No | | Number of mold heating connections permanently attached to SG | | | Special Equipment/Features
| Machine start switch | | Yes | | Parallel movement | | Yes | | Mold heating interface | | No | | IML ionization unit | | No | | Injection stamping | | No | | Ejector plate control | | No | | Ejector plate control up to | | - | | Ejector plate control up to 3 | | - | | Pressure accumulator | | Yes | | Cavity pressure sensor | | No | | Robot interface | | - | | Interface | | Custom design |
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Krauss Maffei KM 300/1400 C2 — Injection Molding Machine
Overview This Krauss Maffei KM 300/1400 C2 injection molding machine is a 300 t clamping force model from 2005. It is equipped with the MC4 control system and an installed power rating of 110 (unit as listed). The machine color is listed as white. No special multi-shot (2K/GIT/Tandem) features are indicated.
Clamping unit - Clamping mechanism: hydraulic - Magnet system: No - Minimum mold height: 330 mm - Maximum mold opening stroke: 1150 mm - Minimum allowable mold diameter (h x v): 441 mm - Maximum mould/tool weight: 3430 kg - Horizontal and vertical spindle spacing: 630 mm each - Clamping plate overall size (h x v): 995 x 1050 mm - Centering flange diameters: A-side 120 mm, B-side 160 mm - Thread in clamping plates / ejector plate: M20 - Ejector connection: rigid coupling - Maximum ejector stroke: 200 mm - Maximum ejector pin projection on mold: 720 mm - Mold opening force: 160 kN - Plaston standard mold clamping value listed: 5990
Injection unit - Screw diameter: 60 mm, L/D ratio 21, screw type: standard - Check valve type: multi-ball - Shot volumes (listed): minimum calculation 119 cm³; calculation 3.3d/4.3d 560 cm³; maximum shot volume 679 cm³ - Calculated maximum shot weights: PS 618 g, HDPE 482 g - Maximum plasticizing stroke (calculated): 240 mm - Maximum hydraulic system pressure: 180 bar - Maximum injection pressure: 2000 bar - Maximum nozzle force: 110 kN - Maximum injection speed: 300 mm/s - Maximum injection rate (listed): 848 cm³/s - Screw drive: hydraulic
Robot system (Wittmann) - Commissioning: 2003 - A-axis: No - B-axis: Yes (pneumatic), max rotation 180° - C-axis: Yes (pneumatic), max rotation 90° - X / Y / Z max strokes: 550 / 1200 / 2530 mm - Vacuum circuits: 2; Pressure circuits: 2 - Maximum part/handling weight: 15 kg
Connections and interfaces - Number of hot runner controls (station/gate): 8 - Air ejectors A-side / B-side: 0 / 2 - Pneumatic connection (Plaston standard): Z81/9/R1/8 - Pneumatic shut-off nozzle (hot runner): Yes, controlled - Hydraulic shut-off nozzle (hot runner): No - Freely programmable core pulls: Yes (1 / 1 A-side / B-side) - Hydraulic connection for mold (Plaston standard): Stäubli / 6104 - Stäubli cooling coil connection: No - Coolant connections A-side / B-side: 4 / 4 - Continuous coolant connection: No
Special equipment and features - Machine start switch: Yes - Parallel movement: Yes - Pressure accumulator: Yes - Mold heating interface: No - IML ionization unit: No - Injection stamping: No - Ejector plate control: No - Cavity pressure sensor: No - Interface: Custom design
Notes All technical details above are taken from the provided equipment specification. No additional condition, testing status, serial number, location, or seller information is included.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
