900,000 €
Make an offer| ------------------- | |
| Length x width x height | 8600.0 × 5900.0 × 9300.0 |
| Weight | 658000 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | no |
| status | visible |
| Last availability date | 27/02/2026 |
This Kramatorsk NKMZ 6300 mechanical forging press offers a rated capacity of 6300 tons, designed for heavy-duty industrial forging applications. The press features a slide stroke of 460 mm and operates at a rate of 40 strokes per minute continuously, allowing for efficient and powerful forging cycles. The shut height measures 1150 mm, with an adjustable distance of 15 mm between the table and slide to accommodate various workpiece sizes.
The table working surface spans 1600 mm in length and 1900 mm in width, providing a substantial area for tooling and material placement. The slide dimensions are 1680 mm by 1680 mm, facilitating large-scale forging operations. Ejection capabilities include a top ejector stroke of 100 mm and a bottom ejector stroke of 230 mm, enhancing part removal efficiency. The uprights have clear openings measuring 1100 mm in width and 1250 mm in height, allowing for versatile die setups.
Powered by a main drive motor of 400 kW, this press has overall dimensions of 8600 mm in length, 5900 mm in width, and 9300 mm in height, with a substantial weight of 658,000 kg, reflecting its robust construction.

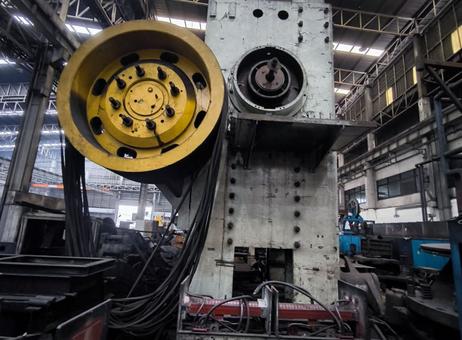

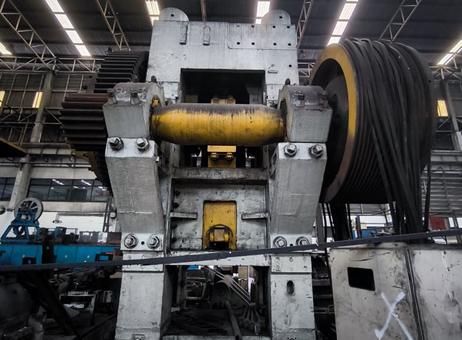

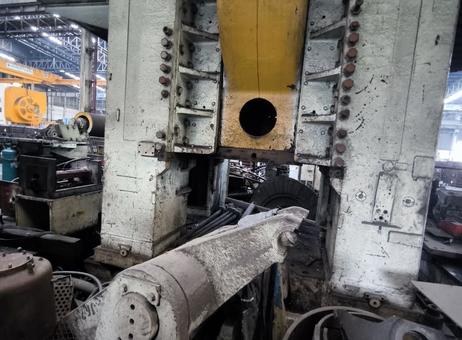

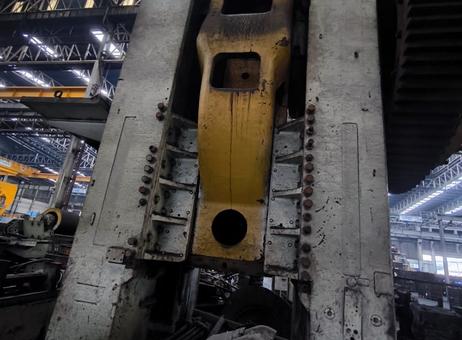

The machine is constructed with a white frame structure and a yellow central ram. Visible bolted joints are present on the sides of the frame, indicating modular assembly. The press includes a large yellow horizontal connecting rod between the two vertical columns and a sizeable flywheel with multiple grooves on the right side. A large gear with teeth is visible on the left side behind the frame, and an exposed gear mechanism is located behind the flywheel. Hydraulic or pneumatic cylinders are installed at the bottom front of the machine.
The press shows signs of wear and dirt accumulation, consistent with heavy industrial use. A warning label is present on the front lower part of the machine, emphasizing safety considerations. The machine is situated in an indoor industrial environment, surrounded by other machinery and metal parts.
This Kramatorsk NKMZ 6300 forging press is suitable for demanding forging tasks requiring high tonnage and reliable mechanical operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Forging press Kramatorsk NKMZ 6300 - 6300 ton
Model: Kramatorsk 6300
Rated capacity: 6300 ton
Slide stroke: 460 mm
Slide strokes per minute (continuous): 40
Shut height: 1150 mm
Adjustable distance between table and slide: 15 mm
Distance between uprights clear: 1950 mm
Table working surface:
L-to-R: 1600 mm
F-to-B: 1900 mm
Slide dimensions:
L-to-R: 1680 mm
F-to-B: 1680 mm
Top ejector stroke: 100 mm
Bottom ejector stroke: 230 mm
Uprights openings dimensions:
Width: 1100 mm
Height: 1250 mm
Main drive motor power: 400 kW
Overall dimensions:
L-to-R: 8600 mm
F-to-B: 5900 mm
Height above floor level: 9300 mm
Weight: 658 ton
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Consultant / Intermediary |
| Active since | 2025 |
| Offers online | 1 |
| Last activity | April 7, 2026 |
