Contact us to receive an offer.
| Manufacturer | Kraft |
|---|---|
| Model | 5-1000x8000 |
| Year | 2018 |
| Location | Germany
|

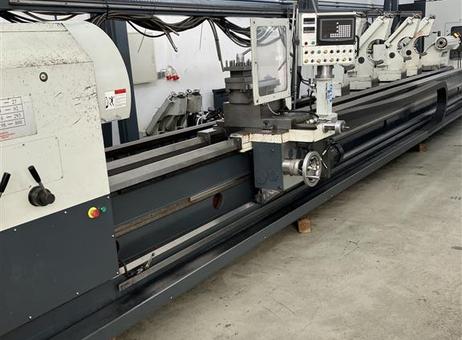

This Kraft 5-1000x8000 heavy-duty lathe, manufactured in 2018, is designed for versatile applications including pipe processing, single-part and series production, as well as mechanical and plant engineering. It accommodates workpieces up to 8,000 mm in length with a maximum turning diameter above the bed of 1,000 mm and a diameter above the traversing slide of 710 mm.
The machine features a massive one-piece cast bed for high strength and stress-free operation, complemented by hardened and ground guideways with five precise guides to ensure exact movement and durability. It is powered by a 30 kW spindle motor delivering a maximum spindle speed of 6,800 rpm. The spindle bore measures 155 mm.
This lathe does not include CNC control and is operated manually, with handwheel controls on the front carriage for precise adjustments. The tool setup includes multiple tool holders mounted along the lathe bed, allowing for flexible machining operations. A protective transparent shield is installed near the tool head area to enhance operator safety.
The machine's footprint measures 10,800 mm in length, 2,000 mm in width, and 1,600 mm in height, with a net weight of 18,200 kg. The lathe appears clean and well-maintained with no visible rust or damage, indicating careful upkeep.
Overall, the Kraft 5-1000x8000 is a robust and reliable manual lathe suitable for heavy-duty industrial machining tasks requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: Kraft 5-1000x8000 Lathe
Manufacturer: Kraft
Model: 5-1000x8000
Year of Manufacture: 2018
Technical Condition: As-is, where-is
Key Features:
- Precision, smooth running, and maximum flexibility for workpieces up to 8 meters in length
- Massive machine bed cast in one piece for high strength and stress-free operation
- Hardened and ground guideways with five precise guides for exact movement and durability
- Infinitely variable speed and feed control with a main drive of 30 kW and frequency converter
- Smooth and low-maintenance feed technology, ideal for flexible applications
- Comfortable tailstock, electrically movable and hydraulically clamped, with manual quill adjustment
- Manual 4-way tool holder that quickly swivels for various machining steps
- Steady rest solutions including fixed steady rests with motorized feed and hydraulic clamping
- Traveling steady rests can be mounted on either side as an option
Technical Specifications:
- Swivel Bed: 1,000 mm
- Swiveling Cross Slide: 710 mm
- Tip Height: 500 mm
- Distance Between Tips: 8,000 mm
- Bed Width: 900 mm with 4 guideways
- Width of Cross Slide: 350 mm
Headstock:
- Spindle Bore / Spindle Nose: Ø 155 mm (A2-11)
- Spindle Speed Range: 6–800 rpm
- Spindle Speed Settings: 4 settings, continuously variable
I.) 5–27 rpm
II.) 18–92 rpm
III.) 58–293 rpm
IV.) 198–800 rpm
- Main Motor: 40 hp (with inverter)
Sled & Apron:
- Travel of Cross Slide (X): 340 mm
- Travel of Cross Slide (Y): 225 mm
- Rapid Traverse in Z-Direction: 3,500 mm/min
Tailstock:
- Spindle Diameter: 165 mm (rotating)
- Spindle Travel: 250 mm
- Centering Mount: Morse Taper MT #6
Tool Holder:
- 4-way Tool Shank: Ø 32 mm
- Feed Ball Screw: Ø 63 mm x pitch 10 mm, accuracy C5 (or higher if required)
- Longitudinal Feed Rates (Z): 0.09–0.52 mm/rev
Weight:
- Net Weight: 18,200 kg
- Gross Weight: 18,500 kg
Dimensions:
- Machine Footprint (L × W × H): 10,800 × 2,000 × 1,600 mm
- Packaging Dimensions (L × W × H): 11,000 × 2,250 × 2,150 mm
The KRAFT 5-1000×8000 heavy-duty lathe is designed for pipe processing, single-part and series production, and mechanical and plant engineering, making it a versatile addition to any workshop.
