| Manufacturer | Kovosvit Mas |
|---|---|
| Model | Multicut 630S x 3000 |
| Year | 2014 |
| Location | Norway
|
Kovosvit Mas Multicut 630S x 3000 (2014) — vertical multitasking milling center configured for full processing of large and complex parts. This heavy machine is described as equipped with a milling spindle, lower turret, right spindle/rear center, automatic tool changer, and hydraulic stable support. The control system is Siemens SINUMERIK with SHOPTURN.
Main configuration and features:
- Right spindle / rear center
- Milling spindle with high-pressure cooling
- Automatic tool changer with 120 positions (CAPTO C8)
- Magazine for 3 bar stock rods with automatic change; B-axes prepared for automatic clamping of bar stock
- Hydraulic stabilizing support K5.1 for Ø100–410 mm
- High-quality coolant through the spindle (60 bar) and external cooling system
- Chip conveyor and automatic door opening
- Central lubrication and status indicator lamp
- Electrical cabinet with air conditioning
- Prepared for bar feeder
- USB and Ethernet connections
- Tool measuring probe
- Viviport rotating doors/windows
Technical details: CAPTO C8 system, maximum length of bar stock 500 mm, maximum weight of bar stock 12 kg, through the right spindle bore Ø127 mm, optional spindle 10 000 rpm, spindle power S1/S6 37/47 kW and spindle torque 140/180 Nm.
Working hours, as listed:
- System on time: 52 270 h
- Machine on time: 49 264 h
- Automatic cycle time: 9 599 h

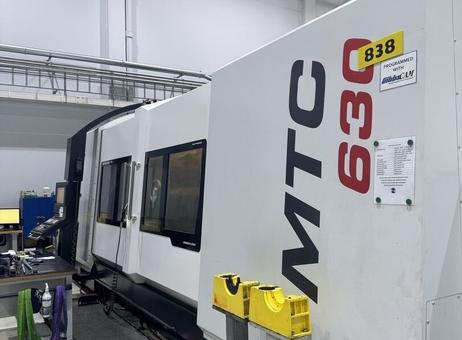

The instruction states that the machine is currently powered up and can be checked on the production floor. The offer also includes a large white enclosed cabinet with the front access door and viewing window on the left side, a control console with screen mounted at the left end of the machine, a yellow tool holder with multiple holders located in front of the machine, and various devices and tools on a metal workbench nearby; on the floor there is a red emergency stop button. Please check with the seller which accessories are included and in what condition they are before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Kovosvit Mas Multicut 630S x 3000 Vertical Machining Center multi-axis machining center
Heavy-duty multitasking machine configured for complete machining of large and complex components. Machine is equipped with milling spindle, lower turret, right spindle/tailstock, automatic tool changer and hydraulic steady rest system.
Machine is currently under power and can be inspected in production.
Main configuration:
MULTICUT 630S x 3000
Siemens SINUMERIK control with SHOPTURN
Right spindle / tailstock
Milling spindle with high-pressure coolant
Automatic tool changer
120 tool positions CAPTO C8
Magazine for 3 boring bars with automatic exchange
B-axis prepared for automatic boring bar clamping
Hydraulic steady rest K5.1 Ø100–410 mm
High-pressure coolant through spindle – 60 bar
External coolant system
Chip conveyor
Automatic door opening
Central lubrication
Machine status signal lamp
Electrical cabinet with air conditioning
Prepared for bar feeder
USB and Ethernet connection
Tool measuring probe
Viviport spin windows in doors
Technical details:
CAPTO C8 system
Max boring bar length: 500 mm
Max boring bar weight: 12 kg
Through hole right spindle: Ø127 mm
10,000 rpm spindle option
S1/S6 spindle power: 37/47 kW
Spindle torque: 140/180 Nm
Machine hours:
System power on time: 52,270 h
Machine power on time: 49,264 h
Automatic cycle time: 9,599 h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
