| Manufacturer | KOLOMNA |
|---|---|
| Model | 1540 F1 |
| Year | 1990 |
| Location | Spain
|
KOLOMNA 1540 F1 vertical turning lathe, manufactured in 1990. Key nominal capacities recorded for this model: maximum turning diameter 4,100 mm, plate diameter 4,000 mm and maximum workpiece height 2,000 mm. The machine is described as equipped with CNC-controlled rams and does not include driven tools. A removable self-centering chuck is listed as available.

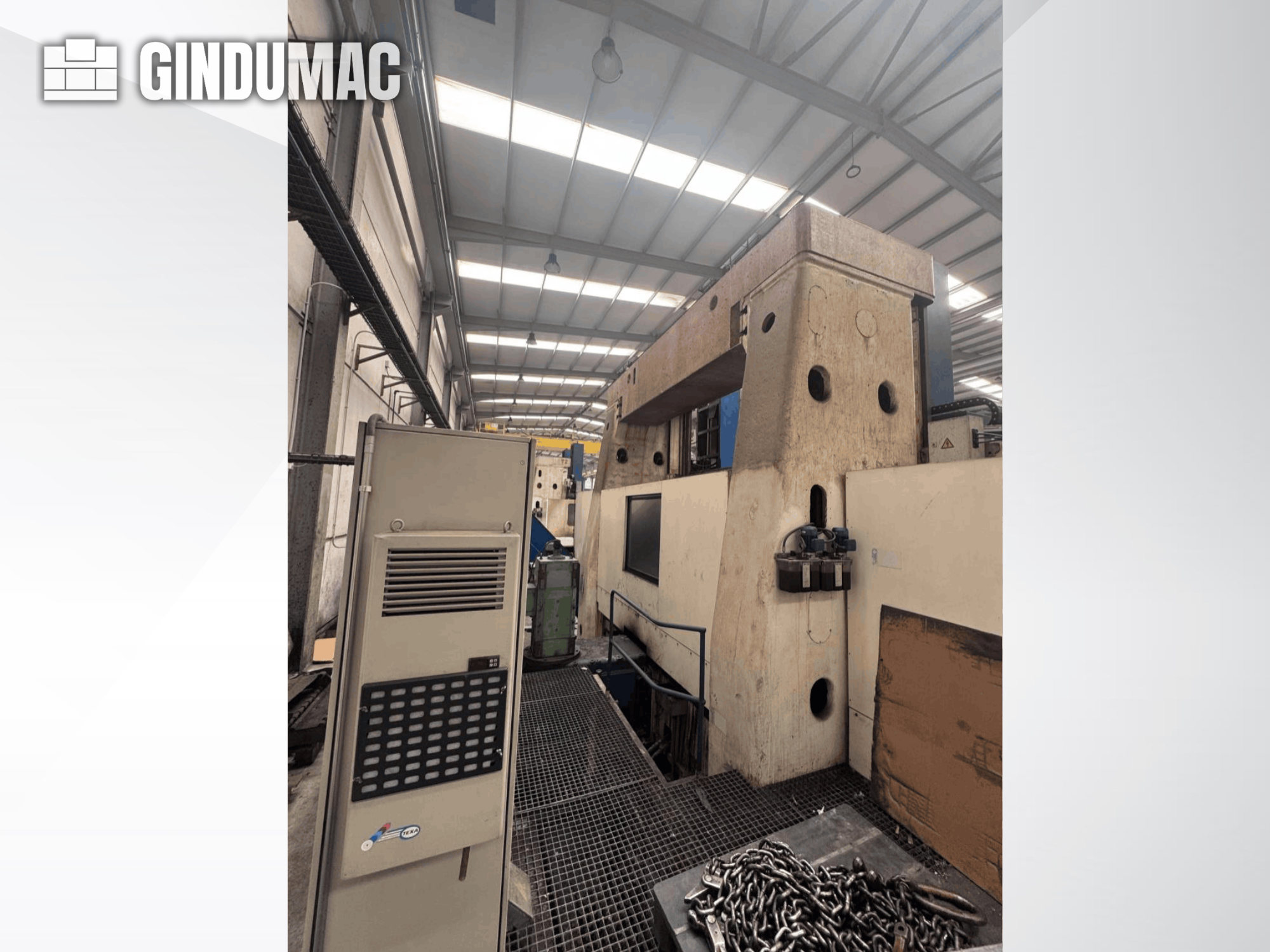

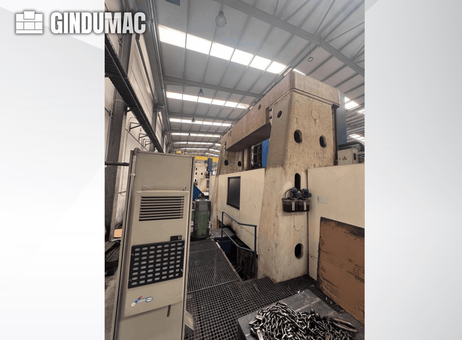

Equipment and accessories documented: chip extractor, complete enclosure, cooling system, work light and a refrigerated electrical cabinet. A perforated control cabinet is present at the left side of the machine. Guard structures and an overhead gantry are part of the machine’s structural arrangement.

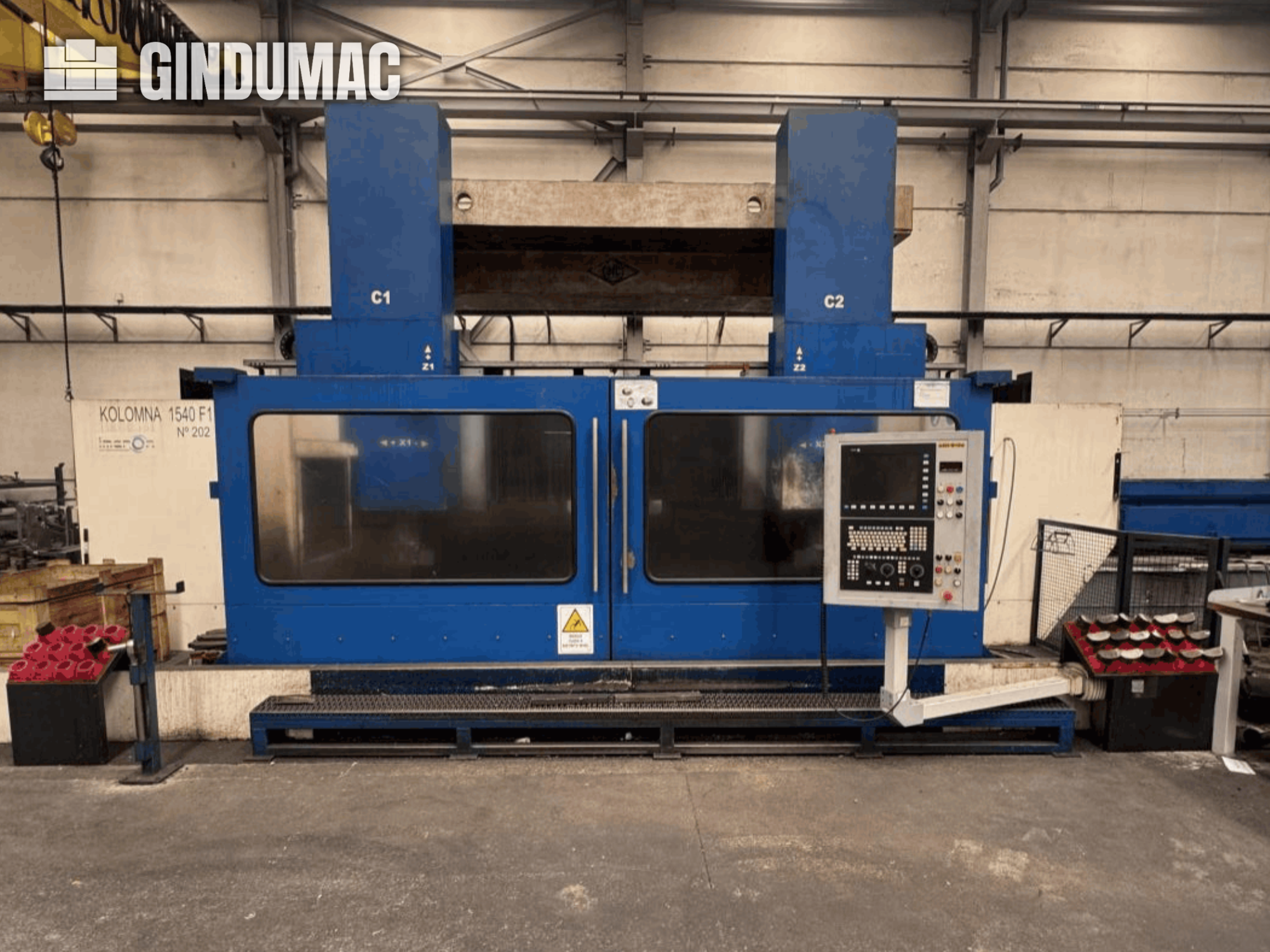

Condition and on-site observations: the machine has a blue-painted vertical-turret frame with uprights labeled “C1” and “C2.” Surface dirt and visible wear are present on the base and surrounding structure. Metal chips and tooling pieces are scattered on the floor around the unit; these chips could represent a tripping hazard and the area would benefit from cleaning prior to operation or inspection. A warning triangle label is fitted on the lower front panel.
Note on information included: only manufacturer/model, the quoted turning diameter, plate diameter and working height are presented as recorded. Mechanical condition, functional status, and any service history or test results are not stated here and should be confirmed with the seller. Additional accessories listed above are taken from the available equipment information.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Vertical turning machine manufactured in 1990. This KOLOMNA 1540 F1 features a maximum turning diameter of 4,100 mm and a maximum workpiece height of 2,000 mm. It is equipped with CNC-controlled rams and a powerful 115 kW motor. If you are looking to get high-quality turning capabilities, consider the KOLOMNA 1540 F1 machine we have for sale. Contact us for further details.Plate diameter: 4,000 mm
Maximum turning diameter: 4,100 mm
Maximum workpiece height: 2,000 mm
CNC-controlled rams: 2
Ram travel: 1,250 mm
Motor power: 115 kW
Retrofitting: Mechanical, hydraulic, electrical and electronic systems renewed in 2007
Additional equipment

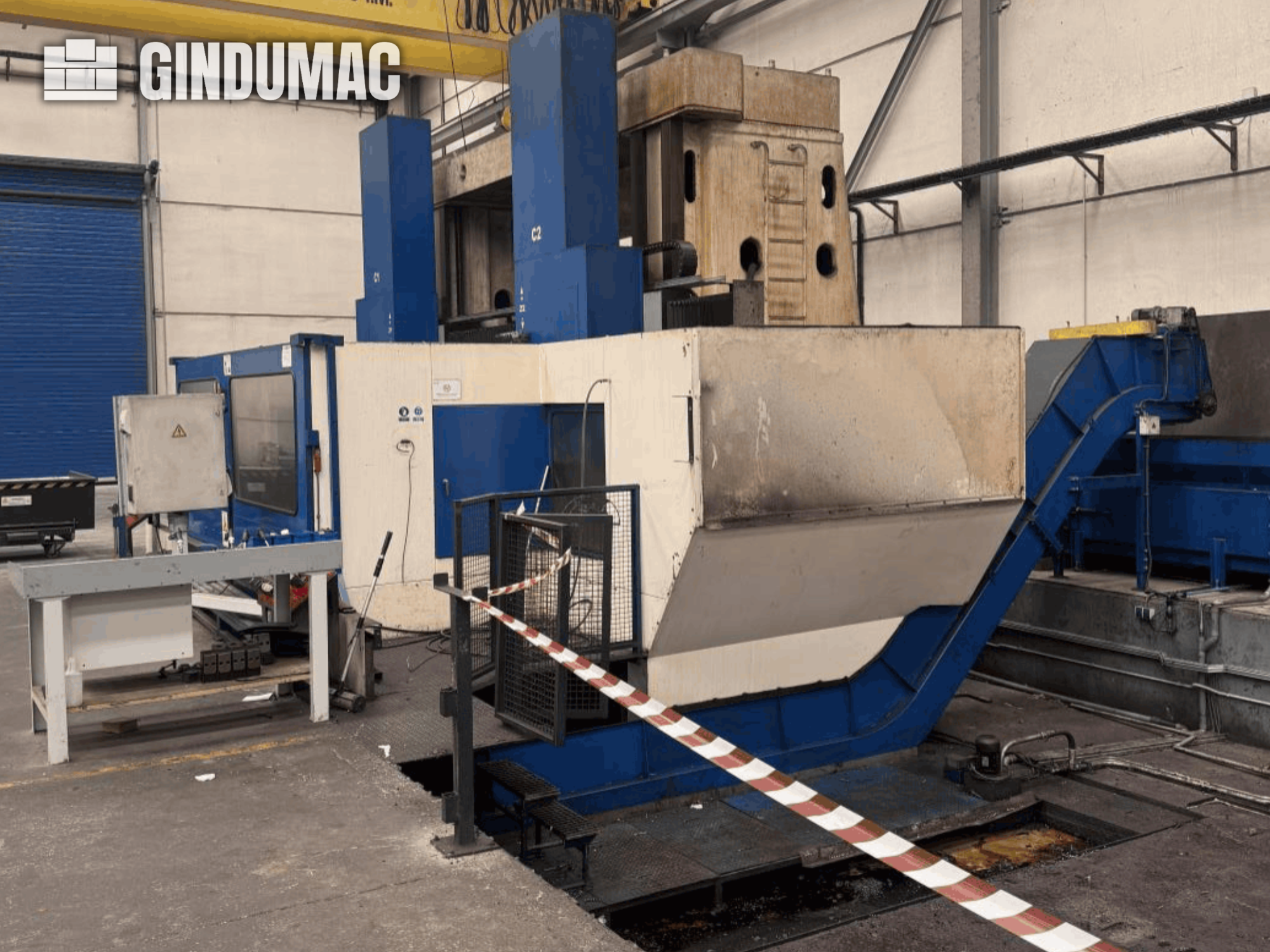

Chip extractor
Complete enclosure
Cooling system
Work light
Refrigerated electrical cabinet
Self-centering chuck, diameter 2,500 mm (removable; installed on one of the two machines)
Driven Tools: no
Number of Axes: 2
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
