| Manufacturer | KOLOMNA |
|---|---|
| Model | 1532T |
| Year | 1990 |
| Location | Spain
|

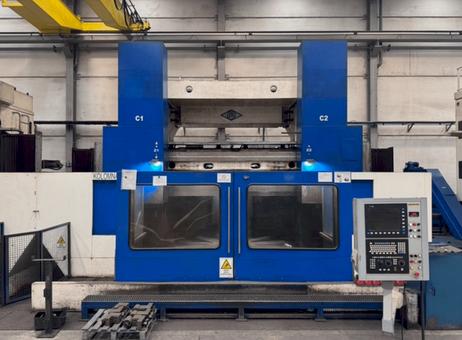

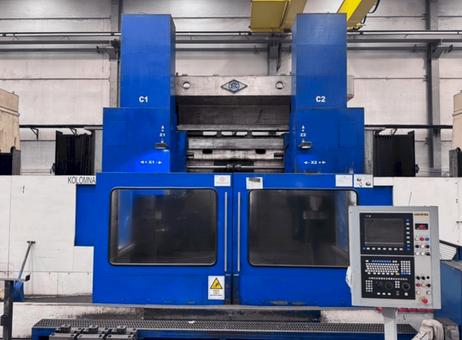

This KOLOMNA 1532T vertical turning lathe, manufactured in 1990, is designed for heavy-duty turning operations with a maximum turning diameter of 3200 mm and a turning length of 2000 mm. It is powered by a robust 115 kW spindle motor, making it suitable for machining large and heavy workpieces. The machine features two vertical columns labeled C1 and C2 that support the overhead structure, providing stability during operation.

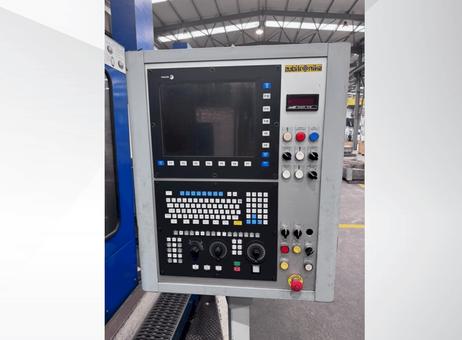

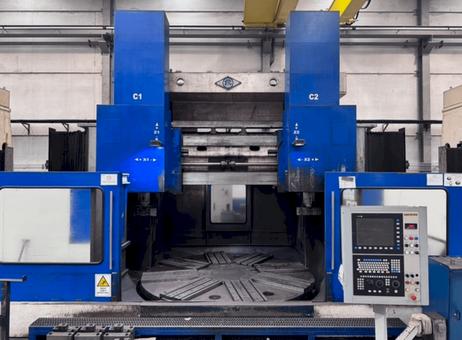

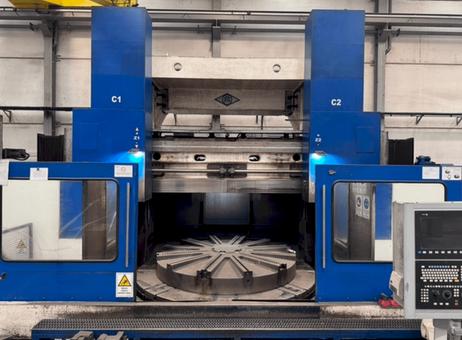

The lathe is equipped with a large circular worktable at the center, capable of handling workpieces up to 3200 mm in diameter. The work area is enclosed with protective transparent doors framed in blue, enhancing operator safety while allowing visibility of the machining process. The control panel, located on the right side of the machine, includes a screen, keyboard, multiple buttons, knobs, and an emergency stop button for operational control and safety. Although the control panel screen is currently inactive, the panel appears intact and functional.
The machine shows signs of use with some dirt and wear marks on the blue painted surfaces and metal parts, but overall it appears to be maintained in a clean condition. The base platform in front of the machine has a textured metal surface, providing a stable working area.
Additional features from the known specifications include a chip extractor, chip conveyor, complete enclosure, cooling system, work light, refrigerated electrical cabinet, and a self-centering chuck with a diameter of 2500 mm (removable). The machine underwent mechanical, hydraulic, electrical, and electronic retrofitting in 2007, which included work by CMI Durango, Zubitronika, Auxkal, and Irudex. This lathe is suitable for industrial applications requiring reliable and precise turning of large components.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This KOLOMNA 1532T vertical turning machine was manufactured in 1990. It features a robust design suitable for a variety of turning operations. If you are looking to get high quality turning capabilities consider the KOLOMNA 1532T machine we have for sale. Contact us for more information.
Spindle motor power: 115 Kw
Number of axis: 2
Chip Extractor
Complete Enclosure
Cooling System
Work Light
Self-Centering Chuck Diameter: 2500 mm (removable)
Refrigerated Electrical Cabinet
Maximum turning diameter: 3200 mm
Maximum workpiece height: 2000 mm
Ram travel: 1250 mm
Plate diameter: 3200 mm
Mechanical, hydraulic, electrical, and electronic retrofitting performed in 2007
Mechanical retrofitting by cmi durango
Electronic part handled by zubitronika
New enclosures manufactured by auxkal
Chip conveyor provided by irudex
Machine still under power
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
