| Manufacturer | Kolb |
|---|---|
| Model | HK 126 |
| Year | |
| Location | Germany
|
| Category | Drilling - radial drilling machines |
| Drilling Ø | 120 mm |
| Table length | 3000 mm |
| Table width | 1550 mm |
| Spindle taper | |
| Engine Power | 15 kW |
| Arm length | 2500 mm |
| Weight | 16000 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Kolb HK 126 |
| Last availability date | 12/03/2026 |
| Product id | P260308225 |
| Language |
Радиално-пробивна машина Kolb HK 126
Radiální vrtačka Kolb HK 126
Kolb HK 126 Radialboremaskine
Kolb HK 126 Radialbohrmaschine
Ακτινικό δράπανο Kolb HK 126
Kolb HK 126 Radial drilling machine
Taladro radial Kolb HK 126
Perceuse radiale Kolb HK 126
Radijalna bušilica Kolb HK 126
Kolb HK 126 Radiál fúrógép
Trapano radiale Kolb HK 126
Kolb HK 126 Radialinė gręžimo staklė
Kolb HK 126 Radiaalboormachine
Wiertarka promieniowa Kolb HK 126
Furadeira radial Kolb HK 126
Mașină de găurit radială Kolb HK 126
Kolb HK 126 Радиально-сверлильный станок
Radijalna bušilica Kolb HK 126
Kolb HK 126 Radialborrmaskin
Radyal matkap tezgâhı Kolb HK 126
|

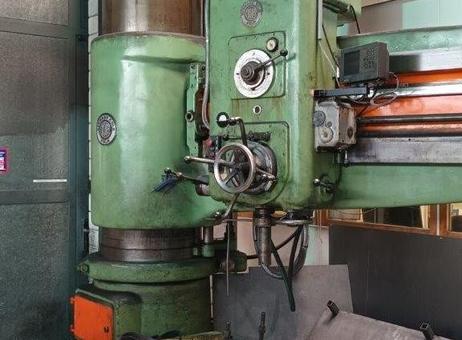

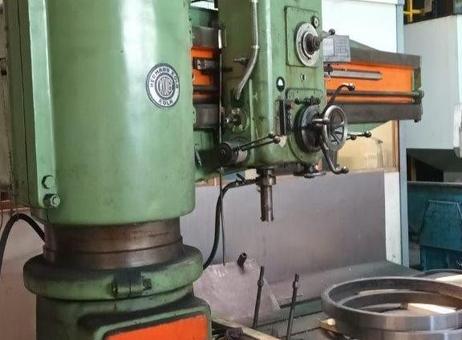

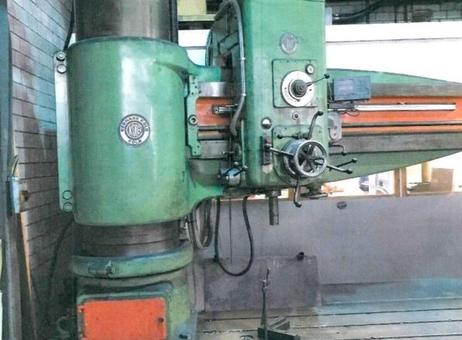

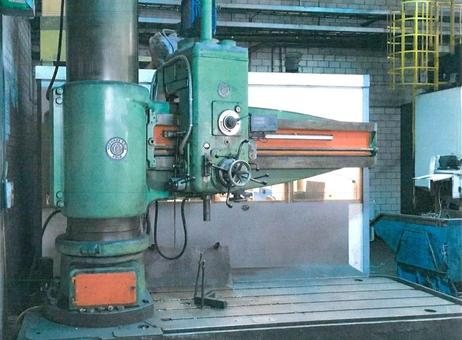

The Kolb HK 126 is a robust radial drilling machine designed for heavy-duty drilling tasks. It features a large base and a substantial column, both painted in green and orange, providing a solid and stable structure for precise operations. The machine stands at a total height of 4500 mm and weighs approximately 16,000 kg, reflecting its heavy industrial build.
This model offers a drilling capacity of up to 120 mm in steel and 160 mm in cast iron, making it suitable for a wide range of materials. The drilling radius ranges from 880 mm to 2825 mm, with a minimum reach of 555 mm and a maximum arm length of 2500 mm, allowing for versatile positioning of the drill head. The workpiece height can accommodate pieces up to approximately 1800 mm.
The drill spindle has a diameter of 90 mm with an MK 6 holder and a quill diameter of 160 mm. It operates at spindle speeds ranging from 10 to 660 rpm and can achieve a drilling depth of up to 650 mm. Feed rates vary between 0.07 and 3.0 mm per revolution, providing control over the drilling process. The spindle can rotate both right and left, and the machine includes a thread cutting device.

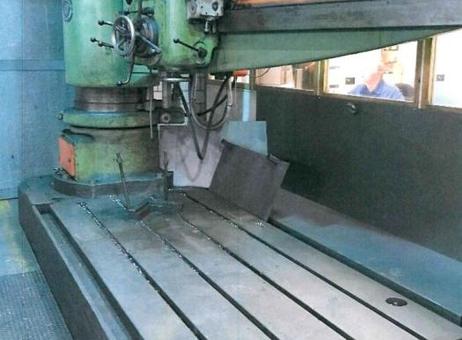

The machine's boom can be vertically adjusted by 1150 mm, and the distance from the spindle to the base plate ranges from 300 mm to 2100 mm. It is equipped with a large flat worktable measuring 3000 mm in length and 1550 mm in width, featuring T-slots for secure clamping of workpieces. The base plate also serves as a clamping surface.
Powering the machine is a 15 kW electric motor mounted on top of the drilling head. The machine includes digital HEIDENHAIN readouts on the X and Z axes for precise control of the boom and drilling depth.

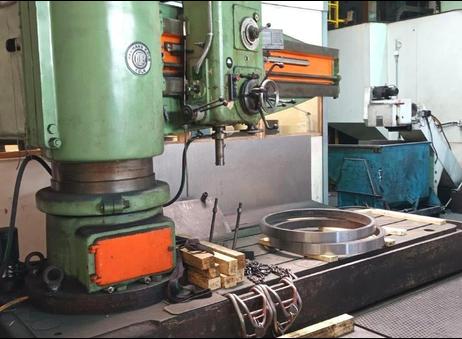

From visual inspection, the machine appears structurally intact with no visible major damage. The worktable surface is clean and in good condition, although the machine shows typical signs of surface wear consistent with regular use. Handwheels and control levers are present on the drilling head, facilitating manual adjustments. Accessories such as chains, metal lifting hooks, and wooden blocks are seen placed on the base and worktable, indicating readiness for handling and transport.
Overall, the Kolb HK 126 radial drilling machine is a heavy-duty, well-constructed piece of equipment suitable for demanding industrial drilling applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Make KOLB
Type HK 126
Technical details
Drilling capacity in steel (diameter) 120 mm
Reach 2500 mm
Workpiece height - max. approx. 1800 mm
Drilling capacity in cast iron 160 mm
Drilling radius min./max. 880 / 2825 mm
Reach min. 555 mm
Column diameter 650 mm
Drill spindle diameter / holder 90 / MK 6 mm
Quill diameter 160 mm
Drill spindle speed 10 - 660 rpm
Drilling depth 650 mm
Feed rates 0.07 - 3.0 mm/rev
Distance spindle/base plate min. 300 / max. 2100 mm
Vertical adjustment of the boom 1150 mm
Clamping surface of the base plate 3000 x 1550 mm
Total height of machine 4500 mm
Total power requirement 15 kW
Machine weight approx. 16 t
- Right/left spindle rotation
- Thread cutting device
Accessories Digital HEIDENHAIN on X and Z axes (boom and drilling depth)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
