| Manufacturer | KNUTH |
|---|---|
| Model | KHT H 3010 NC |
| Year | 2021 |
| Location | Romania
|

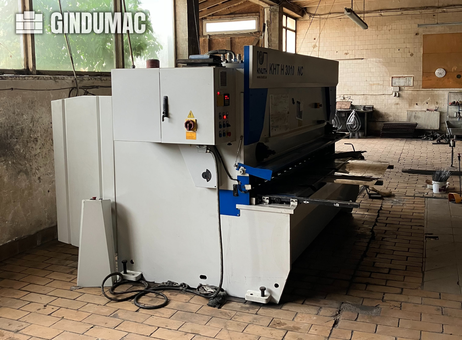

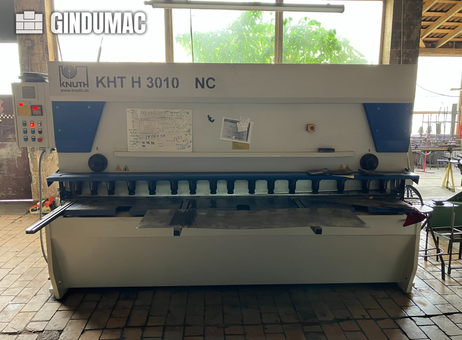

This hydraulic guillotine shear machine, model KHT H 3010 NC, is manufactured by KNUTH and was produced in 2021. It is designed for precise metal sheet cutting with a maximum cutting length of 3080 mm and a maximum sheet thickness capacity of 10 mm. The machine has overall dimensions of 3920 mm in length, 2200 mm in width, and 2130 mm in height, weighing approximately 9300 kg.

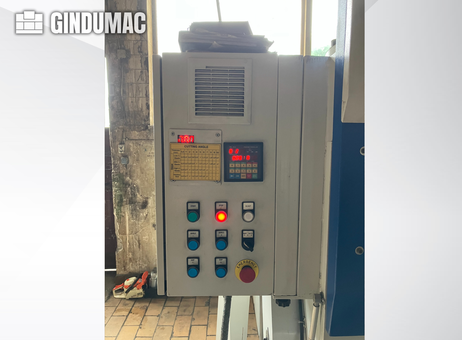

Equipped with a powerful 22 kW main motor and a hydraulic system with a 350-liter oil capacity, this robust shear offers efficient cutting performance. The control system features a Cybelec Touch 8 touchscreen interface, allowing for optimal positioning of the cutting gap, angle, and length. The control panel includes illuminated buttons and indicators, as well as emergency stop functionality, enhancing operational safety and ease of use.
The machine includes front support arms for metal sheets, facilitating material handling during cutting operations. The cutting blade area is accessible and designed to handle stainless steel with standard blades suitable for this purpose. The machine’s exterior is in clean, well-maintained condition with no visible damage, showing only minor wear consistent with normal use.
Additional features include a guided cutter bar with adjustable cutting angle to minimize twisting, automatic optimization of cutting parameters, and a controlled backgauge system with preloaded ball screw for precise positioning. The backgauge offers a rear stop of 1000 mm and an X-axis feed speed of 6000 mm/min. The hold-down system has 16 positions with a capacity of 20 tons, ensuring secure clamping during cutting.
This KNUTH KHT H 3010 NC hydraulic shear is a solid choice for industrial applications requiring high-quality, precise shearing of metal sheets. For further information or to discuss your specific needs, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Hydraulic shearing machine manufactured in 2021. This KNUTH KHT H 3010 NC features a working length of 3080 mm and a throat depth of 150 mm. It includes a Cybelec Touch 8 control for optimal positioning of cutting gap, angle, and length. The robust backgauge and standard blades are suitable for stainless steel. If you are looking to get high-quality shearing capabilities, consider the KNUTH KHT H 3010 NC machine we have for sale. Contact us for further details.Control: Cybelec Touch 8 (touchscreen)
Features:
Guided cutter bar with adjustable cutting angle for minimal twisting
Automatic optimization of cutting gap, cutting angle, and cutting length
Controlled backgauge with preloaded ball screw
Controlled kerf (cutting gap) adjustment
Controlled cutting angle adjustment
Blades/knife suitable for stainless steel
Robust, precise backgauge
Working area:
Working length: 3080 mm (maximum cutting length 3080 mm)
Throat depth: 150 mm
Cutting angle: 0.3°–2°
Strokes per minute: 17 H/min
Hold-down: 16 positions, 20 t capacity
Table size: 3340 mm x 520 mm x 875 mm
Backgauge:
Rear stop: 1000 mm
X-axis feed speed: 6000 mm/min
Front support arms:
Quantity: 3
Length: 900 mm each
Cutting capacities:
10 mm at 450 N/mm²
6 mm at 700 N/mm²
Drive:
Main motor: 22 kW
Hydraulic tank: 350 l
Machine Height: 2130 mm
Machine Length: 3920 mm
Machine Weight: 9300 kg
Machine Width: 2200 mm
Max. Cutting Length: 3080 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2111 |
| Last activity | Oct. 28, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
Hydraulic shearing machine manufactured in 2021. This KNUTH KHT H 3010 NC features a working length of 3080 mm and a throat depth of 150 mm. It includes a Cybelec Touch 8 control for optimal positioning of cutting gap, angle, and length. The robust backgauge and standard blades are suitable for stainless steel. If you are looking to get high-quality shearing capabilities, consider the KNUTH KHT H 3010 NC machine we have for sale. Contact us for further details.Control: Cybelec Touch 8 (touchscreen)
Features:
Guided cutter bar with adjustable cutting angle for minimal twisting
Automatic optimization of cutting gap, cutting angle, and cutting length
Controlled backgauge with preloaded ball screw
Controlled kerf (cutting gap) adjustment
Controlled cutting angle adjustment
Blades/knife suitable for stainless steel
Robust, precise backgauge
Working area:
Working length: 3080 mm (maximum cutting length 3080 mm)
Throat depth: 150 mm
Cutting angle: 0.3°–2°
Strokes per minute: 17 H/min
Hold-down: 16 positions, 20 t capacity
Table size: 3340 mm x 520 mm x 875 mm
Backgauge:
Rear stop: 1000 mm
X-axis feed speed: 6000 mm/min
Front support arms:
Quantity: 3
Length: 900 mm each
Cutting capacities:
10 mm at 450 N/mm²
6 mm at 700 N/mm²
Drive:
Main motor: 22 kW
Hydraulic tank: 350 l
Machine Height: 2130 mm
Machine Length: 3920 mm
Machine Weight: 9300 kg
Machine Width: 2200 mm
Max. Cutting Length: 3080 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This hydraulic guillotine shear machine, model KHT H 3010 NC, is manufactured by KNUTH and was produced in 2021. It is designed for precise metal sheet cutting with a maximum cutting length of 3080 mm and a maximum sheet thickness capacity of 10 mm. The machine has overall dimensions of 3920 mm in length, 2200 mm in width, and 2130 mm in height, weighing approximately 9300 kg.
Equipped with a powerful 22 kW main motor and a hydraulic system with a 350-liter oil capacity, this robust shear offers efficient cutting performance. The control system features a Cybelec Touch 8 touchscreen interface, allowing for optimal positioning of the cutting gap, angle, and length. The control panel includes illuminated buttons and indicators, as well as emergency stop functionality, enhancing operational safety and ease of use.
The machine includes front support arms for metal sheets, facilitating material handling during cutting operations. The cutting blade area is accessible and designed to handle stainless steel with standard blades suitable for this purpose. The machine’s exterior is in clean, well-maintained condition with no visible damage, showing only minor wear consistent with normal use.
Additional features include a guided cutter bar with adjustable cutting angle to minimize twisting, automatic optimization of cutting parameters, and a controlled backgauge system with preloaded ball screw for precise positioning. The backgauge offers a rear stop of 1000 mm and an X-axis feed speed of 6000 mm/min. The hold-down system has 16 positions with a capacity of 20 tons, ensuring secure clamping during cutting.
This KNUTH KHT H 3010 NC hydraulic shear is a solid choice for industrial applications requiring high-quality, precise shearing of metal sheets. For further information or to discuss your specific needs, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2111 |
| Last activity | Oct. 28, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
