| Manufacturer | KITAMURA |
|---|---|
| Model | MYCENTER HX630G |
| Year | 2017 |
| Location | Poland
|
The KITAMURA MYCENTER HX630G is a horizontal machining center manufactured in 2017 by Kitamura Machinery Co., Ltd. in Japan. It is designed for advanced machining tasks involving large and heavy workpieces, with a maximum part weight capacity of 1500 kg. The machine features a robust construction primarily made from high-quality cast iron, ensuring stability and precision during machining operations.
This machining center operates with 4 axes (X, Y, Z, and B), offering feed travels of 1100 mm, 920 mm, and 1050 mm respectively, and a full 360° rotation on the B axis. It supports a maximum workpiece diameter of 1080 mm and a height of up to 1300 mm. The work table measures 1080 mm by 1080 mm and is capable of rotating at speeds up to 33 rpm.
Equipped with a powerful spindle driven by a 40 kW motor, the spindle reaches speeds up to 12,000 rpm and features an SK-50 taper. The machine incorporates a 61-position tool magazine, accommodating tools up to 320 mm in diameter and 650 mm in length, with a maximum tool weight of 30 kg. Tool change times are efficient, with 2.1 seconds between tools and 5.8 seconds between chips.
The MYCENTER HX630G includes an automatic pallet change system with two pallets, enabling a pallet change time of 14.7 seconds and quick locking/unlocking times of 1 second. The machine also features cooling through the spindle at 15 bar pressure.

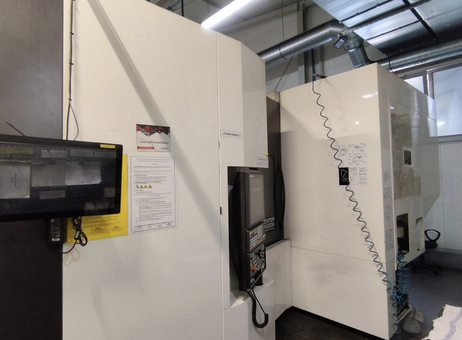

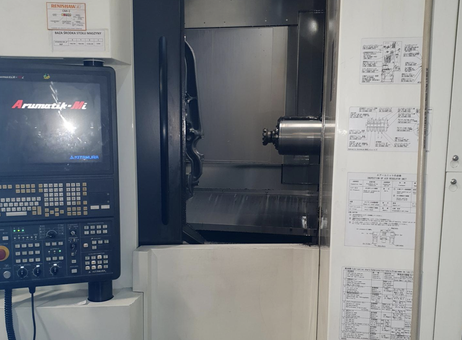

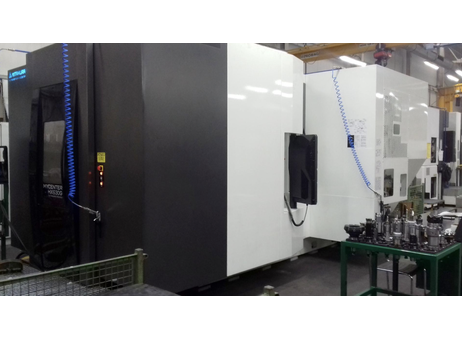

The control system is the Arumatik-Mi CNC, with a control panel mounted on the left side of the machine. The machining area is enclosed with a door and window, and the interior appears clean and well-maintained. Additional visible accessories include a blue coiled air hose attached to the machine and various tooling accessories on a green table situated in front of the machine.
With a total weight of 21,000 kg, the KITAMURA MYCENTER HX630G is a well-constructed and versatile horizontal machining center suitable for demanding industrial applications requiring precision and efficiency.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The KITAMURA MYCENTER HX630G CNC horizontal machining center was manufactured in 2017 in Japan by Kitamura Machinery Co., Ltd. The machine is used in advanced machining of large workpieces with a maximum weight of 1500 kg. The solid construction made of high-quality cast iron combined with modern components ensures excellent precision and efficiency, even during the most intense challenges.
The machining process is carried out inside a large workspace, which includes, among others, two pallets and a reliable spindle. The spindle, driven by a 4-stage gearbox, offers increased machining flexibility, thanks to low torque and the possibility of precise finishing at high speeds. The special DCS (Dual Contact Spindle) system additionally ensures optimal spindle rigidity through simultaneous contact of the cone with the flange.
- CNC control: Arumatik-Mi
- number of axes: 4 (X, Y, Z, B)
- feed in X/Y/Z axis: 1100/920/1050
- feed in B axis: 360°
- accelerated feed in X, Y, Z axis: 60 m/min
- rotational speed of the work table (B axis): 33 rpm
- maximum dimensions of the workpiece (diameter x height): 1080 x 1300 mm
- maximum workpiece weight: 1500 kg
- number of spindles: 1
- maximum spindle rotational speed: 12000 rpm
- spindle power (instantaneous/continuous): 40/22 kW
- spindle torque: 586.9 Nm
- spindle taper: SK-50 Big+
- minimum distance from the spindle axis to the work table: 100 mm
- 61-position magazine tools
- maximum tool diameter : 320 mm
- maximum tool length : 650 mm
- maximum tool weight : 30 kg
- tool change time (tool-tool) : 2.1 s
- tool change time (chip-chip) : 5.8 s
- automatic pallet change system
- number of pallets : 2
- pallet change time : 14.7 s
- pallet locking/unlocking time (B and C axis) : 1 s
- work table indexing time (90°, B and C axis) : 2 s
- cooling through the spindle 15 bar
- machine switch-on time : 40656 h
- working hours : 33198 h - KITAMURA MYCENTER HX630G
machine weight : 21000 kg
