The machine was used only for tests for the customer and for the production of demonstration packaging with the string produced by us. For this reason, it has a wide range of applications and the possibility of producing packaging.
Speed: 15 to 120 packs per minute
Sealing temperature: from 20 to 200OC
Pack size: 100mm to 500mm wide; 100mm to 500mm in height
Material: heat-sealable laminated foil
Maximum foil size: 800 x 600 mm
Film feeding: three servo motors
Main motor: AC gear motor of main drive with inverter

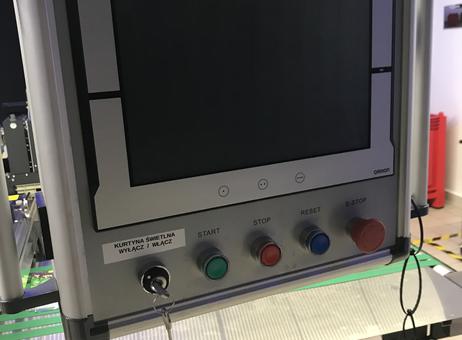

Control system: PLC / industrial computer
Additional equipment: a section for making vertical packages with a central seal (Center Seal Pouches or Side Gusset Pouches), dies: euro hanger, pencil, R10 for the corners of the package (R10 round corners), heaters for shaping the bottom of the do-pack 3 sets, several sets heaters for various string closures, a string unwinder, a device for cutting a part of the packaging to align + a rewinder.
Machine dimensions 23.4 x 2.1 x 1.8 m
Weight: 10,000 kg
Required utilities: compressed air (7 bar), glycol, electricity (voltage: 380 V; power: 80 kW; frequency 50 Hz; ampere 80 A)
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. Exapro recommends to check the details with the seller before a purchase
