Contact us to receive an offer.
| Manufacturer | Kimura Chemical Plants (KCPC) |
|---|---|
| Model | VST-B1 |
| Year | 1989 |
| Location | Netherlands
|
Product overview
Brand: Kimura Chemical Plants (KCPC)
Type: VST-B1
Capacity: 2,500 liters
Year: 1989
Description

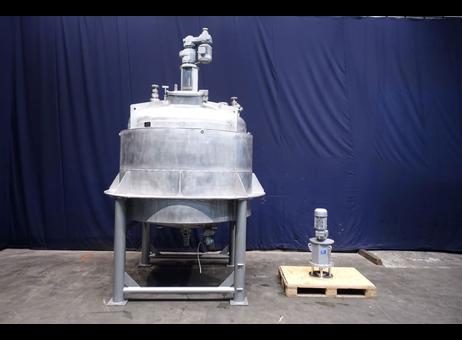

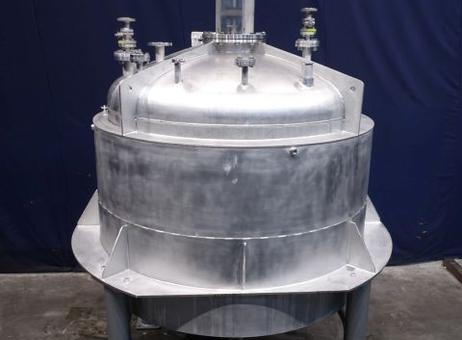

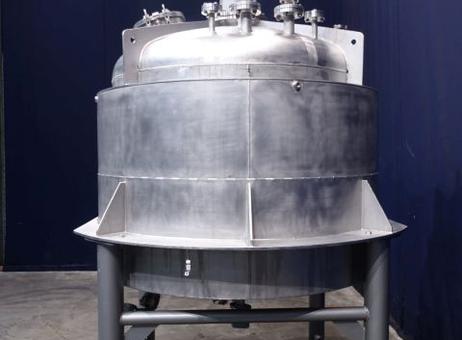

Stainless steel double-jacketed process tank designed for chemical/food processing applications. The jacket is quoted with a volume of 280 liters and a maximum jacket pressure of 1.9 kg/cm² with a temperature rating of 80 °C. The tank is not insulated and is supplied mounted on a steel frame with four feet.
Agitation

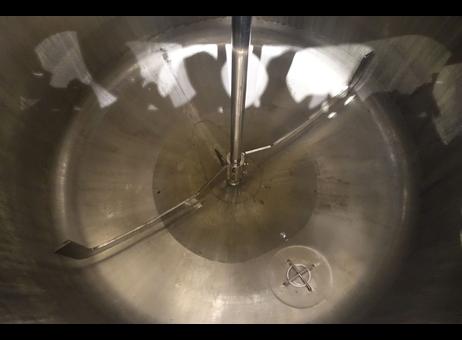

- Top-side driven fence agitator (low speed), centrally positioned. Drive motor: 1.1 kW, 3.5 A. The agitator is fitted with a manual variable speed reducer providing approximately 3.4–29 rpm.

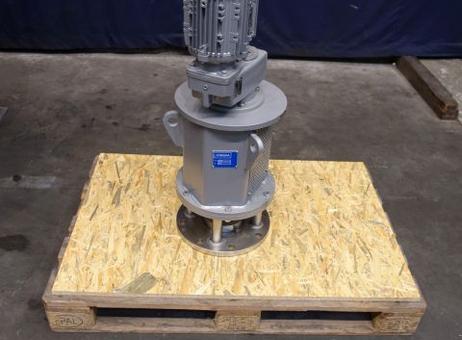

- Top-side driven propeller agitator (high speed), positioned off-center. Motor make: Nord; motor power 1.1 kW, 2.68 A; motor speed n1: 1,400 rpm; gear ratio i: 17.21 resulting in n2: 81 rpm. Note: the propeller agitator is listed as currently without shaft/agitator.
Process connections and instrumentation
- Product outlet: 2" tri-clamp connection at an outlet height of 72 cm. A pneumatic butterfly valve is fitted on the outlet.

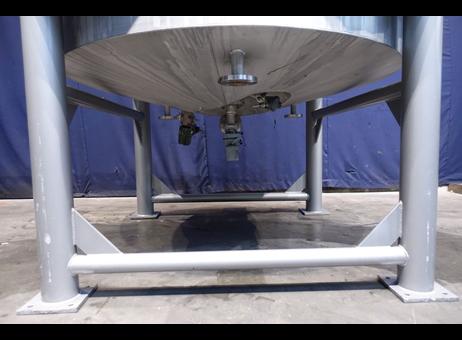

- 1 × pressure transmitter/sensor located in the bottom.
- 1 × temperature transmitter/sensor located in the bottom.
- 2 CIP spray bowls for cleaning-in-place.
- Rectangular manhole on top sized 45 x 32 cm.
Dimensions and weight
- Tank inside diameter Ø170 cm, inside height 135 cm.
- Total footprint/height with drivework: 190 x 190 x 370 cm (noted as with drivework).
- Weight: 1,950 kg.
Notes
All specifications above are taken from the supplied product details. No additional testing, operational status, or refurbishment claims are provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Specifications
BrandKimura Chemical Plants
TypeVST-B1
Capacity2.500 liters
Year1989
Kimura Chemical Plants (KCPC) VST-B1
Double jacketed process tank, not insulated. Top side driven fence agitator (slow rpm), positioned in the middle. Motor power: 1,1 kW - 3,5 A, reductor with manual variable speed reducer to 3,4-29rpm. And top side driven propellor agitator (fast rpm), positioned off center, currently with no shaft/agitator. Motor (make Nord) power: 1,1 kW - 2,68 A - n1: 1.400 rpm - i 17,21 - n2: 81 rpm. Jacket volume: 280 ltr - pressure in jacket: 1,9kg/cm2 temperature 80°C. Product outlet 2" Try clamp and outlet height: 72 cm. Including pneumatic butterfly on outlet. 1 x Pressure transmitter-sensor in bottom. 1 x Temperature transmitter-sensor in bottom. 2 CIP spray bowls. Manhole in top rectangular 45x32 cm. On steel frame with 4 Feet. Inside dimensions of tank: Ø170 cm and height 135 cm. Total dimensions: 190 x 190 x 370 (*with drivework) cm. Weigth: 1.950 kg's.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
