Kemac EK-19,9MT Industrial oven

Seller's description

Kemac 19.9 Oven Used

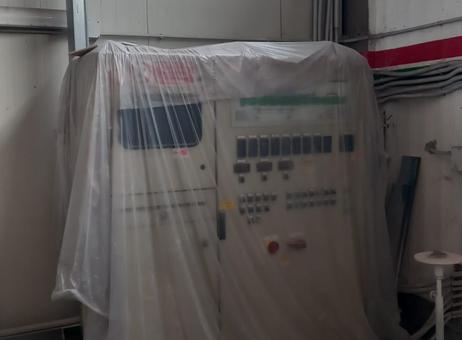

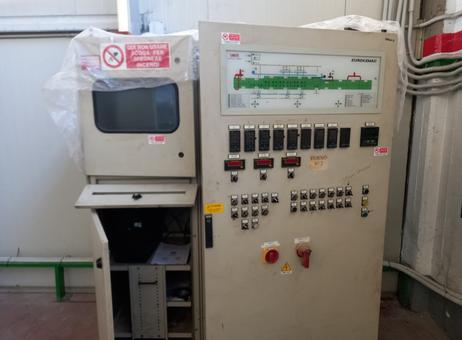

- Automatic / Manual computerized panel
- Consisting of a computer for the management of the oven - management of cooking curves with the possibility of memorizing
- 100 recipes
- Thermoregulators page and curve graph for correct management of the oven
- Towing management page
- Maintenance management page
- Electric power supply 380V + N
- Required power 38kwa
- Handling: roller traction divided by zones with 2100mm dry gear bars
0.55kv motors separately adjustable and with Omrom automatic reversing management.
And speed control sensors.
- Maximum roller operating speed of 30 minutes, minimum speed of 90 minutes

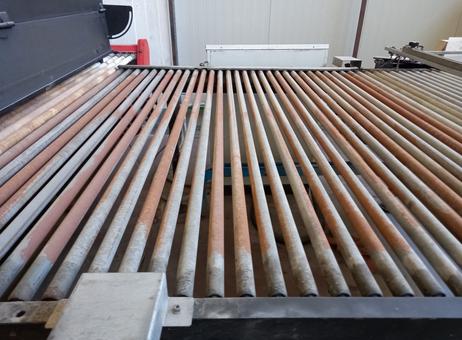

- 33mm high temperature rollers dimension
- Gas supply required working pressure of 200mm for cooking ramp

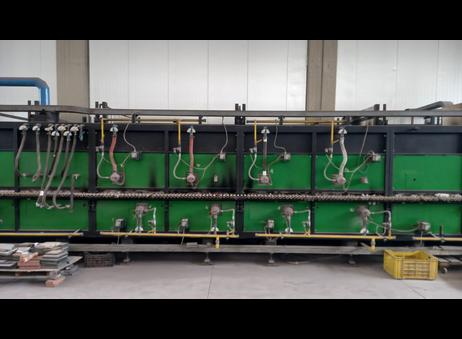

- Gas / Air Adjustments the various zones are automatically adjusted by automatic air modulators
/ gas managed by Ascon temperature controllers
- Max operating temperature of 1250 degrees
- Smoke extraction chimney
- Hot Air Fireplace
- Combustion air fan
- Quick cooling fan

- Gas train complete with safety protections PS min ps Max gas seal valves completely
automatic safety relief valve ramp size 2 inches

Acessories:

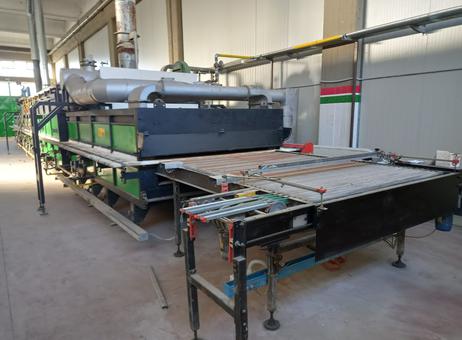

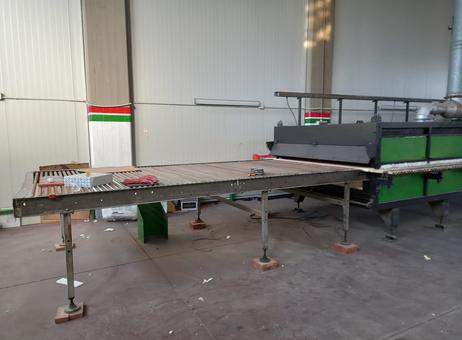

- Oven loading roller conveyor: Length 1.50mt
- Step-by-step bench to load spaced and in-line files at the mouth of the oven
- Slow / Fast managed by inverter and position sensor to avoid creating empty space for the load

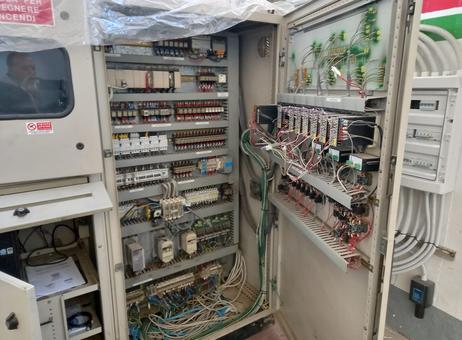

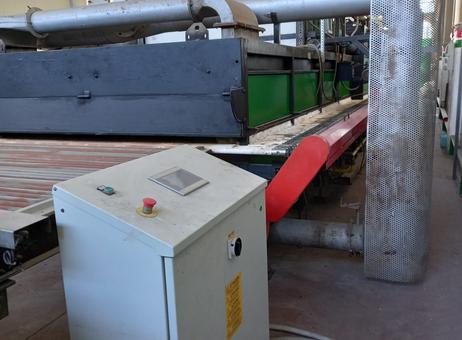

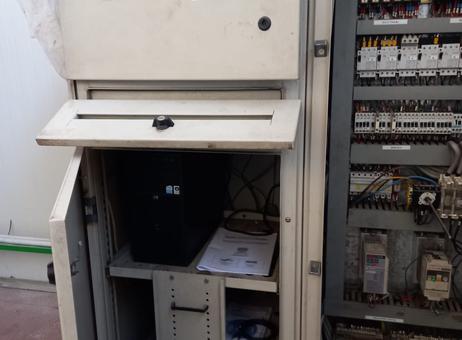

- Automatic electrical panel managed by PLC with step and row ready sensors
- Installed power 5.5Kwa
- 0.75 ° motors

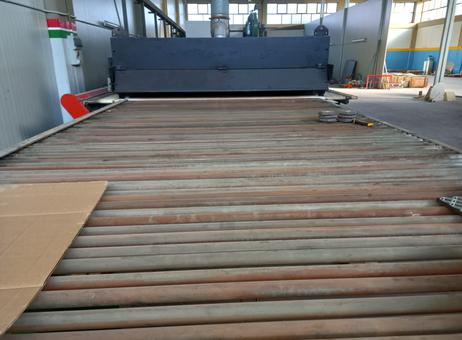

Oven unloading roller 6mt length (can be modified according to space
Blower battery for final material cooling
Composed of upper and lower blowers managed by a blowing fan of 1hp

The Kemac oven is fully functional in all its parts and as a dowry there will be some pieces of
new spare parts
Last revision carried out in 2018 internally and externally

Frequently Asked Questions (AI-Generated)

• What is the electric power supply of this Kemac EK-19.9MT oven?

• This Kemac EK-19.9MT industrial oven has an electric power supply of 380V + N.

• How much power does this Kemac EK-19.9MT oven require?

• This Kemac EK-19.9MT industrial oven requires a power of 38 kW.

• What is the roller traction feature of this industrial oven?

• This industrial oven features roller traction divided by zones with 2100 mm dry gear bars.

• What is the motor power of this Kemac EK-19.9MT oven?

• This Kemac EK-19.9MT oven is equipped with 0.55 kW motors that are separately adjustable.

• What are the maximum and minimum roller speeds of this industrial oven?

• This industrial oven has a maximum roller operating speed of 30 minutes and a minimum speed of 90 minutes.

• What is the height of the rollers included with this Kemac EK-19.9MT oven?

• This Kemac EK-19.9MT industrial oven includes 33 mm high temperature rollers.

• What is the gas supply pressure needed for this industrial oven?

• This industrial oven requires a gas supply with a working pressure of 200 mm for the cooking ramp.

• When was the last revision of this Kemac EK-19.9MT oven?

• The last revision of this Kemac EK-19.9MT oven was carried out in 2018, confirming its maintenance history.

• What type of control panel does this Kemac EK-19.9MT have?

• This Kemac EK-19.9MT industrial oven features an automatic/manual computerized panel.

• How many recipes can the oven management computer memorize?

• This equipment includes a computer for oven management with the ability to memorize 100 recipes.

• What is the maximum operating temperature of the unit?

• The unit has a maximum operating temperature of 1250 degrees Celsius.

• What is the required electrical supply and power for this Kemac EK-19.9MT?

• This Kemac EK-19.9MT requires an electrical supply of 380V with a necessary power of 38 kW.

• What is the measurement of the dry gear bars for roller traction?

• The oven's roller traction is divided by zones with dry gear bars measuring 2100 mm.

• What is the power rating of the adjustable motors in this equipment?

• This equipment has adjustable motors of 0.55 kW with automatic inversion management and speed control sensors.

• What are the maximum and minimum roller operating speeds?

• The maximum roller operating speed is 30 minutes, and the minimum is 90 minutes.

• What safety features are included with this Kemac EK-19.9MT?

• This Kemac EK-19.9MT includes a complete gas train with safety protections and automatic safety valves.

• What is the required working pressure for the gas/air supply?

• The unit has a gas/air supply with a required working pressure of 200 mm for the cooking ramp.

• What is the length of the roller conveyor included with this equipment?

• This equipment includes a 1.50 m long roller conveyor for loading the oven.

• When was the last service performed on the unit?

• The last service was performed in 2018, both internally and externally.

• Is this Kemac EK-19.9MT fully functional?

• This Kemac EK-19.9MT is fully functional and includes some new spare parts.

The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

Specifications

Category	Industrial ovens
Max Temperature	1250 °C
Inside Length	1500 mm
Engine Power	38 kW
Length x width x height	2700.0 × 1600.0 × 1000.0
worked hours	0 hours
hours under power	0 hours
state	revised
At local norms	yes
status	visible
Last availability date	06/06/2026
Product id	P211212002
Language	Language Kemac EK-19,9MT Průmyslova pec Kemac EK-19,9MT Kemac EK-19,9MT Kemac EK-19,9MT Industrielle öfen Kemac EK-19,9MT Kemac EK-19,9MT Industrial oven Horno industrial Kemac EK-19,9MT Four industriel Kemac EK-19,9MT Kemac EK-19,9MT Kemac EK-19,9MT Forno industriale Kemac EK-19,9MT Kemac EK-19,9MT Kemac EK-19,9MT Piec Kemac EK-19,9MT Kemac EK-19,9MT Kemac EK-19,9MT Kemac EK-19,9MT Kemac EK-19,9MT Kemac EK-19,9MT Endüsriyel fırın Kemac EK-19,9MT

Automatic description (AI-Generated)

The Kemac EK-19,9MT industrial oven is designed for high-temperature applications, with a maximum operating temperature of 1250 °C. It features a computerized control panel that allows both automatic and manual operation, enabling management of cooking curves and storage of up to 100 recipes. The oven includes thermoregulators and graphical curve displays for precise temperature control, alongside pages dedicated to towing and maintenance management.

This oven operates on a 380V + N electric power supply and requires 38 kW of power. It is equipped with a roller traction system divided by zones, utilizing 2100 mm dry gear bars and 0.55 kV motors that are adjustable independently. The motors incorporate Omron automatic reversing management and speed control sensors, allowing for a maximum roller operating speed of 30 minutes and a minimum speed of 90 minutes. The rollers themselves are 33 mm in height and designed to withstand high temperatures.

Gas supply is necessary, with a required working pressure of 200 mm for the cooking ramp. Gas and air adjustments are automatically managed through air modulators and Ascon temperature controllers. Additional features include a smoke extraction chimney, hot air fireplace, combustion air fan, and a quick cooling fan. The oven's gas train is fully equipped with safety protections, including minimum and maximum pressure safety valves and a 2-inch automatic safety relief valve.

Included accessories are an oven loading roller conveyor measuring 1.5 meters in length, featuring a step-by-step bench for loading spaced and in-line files at the oven mouth. This conveyor is managed by an inverter and position sensor to regulate speed and prevent gaps in the load. An automatic electrical panel managed by a PLC with step and row ready sensors controls the system, with installed power of 5.5 kW and 0.75 kW motors. The oven unloading roller conveyor extends 6 meters and can be modified according to available space. A blower battery composed of upper and lower blowers, driven by a 1 HP fan, is included for final material cooling.

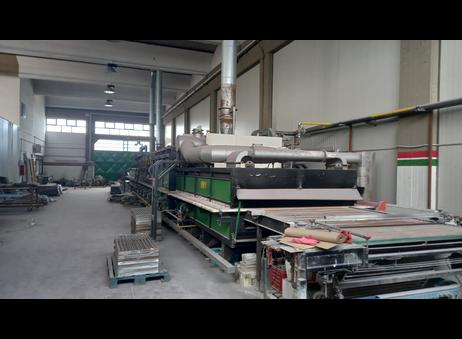

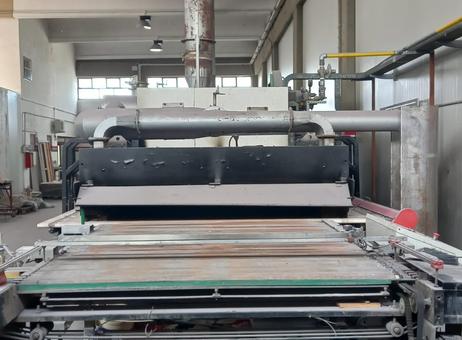

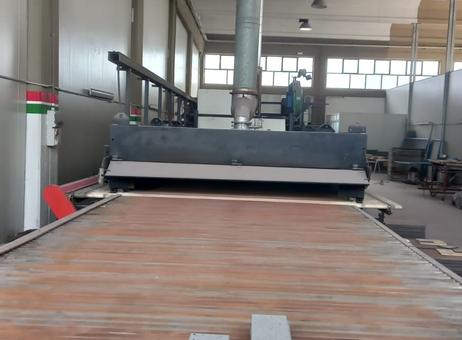

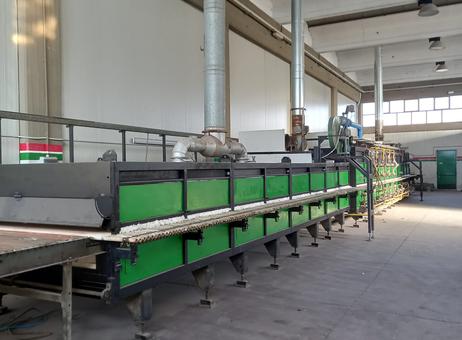

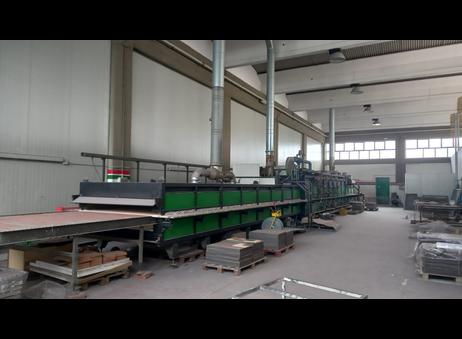

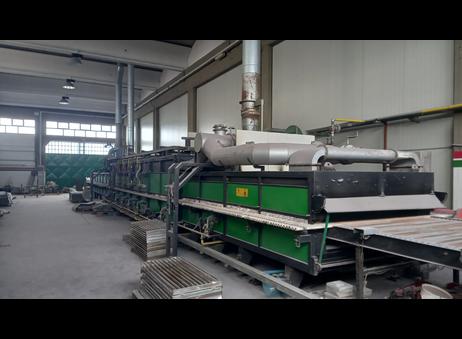

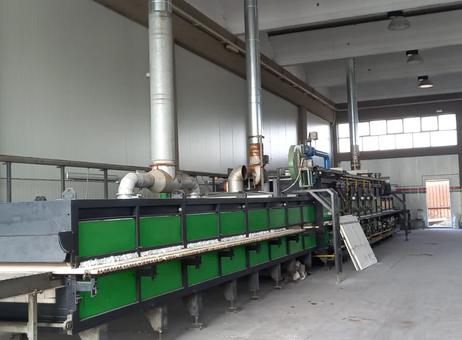

The oven has a green and black exterior with metal roller conveyor belts for material transport. Ventilation pipes and ducts are located on top of the oven, supported by adjustable legs for stability. The oven and conveyor system appear structurally intact, although some surface wear and signs of use, including dirt accumulation and minor rust on ventilation pipe joints, are visible. The floor area around the oven shows some dirt and small debris. Various small items and tools have been observed on the conveyor surface.

Dimensions of the oven are approximately 2700 mm in length, 1600 mm in width, and 1000 mm in height, with an inside length of 1500 mm. This equipment is suitable for industrial environments requiring precise temperature control and automated material handling.
