| Manufacturer | Kearns Richards |
|---|---|
| Model | SF 125 |
| Year | |
| Location | United Kingdom
|
This listing features a Kearns Richards SF 125 CNC horizontal boring machine, designed for heavy-duty machining tasks. The machine offers substantial travel capacities with 2388 mm in the X-axis (longitudinal travel), 2000 mm in the Y-axis (cross travel), and 1800 mm in the Z-axis (vertical travel). It is equipped with a large table measuring 1800 x 1800 mm, capable of supporting a maximum workpiece weight of up to 8000 kg, making it suitable for machining large and heavy components.

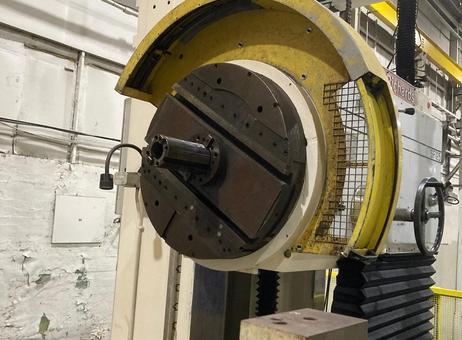

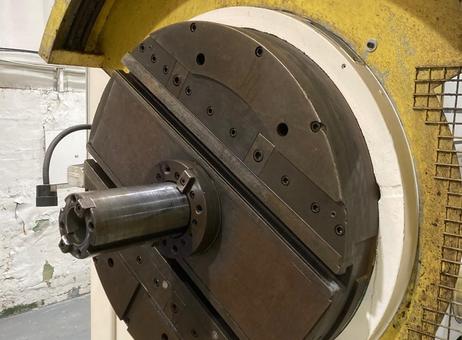

The spindle has a diameter of 125 mm and operates within a speed range of 4.5 to 1120 rpm, allowing for versatile machining operations. The machine includes a facing head with a diameter of 800 mm, which enhances its capability for facing and boring tasks.
Control is managed via a Heidenhain TNC 320 system, known for its precision and user-friendly interface, supporting complex CNC programming and operation.

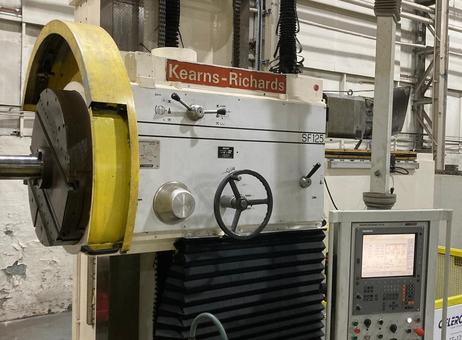

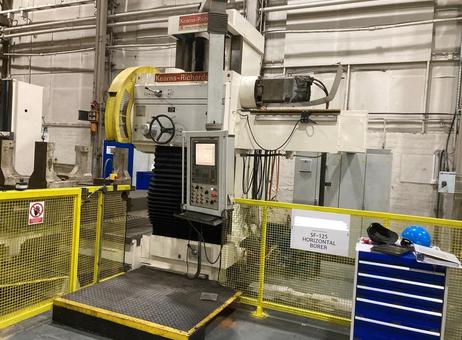

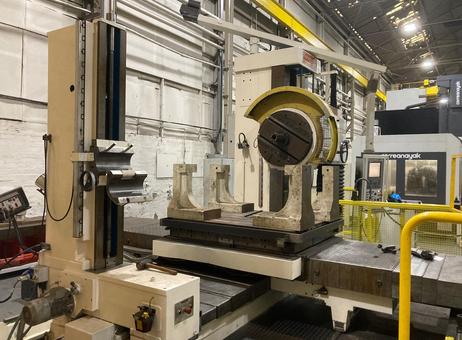

From the images, the machine appears well-maintained and clean, with no visible signs of damage. It features a control panel with a screen and buttons mounted on the front side for convenient operation. Safety is addressed with a yellow protective guard covering part of the spindle area, as well as a yellow metal safety fence surrounding the machine area labeled 'SF-125 HORIZONTAL BORER'. The machine is equipped with outriggers and an end steady to provide additional support and stability during machining.

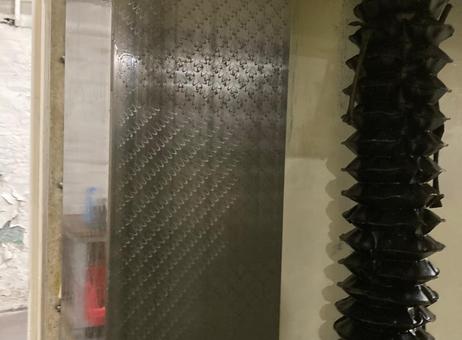

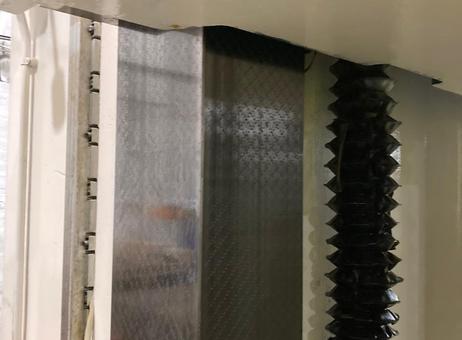

Some metal surfaces show slight wear and discoloration, which is typical for used industrial machinery but no major damage is evident. A protective accordion-style cover is present on a vertical metal component, likely serving to protect guideways or other critical parts.
This Kearns Richards SF 125 horizontal boring machine is a robust and capable unit suitable for demanding machining applications requiring precision and heavy workpiece handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Control: Heidenhian TNC 320
Table Size: 1800 x 1800mm
Max. Table Load: 8000kgs
Vertical Travel: 1800mm
Cross Travel: 2000mm
Long Travel: 2388mm
Spindle Dia. 125mm
Speed Range: 4.5 – 1120 RPM
Facing Head dia.: 800mm
Machine with:
Outriggers
End Steady
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 45 |
| Last activity | Oct. 28, 2026 |
Control: Heidenhian TNC 320
Table Size: 1800 x 1800mm
Max. Table Load: 8000kgs
Vertical Travel: 1800mm
Cross Travel: 2000mm
Long Travel: 2388mm
Spindle Dia. 125mm
Speed Range: 4.5 – 1120 RPM
Facing Head dia.: 800mm
Machine with:
Outriggers
End Steady
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a Kearns Richards SF 125 CNC horizontal boring machine, designed for heavy-duty machining tasks. The machine offers substantial travel capacities with 2388 mm in the X-axis (longitudinal travel), 2000 mm in the Y-axis (cross travel), and 1800 mm in the Z-axis (vertical travel). It is equipped with a large table measuring 1800 x 1800 mm, capable of supporting a maximum workpiece weight of up to 8000 kg, making it suitable for machining large and heavy components.
The spindle has a diameter of 125 mm and operates within a speed range of 4.5 to 1120 rpm, allowing for versatile machining operations. The machine includes a facing head with a diameter of 800 mm, which enhances its capability for facing and boring tasks.
Control is managed via a Heidenhain TNC 320 system, known for its precision and user-friendly interface, supporting complex CNC programming and operation.
From the images, the machine appears well-maintained and clean, with no visible signs of damage. It features a control panel with a screen and buttons mounted on the front side for convenient operation. Safety is addressed with a yellow protective guard covering part of the spindle area, as well as a yellow metal safety fence surrounding the machine area labeled 'SF-125 HORIZONTAL BORER'. The machine is equipped with outriggers and an end steady to provide additional support and stability during machining.
Some metal surfaces show slight wear and discoloration, which is typical for used industrial machinery but no major damage is evident. A protective accordion-style cover is present on a vertical metal component, likely serving to protect guideways or other critical parts.
This Kearns Richards SF 125 horizontal boring machine is a robust and capable unit suitable for demanding machining applications requiring precision and heavy workpiece handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
