Contact us to receive an offer.
| Manufacturer | KAWASAKI |
|---|---|
| Model | RA006L |
| Year | |
| Location | Poland
|
| Category | Robots |
| Application type | Welding |
| Number of axis | 6 |
| Reach in mm | 1650 mm |
| Payload in kgs | 6 kg |
| Control type | |
| Weight | 150 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 20/10/2026 |
| Product id | P250512043 |
| Language |
Индустриален робот KAWASAKI RA006L
Industrialní robot KAWASAKI RA006L
KAWASAKI RA006L Industriel robot
KAWASAKI RA006L Industrieroboter
Βιομηχανικό ρομπότ KAWASAKI RA006L
KAWASAKI RA006L Industrial Robot
Robotica industrial KAWASAKI RA006L
Robot industriel KAWASAKI RA006L
Industrijski robot KAWASAKI RA006L
KAWASAKI RA006L Ipari robot
Robot industriale KAWASAKI RA006L
Pramoninis robotas KAWASAKI RA006L
KAWASAKI RA006L Industriële robot
Robot KAWASAKI RA006L
Robô Industrial KAWASAKI RA006L
Robot industrial KAWASAKI RA006L
KAWASAKI RA006L Промышленный робот
Industrial Robot KAWASAKI RA006L
KAWASAKI RA006L Industrirobot
Endüstriyel robot KAWASAKI RA006L
|
The KAWASAKI RA006L is a 6-axis industrial robotic arm specifically designed for automated welding applications. It is well-suited for precise welding tasks, utilizing the MIG/MAG welding method with 0.8 mm diameter wire. The robot has a maximum reach of 1650 mm and can handle payloads up to 6 kg, making it adaptable for various welding operations. This model weighs approximately 150 kg and offers versatile mounting options, including floor and ceiling installation.
Equipped with multiple articulated joints driven by efficient servo motors, the RA006L provides a wide range of motion and high dynamics to perform welding in complex and hard-to-reach positions. The axis movement ranges include JT1 at ±180°, JT2 at +145°/-105°, JT3 at +150°/-163°, JT4 at ±270°, JT5 at ±145°, and JT6 at ±360°, with corresponding axis speeds up to 700°/s on the JT6 axis. Position repeatability is ±0.05 mm, ensuring consistent welding quality.

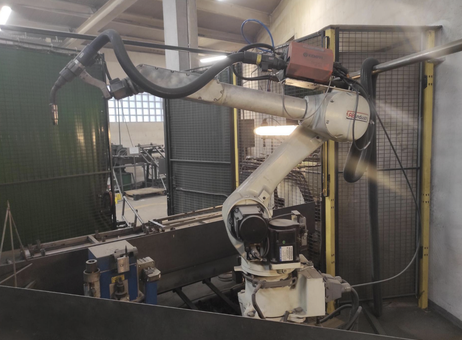

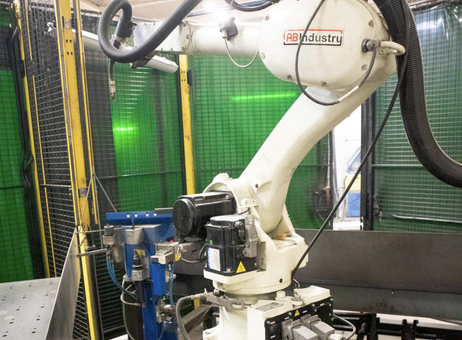

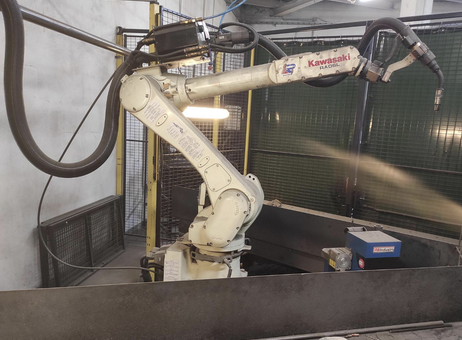

The robotic arm features a welding torch attachment and is connected with black flexible cable conduits for power and control. The unit is housed within a protective work cell that includes metal fencing and green safety screens to enhance operator safety. The robot and its surrounding area appear clean and well-maintained, with no visible external damage, indicating good physical condition.
Overall, the KAWASAKI RA006L robotic welding station offers a reliable and flexible solution for automating welding processes, combining a compact design with advanced movement capabilities and safety features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The KAWASAKI RA006L robotic welding station is designed for precise, automatic welding of details using the MIG/MAG method. Welding processes are carried out by an industrial robot located inside , which uses 0.8 mm diameter welding wire fed from a spool. An argon mixture with CO2 (92% Ar + 8% CO2) is used as the shielding gas. The station, equipped with two independent welding tables, is protected from the inside by SICK safety curtains, and from the outside by double doors with safety locks. Each door has a control panel with an emergency switch and other necessary buttons.
The 6-axis KAWASAKI RA006L robot was manufactured in 2013 in Japan by Kawasaki Heavy Industries, Ltd. Its slim design, reliability and simple operation make it an ideal solution for welding process automation. The increased range of arm movement allows for free operation in all positions, even in hard-to-reach places. In addition, in order to achieve excellent movement dynamics combined with high process reliability, each axis is driven by an efficient servo motor. The KAWASAKI welding robot weighs only 150 kg.
- number of axes : 6
- arm reach : 1650 mm
- maximum load capacity : 6 kg
- axis movement range
JT1 axis : ± 180°
JT2 axis : +145°/-105°
JT3 axis : +150°/-163°
JT4 axis : ± 270°
JT5 axis : ± 145°
JT6 axis : ± 360°
- axis movement speed
JT1 axis : 250°/s
JT2 axis : 250°/s
JT3 axis : 215°/s
JT4 axis : 365°/s
JT5 axis : 380°/s
JT6 axis : 700°/s
- position repeatability : ± 0.05 mm
- mounting : floor, ceiling
- ambient temperature : from 0°C to 45°C
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 425 |
| Last activity | Oct. 31, 2026 |
The KAWASAKI RA006L robotic welding station is designed for precise, automatic welding of details using the MIG/MAG method. Welding processes are carried out by an industrial robot located inside , which uses 0.8 mm diameter welding wire fed from a spool. An argon mixture with CO2 (92% Ar + 8% CO2) is used as the shielding gas. The station, equipped with two independent welding tables, is protected from the inside by SICK safety curtains, and from the outside by double doors with safety locks. Each door has a control panel with an emergency switch and other necessary buttons.
The 6-axis KAWASAKI RA006L robot was manufactured in 2013 in Japan by Kawasaki Heavy Industries, Ltd. Its slim design, reliability and simple operation make it an ideal solution for welding process automation. The increased range of arm movement allows for free operation in all positions, even in hard-to-reach places. In addition, in order to achieve excellent movement dynamics combined with high process reliability, each axis is driven by an efficient servo motor. The KAWASAKI welding robot weighs only 150 kg.
- number of axes : 6
- arm reach : 1650 mm
- maximum load capacity : 6 kg
- axis movement range
JT1 axis : ± 180°
JT2 axis : +145°/-105°
JT3 axis : +150°/-163°
JT4 axis : ± 270°
JT5 axis : ± 145°
JT6 axis : ± 360°
- axis movement speed
JT1 axis : 250°/s
JT2 axis : 250°/s
JT3 axis : 215°/s
JT4 axis : 365°/s
JT5 axis : 380°/s
JT6 axis : 700°/s
- position repeatability : ± 0.05 mm
- mounting : floor, ceiling
- ambient temperature : from 0°C to 45°C
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
