Contact us to receive an offer.
| Manufacturer | Kang Chyau Industry |
|---|---|
| Model | KMT-55 |
| Year | 2012 |
| Location | Poland
|
This Kang Chyau Industry plastic extrusion machine, model KMT-55, manufactured in 2012, is designed for processing HDPE and LDPE raw materials. It supports film thicknesses ranging from 0.015 to 0.1 mm for HDPE and 0.015 to 0.15 mm for LDPE, with film widths between 400 and 1000 mm for both materials. The machine has a capacity of 60 kg/h for HDPE and 75 kg/h for LDPE.
The extruder features a 55 mm diameter bi-metallic screw suitable for regranulates, with a length-to-diameter ratio of 32:1. It includes three heating zones with a total heater power of 12 kW and automatic temperature control. Cooling is provided by two 0.1 kW fans. The main motor power is variable speed at 21 kW.

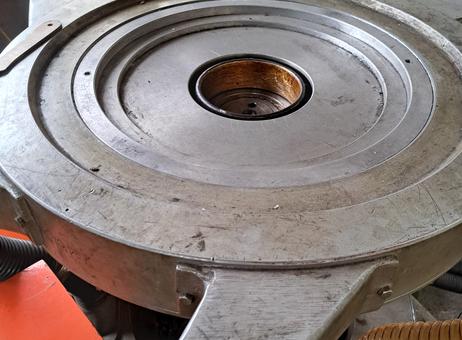

The extrusion head has diameters of 80/100 mm for HDPE and 150/200 mm for LDPE films, with cooling ring diameters of 150 mm and 300 mm respectively. The head includes two heating zones with a combined heater power of 14.6 kW and automatic temperature control. A 3.5 kW cooler is integrated.
The extraction system features rollers with a width of 1100 mm and an effective width of 1000 mm, driven by an AC motor of 1/3 kW with a speed range up to 65 m/min. The tensioning section includes rolls of the same width and effective width, driven by a DC motor of 0.7 kW.
The machine measures 5000 mm in length, 2200 mm in width, and 4500 mm in height.

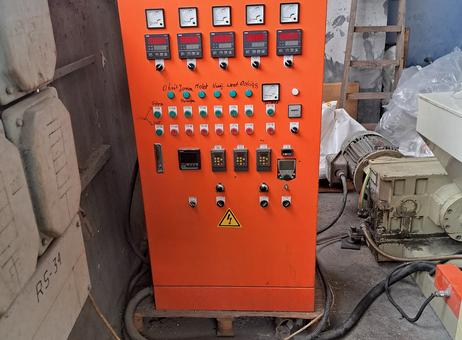

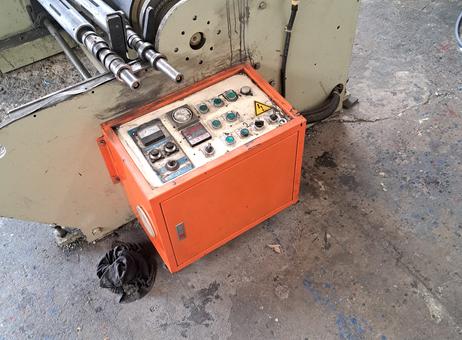

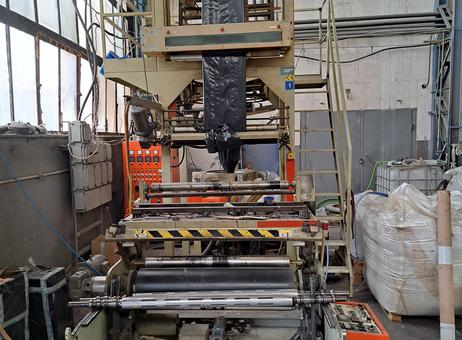

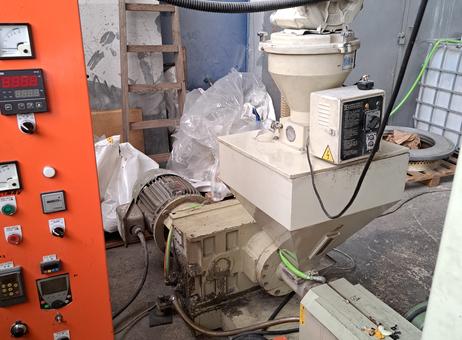

Visible components include large rollers and a metal frame structure, a white hopper connected with transparent hoses, and multiple control panels and electrical cabinets with buttons, switches, gauges, and digital displays. Metal stairs and a platform provide operator access. The machine shows signs of use with some wear, dirt, and scratches on surfaces, but no visible damage was noted. Overall, this is a comprehensive extrusion line suitable for producing plastic films with a variety of thicknesses and widths.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Raw material HDPE/LDPE
Film thickness H: 0.015-0.1mm, L: 0.015-0.15mm
Film width H: 400-1000mm, L: 400-1000mm
Capacity HDPE: 60 kg/h, LDPE: 75 kg/h
EXTRUDER
Screw diameter 55 mm, BI-METALLIC (suitable for regranulates)
L:D ratio (length : diameter) 32 : 1
Heater power 12 kW
Automatic temperature control
3 ZONES
Cooling fan power 0.1 kW x 2
Main motor power VS 21 kW
HEAD - Head diameter H: 80/100mm, L: 150/200mm
Cooling ring diameter H: 150 mm L: 300 mm
Heater power H: 7.6 kW L: 7 kW Automatic temperature control
2 ZONES
Cooler 3.5 kW
EXTRACTION
Roller width 1100 mm
Effective width 1000 mm
Drive motor power AC 1/3 kW
Motor speed range 65 m/min
TENSION
Roll width 1100 mm
Effective width 1000 mm
Drive motor power DC 0.7 kW
Machine dimensions LxWxH [mm]
5000 x 2200 x 4500
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2025 |
| Offers online | 3 |
| Last activity | Oct. 6, 2026 |
Raw material HDPE/LDPE
Film thickness H: 0.015-0.1mm, L: 0.015-0.15mm
Film width H: 400-1000mm, L: 400-1000mm
Capacity HDPE: 60 kg/h, LDPE: 75 kg/h
EXTRUDER
Screw diameter 55 mm, BI-METALLIC (suitable for regranulates)
L:D ratio (length : diameter) 32 : 1
Heater power 12 kW
Automatic temperature control
3 ZONES
Cooling fan power 0.1 kW x 2
Main motor power VS 21 kW
HEAD - Head diameter H: 80/100mm, L: 150/200mm
Cooling ring diameter H: 150 mm L: 300 mm
Heater power H: 7.6 kW L: 7 kW Automatic temperature control
2 ZONES
Cooler 3.5 kW
EXTRACTION
Roller width 1100 mm
Effective width 1000 mm
Drive motor power AC 1/3 kW
Motor speed range 65 m/min
TENSION
Roll width 1100 mm
Effective width 1000 mm
Drive motor power DC 0.7 kW
Machine dimensions LxWxH [mm]
5000 x 2200 x 4500
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Kang Chyau Industry plastic extrusion machine, model KMT-55, manufactured in 2012, is designed for processing HDPE and LDPE raw materials. It supports film thicknesses ranging from 0.015 to 0.1 mm for HDPE and 0.015 to 0.15 mm for LDPE, with film widths between 400 and 1000 mm for both materials. The machine has a capacity of 60 kg/h for HDPE and 75 kg/h for LDPE.
The extruder features a 55 mm diameter bi-metallic screw suitable for regranulates, with a length-to-diameter ratio of 32:1. It includes three heating zones with a total heater power of 12 kW and automatic temperature control. Cooling is provided by two 0.1 kW fans. The main motor power is variable speed at 21 kW.
The extrusion head has diameters of 80/100 mm for HDPE and 150/200 mm for LDPE films, with cooling ring diameters of 150 mm and 300 mm respectively. The head includes two heating zones with a combined heater power of 14.6 kW and automatic temperature control. A 3.5 kW cooler is integrated.
The extraction system features rollers with a width of 1100 mm and an effective width of 1000 mm, driven by an AC motor of 1/3 kW with a speed range up to 65 m/min. The tensioning section includes rolls of the same width and effective width, driven by a DC motor of 0.7 kW.
The machine measures 5000 mm in length, 2200 mm in width, and 4500 mm in height.
Visible components include large rollers and a metal frame structure, a white hopper connected with transparent hoses, and multiple control panels and electrical cabinets with buttons, switches, gauges, and digital displays. Metal stairs and a platform provide operator access. The machine shows signs of use with some wear, dirt, and scratches on surfaces, but no visible damage was noted. Overall, this is a comprehensive extrusion line suitable for producing plastic films with a variety of thicknesses and widths.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
