| Manufacturer | JONES & SHIPMAN |
|---|---|
| Model | 1400 |
| Year | |
| Location | Italy
|
Machine: JONES & SHIPMAN Model 1400 Surface Grinder.
Working Capacity
- Nominal capacity: 635 x 203 x 408 mm (25.00 x 7.99 x 16.06 in).
Working Range
- Longitudinal (X): 635 mm (25.00 in).
- Vertical (Z): 279 mm (10.98 in).
- Cross table (Y): 203 mm (7.99 in).
- Spindle axis to table surface distance: 83–360 mm (3.27–14.17 in).
Table
- Table surface: 610 x 178 mm (24.02 x 7.01 in).
- Traverse speed: 3–21 (units as per provided documentation).
Increments
- Automatic vertical feed: 0.001–0.006 mm/min (0.0000–0.0002 ipm).
- Cross feed increment: 0.178–1.78 mm/min (0.0070–0.0701 ipm).
Grinding Spindle
- Spindle power: 1.5 kW.
- Rotation speed: 2570 rpm.
- Support: bearings.
- Wheel: wheel band thickness 20 mm (0.79 in); max wheel diameter 200 mm (7.87 in); wheel bore diameter 31.75 mm (1.25 in).
Extras and Mechanical Data
- Motor power/installed: 3 HP (3 kW indicated previously as total installed power).
- Total machine weight: 1633 Kg.
- Machine dimensions: 2350 x 1050 x 1650 mm (92.52 x 41.34 x 64.96 in).
- Display: yes.
- Filtration system: yes.

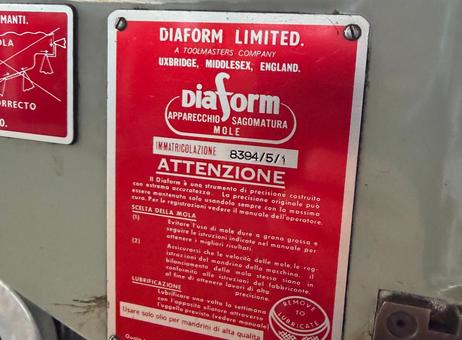

- Diaform: yes.
Condition
- Technical condition: as-is, where-is.
Note
The data provided are taken from information available to us and, where possible, from the manufacturers. Despite good faith in collecting data, due to the nature and complexity of the goods, such information may be incomplete or inaccurate; therefore, they cannot be guaranteed and do not constitute a contractual obligation. Verification and direct inspection of the machine before purchase are recommended.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category: Grinding
Type: Tangential
Brand: JONES & SHIPMAN
Model: 1400
Capacity: 635x203x408 mm
WORKING RANGE
Longitudinal (X): 635 mm
Vertical (Z): 279 mm
Transverse table (Y): 203 mm
Distance between spindle axis and table surface: 83-360 mm
TABLE
Surface: 610x178 mm
Translation speed: 3-21
INCREMENTS
Automatic vertical: 0.001-0.006 mm/min
Transverse: 0.178-1.78 mm/min
GRINDING SPINDLE
Spindle power: 1.5 kW
Rotation speed: 2570 rpm
Grinding wheel bearing support:
Grinding wheel thickness: 20 mm
Maximum grinding wheel diameter: 200 mm
Hole diameter: 31.75 mm
EXTRA
Total installed power: 3 kW
Total machine weight: 1633 kg
Display: Yes
Filtering system: Yes
Machine dimensions: 2350X1050X1650 mm
Diaform: Yes
Technical condition: as-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 181 |
| Last activity | Oct. 29, 2026 |
GAMBA GIOVANNI S.R.L., known by its brand Gamba Macchine, is a trusted Italian company with over 70 years of experience in the machine tool industry. Based in Gardone Val Trompia in the heart of Italy’s industrial region, the company specializes in the sale of high-quality new and used metalworking machinery for chip removal processes.
Founded in 1950 by Giovanni Gamba, the company has grown into a reference point for precision and reliability in the European industrial market. Today, it is managed by the second and third generations of the Gamba family who continue to uphold a strong tradition of technical expertise and customer-oriented service.
Gamba Macchine operates from two strategic locations in the province of Brescia, offering a wide range of machinery from leading international manufacturers. Their deep knowledge of production processes allows them to assist clients in finding the most suitable and efficient solutions for their machining needs.
With a strong focus on quality, performance, and after-sales support, Gamba Macchine is the ideal partner for companies looking to invest in reliable and cost-effective metalworking solutions. Whether you need a single machine or a complete production line, Gamba Macchine delivers value, expertise, and confidence.
Category: Grinding
Type: Tangential
Brand: JONES & SHIPMAN
Model: 1400
Capacity: 635x203x408 mm
WORKING RANGE
Longitudinal (X): 635 mm
Vertical (Z): 279 mm
Transverse table (Y): 203 mm
Distance between spindle axis and table surface: 83-360 mm
TABLE
Surface: 610x178 mm
Translation speed: 3-21
INCREMENTS
Automatic vertical: 0.001-0.006 mm/min
Transverse: 0.178-1.78 mm/min
GRINDING SPINDLE
Spindle power: 1.5 kW
Rotation speed: 2570 rpm
Grinding wheel bearing support:
Grinding wheel thickness: 20 mm
Maximum grinding wheel diameter: 200 mm
Hole diameter: 31.75 mm
EXTRA
Total installed power: 3 kW
Total machine weight: 1633 kg
Display: Yes
Filtering system: Yes
Machine dimensions: 2350X1050X1650 mm
Diaform: Yes
Technical condition: as-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Machine: JONES & SHIPMAN Model 1400 Surface Grinder.
Working Capacity
- Nominal capacity: 635 x 203 x 408 mm (25.00 x 7.99 x 16.06 in).
Working Range
- Longitudinal (X): 635 mm (25.00 in).
- Vertical (Z): 279 mm (10.98 in).
- Cross table (Y): 203 mm (7.99 in).
- Spindle axis to table surface distance: 83–360 mm (3.27–14.17 in).
Table
- Table surface: 610 x 178 mm (24.02 x 7.01 in).
- Traverse speed: 3–21 (units as per provided documentation).
Increments
- Automatic vertical feed: 0.001–0.006 mm/min (0.0000–0.0002 ipm).
- Cross feed increment: 0.178–1.78 mm/min (0.0070–0.0701 ipm).
Grinding Spindle
- Spindle power: 1.5 kW.
- Rotation speed: 2570 rpm.
- Support: bearings.
- Wheel: wheel band thickness 20 mm (0.79 in); max wheel diameter 200 mm (7.87 in); wheel bore diameter 31.75 mm (1.25 in).
Extras and Mechanical Data
- Motor power/installed: 3 HP (3 kW indicated previously as total installed power).
- Total machine weight: 1633 Kg.
- Machine dimensions: 2350 x 1050 x 1650 mm (92.52 x 41.34 x 64.96 in).
- Display: yes.
- Filtration system: yes.
- Diaform: yes.
Condition
- Technical condition: as-is, where-is.
