Contact us to receive an offer.
| Manufacturer | JOHNFORD |
|---|---|
| Model | VTC 880 + APC + ATC |
| Year | 2001 |
| Location | United Kingdom
|

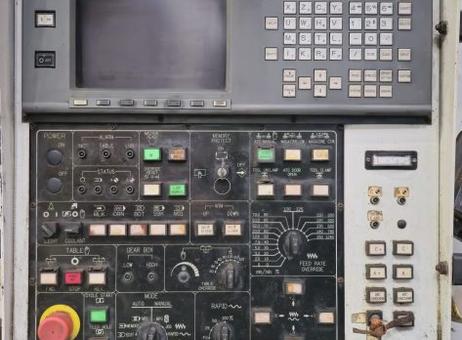

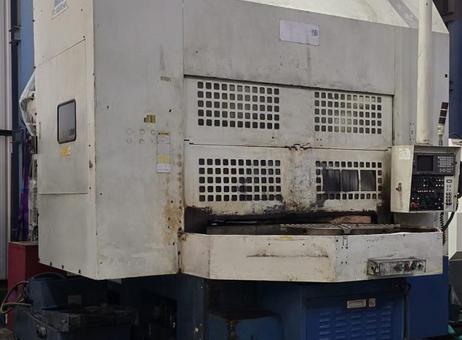

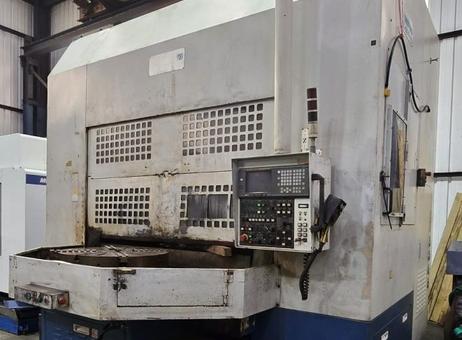

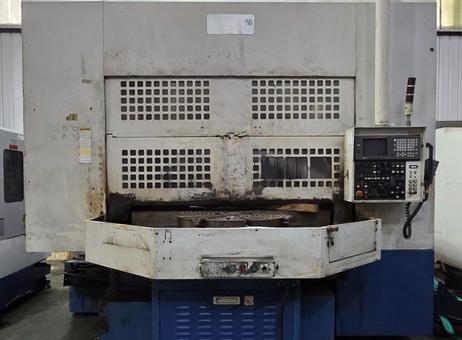

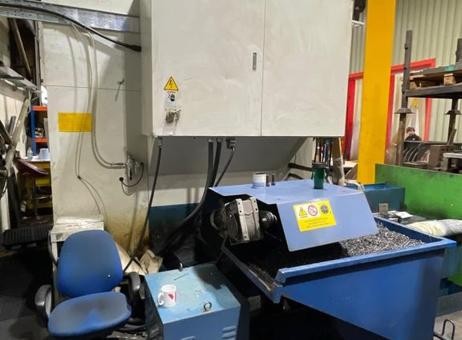

This listing is for a JOHNFOORD vertical turret lathe, model VTC 880 + APC + ATC, manufactured in 2001 in Taiwan. It features a FANUC Series 18-T CNC control system, which includes a screen, multiple buttons, an emergency stop button, a coiled cable handset, and a stack light for status indication. The machine is designed for machining with a maximum swing diameter of 1,000 mm and a maximum cutting diameter of 900 mm, with a standard cutting diameter of 800 mm and a maximum cutting height of 800 mm. It has traverse capabilities of 50 to 810 mm on the X axis and 880 mm on the Z axis. The spindle speed ranges from 10 to 800 rpm, powered by a spindle motor rated between 18.5 and 22 kW. The spindle features a bearing diameter of 330 mm and an A2-11 spindle nose. The turret incorporates an automatic tool changer with two ATCs, each holding 12 tools, compatible with BT 50 and CAPTO tool shank sizes. Additional features include full C-axis milling and tapping, and high-pressure coolant systems. The machine is equipped with a swarf conveyor for chip removal and paper coolant filtration. The vertical turret lathe is mounted on wooden blocks, and the base is painted blue with the upper body in white. There are visible signs of wear, rust, dirt, and paint discoloration on multiple areas, especially around the working area and the protective enclosure surrounding the large circular worktable. Metal shavings and oil stains are present in the floor area nearby. The CNC control panel shows some wear and faded labels. A blue chip conveyor with warning labels and a collection bin is attached at the back. An electrical cabinet or control box is mounted on the top rear side of the machine. Overall, this unit includes a full set of manuals and a good range of tooling. The machine appears to be in a used condition with visible wear and environmental marks but no explicit information on operational status is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
MAKE JOHNFORD, MADE IN TAIWAN
MODEL VTC 880 + APC + ATC
YEAR 2001
CONTROL FANUC 18 T
MAX SWING DIA 1,000 mm
MAX CUTTING DIA 900.0 mm
STANDARD CUTTING DIA 800.0 mm
MAX CUTTING HEIGHT 800.0 mm
TRAVERSES X AXIS 50.0 mm to 810.0 mm Z AXIS 880.0 mm
SPINDLE SPEEDS 10 to 800 RPM
SPINDLE BEARING DIA 330.0 mm
SPINDLE NOSE A2 - 11
SPINDLE MOTOR 18.5 / 22 kW
TURRET TYPE AUTOMATIC TOOL CHANGER
NO OF ATC 2 X 12 ATC
TOOLS SHANK SIZE BT 50 AND CAPTO
PLUS FULL C AXIS MILLING TAPPING X, Z, C, A AND B AXES HIGH PRESSURE COOLANT PAPER COOLANT FILTRATION SWARF CONVEYOR FULLY OPERATIONAL FULL SET OF MANUALS GOOD RANGE OF TOOLING
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 31 |
| Last activity | Oct. 21, 2026 |
MAKE JOHNFORD, MADE IN TAIWAN
MODEL VTC 880 + APC + ATC
YEAR 2001
CONTROL FANUC 18 T
MAX SWING DIA 1,000 mm
MAX CUTTING DIA 900.0 mm
STANDARD CUTTING DIA 800.0 mm
MAX CUTTING HEIGHT 800.0 mm
TRAVERSES X AXIS 50.0 mm to 810.0 mm Z AXIS 880.0 mm
SPINDLE SPEEDS 10 to 800 RPM
SPINDLE BEARING DIA 330.0 mm
SPINDLE NOSE A2 - 11
SPINDLE MOTOR 18.5 / 22 kW
TURRET TYPE AUTOMATIC TOOL CHANGER
NO OF ATC 2 X 12 ATC
TOOLS SHANK SIZE BT 50 AND CAPTO
PLUS FULL C AXIS MILLING TAPPING X, Z, C, A AND B AXES HIGH PRESSURE COOLANT PAPER COOLANT FILTRATION SWARF CONVEYOR FULLY OPERATIONAL FULL SET OF MANUALS GOOD RANGE OF TOOLING
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a JOHNFOORD vertical turret lathe, model VTC 880 + APC + ATC, manufactured in 2001 in Taiwan. It features a FANUC Series 18-T CNC control system, which includes a screen, multiple buttons, an emergency stop button, a coiled cable handset, and a stack light for status indication. The machine is designed for machining with a maximum swing diameter of 1,000 mm and a maximum cutting diameter of 900 mm, with a standard cutting diameter of 800 mm and a maximum cutting height of 800 mm. It has traverse capabilities of 50 to 810 mm on the X axis and 880 mm on the Z axis. The spindle speed ranges from 10 to 800 rpm, powered by a spindle motor rated between 18.5 and 22 kW. The spindle features a bearing diameter of 330 mm and an A2-11 spindle nose. The turret incorporates an automatic tool changer with two ATCs, each holding 12 tools, compatible with BT 50 and CAPTO tool shank sizes. Additional features include full C-axis milling and tapping, and high-pressure coolant systems. The machine is equipped with a swarf conveyor for chip removal and paper coolant filtration. The vertical turret lathe is mounted on wooden blocks, and the base is painted blue with the upper body in white. There are visible signs of wear, rust, dirt, and paint discoloration on multiple areas, especially around the working area and the protective enclosure surrounding the large circular worktable. Metal shavings and oil stains are present in the floor area nearby. The CNC control panel shows some wear and faded labels. A blue chip conveyor with warning labels and a collection bin is attached at the back. An electrical cabinet or control box is mounted on the top rear side of the machine. Overall, this unit includes a full set of manuals and a good range of tooling. The machine appears to be in a used condition with visible wear and environmental marks but no explicit information on operational status is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 31 |
| Last activity | Oct. 21, 2026 |
