Contact us to receive an offer.
| Manufacturer | Johnford |
|---|---|
| Model | VMC 824 |
| Year | 1992 |
| Location | Denmark
|
This Johnford VMC 824 is a vertical machining center designed for versatile metalworking applications. Manufactured in 1992, it features a robust construction with overall dimensions of 3100 mm in length, 2350 mm in width, and 2850 mm in height, and it weighs approximately 5000 kg. The machine offers substantial travel capacities with a longitudinal (X-axis) travel of 900 mm, cross (Y-axis) travel of 500 mm, and vertical (Z-axis) travel of 570 mm, allowing for a wide range of machining operations.
The worktable measures 1100 mm in length and 400 mm in width, equipped with T-slots for secure workpiece mounting. The spindle utilizes a BT 40 taper and operates at speeds ranging from 36 to 6000 rpm, powered by a 7.5 kW spindle motor. The tool changer is an automatic type with 24 tool pockets, facilitating efficient tool changes during operation.

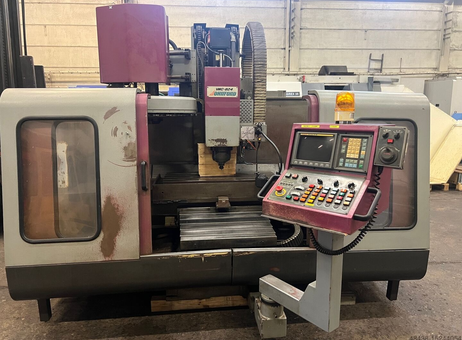

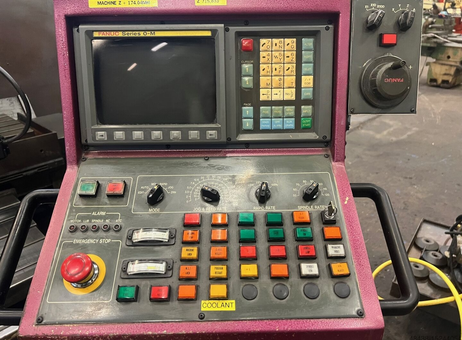

The control system is a Fanuc OM, mounted on a swing arm to the right side of the machine, providing accessible and flexible operation. The machine is enclosed with sliding doors for safety and chip containment. Visible signs of wear include paint chipping and surface wear on the enclosure doors and front panel, which is typical for a machine of this age.

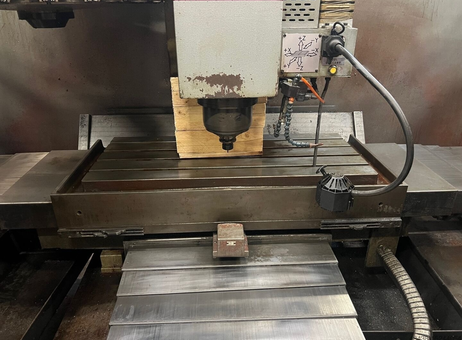

Inside, the worktable and spindle head are clearly visible, with the spindle head labeled as VMC-824 OHIFFORD. The overall condition indicates regular use but no specific information about functionality or maintenance history is provided. This machining center is suitable for shops seeking a reliable vertical machining center with a proven design and substantial working envelope.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Longitudinal travel (X):
900 mm
Cross travel (Y):
500 mm
Vertical travel (Z):
570 mm
Spindle taper:
BT 40
Control system:
Fanuc OM manuf.
Table Size:
1100 x 400 mm
Spindle speeds:
36-6000 rpm
Spindle motor:
7.5/5 Kw
Toolchanger ATC:
24 pos.
Spindel Running time:
4412 Hours
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
