| Manufacturer | JOBS |
|---|---|
| Model | Jomach 241 |
| Year | 2007 |
| Location | Germany
|

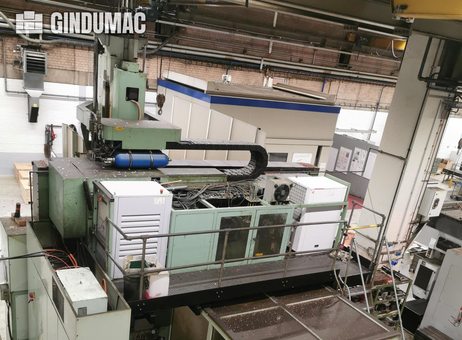

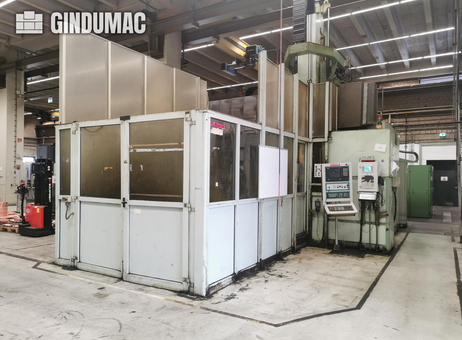

This listing is for a JOBS Jomach 241 gantry milling machine, manufactured in 2007. It is a CNC 5‑axis gantry mill equipped with a Siemens Sinumerik 840D control (software version 3.7 MMc 103, JO’CAM NC‑Steuerung). The machine has a substantial work area and heavy‑duty table: the worktable measures 3,000 x 1,500 mm and is rated for a maximum load of 12,000 kg. The machine’s overall layout footprint/ground area is approximately 11,200 x 7,000 mm and the basic machine weight is listed at 50,000 kg. X/Y/Z travels are 3,400 mm, 2,500 mm and 1,250 mm respectively, with a column spacing (distance between columns) of 2,200 mm. The unit provides full 5‑axis capability via C and A axis headings (C: ±400°; A: ±110° / 220° total) and a twist‑head pivot point of 250 mm.
Spindle and toolroom information: spindle taper HSK‑A‑63 with spindle speed up to 4,000 rpm and a main spindle motor rating reported as 47 kW. The machine offers high positional resolution on the linear axes (minimum step 0.001 mm) and on the angular axes. Linear axis speeds are specified up to 16,000 mm/min and angular axis speeds are also documented. Tool handling options include a chain‑type tool magazine with 16 or 32 positions and optional static rack/tooling arrangements (JO’TOOL capacity listed from 12 up to 360 tools). Pallet options are documented (pallet size 2,500 x 1,500 mm; pallet load capacity 8,000 kg).
Other technical and service items recorded for this model include three‑phase electrical supply ranges and an estimated electric power requirement in the documentation. The listing references optional equipment and spares that may be available: angle head, fork heads, head magazine, multiple twist heads, quills (with and without head), a 3‑A head mount, a replacement spindle, and axis motors. Documentation is reported to be available (multiple folders including manuals, repair invoices and a defect report from 2006).
All specifications above are provided from the machine documentation and listing information. No claims are made here about operational condition or testing; please refer to the seller’s documentation and inspection for condition, service history and commissioning details.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 5-axis JOBS Jomach 241 gantry milling machine was manufactured in 2007. It features an impressive X-axis travel of 3,400 mm, Y-axis travel of 2,500 mm, and Z-axis travel of 1,250 mm. The worktable size is 3,000 x 1,500 mm with a load capacity of 12,000 kg. If you are looking to get high-quality milling capabilities, consider the JOBS Jomach 241 machine we have for sale. Contact us for further details regarding this machine.- Control System: Siemens Sinumerik 840D (Software version 3.7 MMc 103, JO'CAM NC-Steuerung)
- Power On Hours: 91,055.12 h
- Spindle Hours: 34,019.20 h
- X Axis Travel (Longitudinal): 3,400 mm (+ 2,000 mm for pallet changers)
- Y Axis Travel (Transversal): 2,500 mm
- Z Axis Travel (Vertical): 1,250 mm
- Distance Between Columns: 2,200 mm

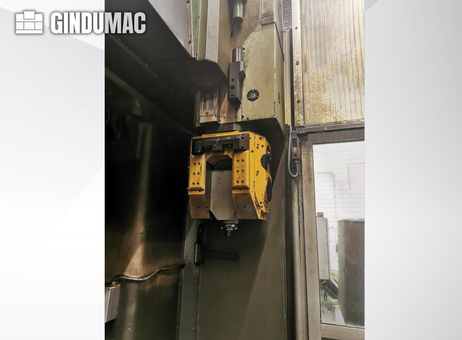

- C Axis (Twist Head - First Rotation): ±400°
- A Axis (Twist Head - Second Rotation): 220° (±110°)
- Linear Axes Min Position Step (X-Y-Z): 0.001 mm (0.00004 in) / 0.0005 mm
- Angular Axes Min Position Step (C-A): 1° (6,000 Nm)
- Linear Axes Speed (X-Y-Z): 5 to 16,000 mm/min
- Angular Axes Speed (C/A): 50 / 30 deg/sec
- Spindle Taper: HSK-A-63
- Spindle Speed: 500–4,000 RPM
- Spindle Motor Power S6 (S1): 25 kW / 17 kW (15 kW) / 20 kW / 18.5 kW (15 kW) / 47 kW (39 kW)
- Spindle Motor Type: Siemens Type DMR 160.AS.4.FFS
- Twist Head Pivot Point: 250 mm

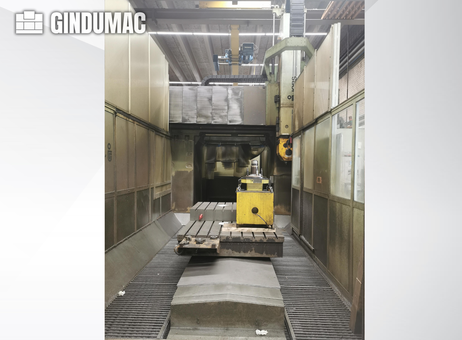

- Worktable Size: 3,000 x 1,500 mm
- Worktable Load Capacity: 12,000 kg
- Pallet Size: 2,500 x 1,500 mm
- Pallet Load Capacity: 8,000 kg
- Tool Magazine Capacity: 16 / 32 positions (Chain type)
- JO'TOOL Static Rack Capacity: 12 to 360 tools
- Electric Power Supply: ~70 to 96 kVA
- Three-Phase Power Supply: 380V - 50Hz / 480V - 60Hz
- Basic Machine Weight: 50,000 kg
- Machine Dimensions (Layout Ground Area): 11,000 mm x 7,000 mm / 11,200 mm x 6,400 mm

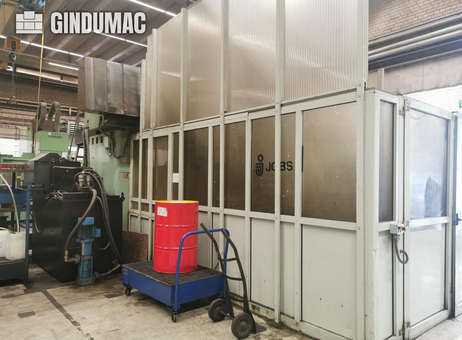

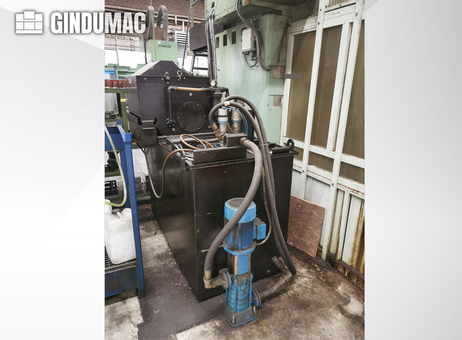

- Compressed Air Pumps / Coolant Tank: Johnson (Sealing Material: Viton)
- Optional Equipment & Accessories: Angle head, 2x fork heads, head magazine, 2x twist heads, quill with head, quill without head, 3-A head mount, complete replacement spindle, all new or repaired axis motors in stock, documentation comprising approx. 4 folders (including manuals, repair invoices, defect report from 2006 available)

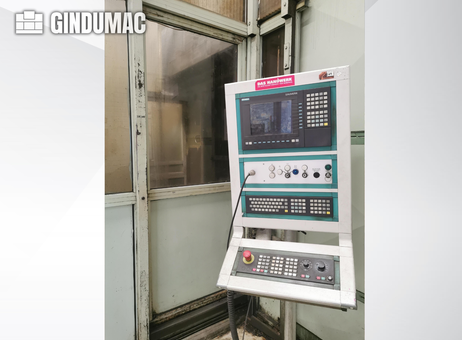

Control Brand: SIEMENS
Control Model: Sinumerik 840D
Machine Weight: 50000 kg
Number of Axes: 5
Spindle Power: 47 kW
Spindle Speed: 4000 RPM
Table Length: 3000 mm
Table Load: 12000 kg
Table Width: 1500 mm
Taper Size: HSK 63
X-axis Travel: 3400 mm
Y-axis Travel: 2500 mm
Z-axis Travel: 1250 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2095 |
| Last activity | Oct. 27, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 5-axis JOBS Jomach 241 gantry milling machine was manufactured in 2007. It features an impressive X-axis travel of 3,400 mm, Y-axis travel of 2,500 mm, and Z-axis travel of 1,250 mm. The worktable size is 3,000 x 1,500 mm with a load capacity of 12,000 kg. If you are looking to get high-quality milling capabilities, consider the JOBS Jomach 241 machine we have for sale. Contact us for further details regarding this machine.- Control System: Siemens Sinumerik 840D (Software version 3.7 MMc 103, JO'CAM NC-Steuerung)
- Power On Hours: 91,055.12 h
- Spindle Hours: 34,019.20 h
- X Axis Travel (Longitudinal): 3,400 mm (+ 2,000 mm for pallet changers)
- Y Axis Travel (Transversal): 2,500 mm
- Z Axis Travel (Vertical): 1,250 mm
- Distance Between Columns: 2,200 mm
- C Axis (Twist Head - First Rotation): ±400°
- A Axis (Twist Head - Second Rotation): 220° (±110°)
- Linear Axes Min Position Step (X-Y-Z): 0.001 mm (0.00004 in) / 0.0005 mm
- Angular Axes Min Position Step (C-A): 1° (6,000 Nm)
- Linear Axes Speed (X-Y-Z): 5 to 16,000 mm/min
- Angular Axes Speed (C/A): 50 / 30 deg/sec
- Spindle Taper: HSK-A-63
- Spindle Speed: 500–4,000 RPM
- Spindle Motor Power S6 (S1): 25 kW / 17 kW (15 kW) / 20 kW / 18.5 kW (15 kW) / 47 kW (39 kW)
- Spindle Motor Type: Siemens Type DMR 160.AS.4.FFS
- Twist Head Pivot Point: 250 mm
- Worktable Size: 3,000 x 1,500 mm
- Worktable Load Capacity: 12,000 kg
- Pallet Size: 2,500 x 1,500 mm
- Pallet Load Capacity: 8,000 kg
- Tool Magazine Capacity: 16 / 32 positions (Chain type)
- JO'TOOL Static Rack Capacity: 12 to 360 tools
- Electric Power Supply: ~70 to 96 kVA
- Three-Phase Power Supply: 380V - 50Hz / 480V - 60Hz
- Basic Machine Weight: 50,000 kg
- Machine Dimensions (Layout Ground Area): 11,000 mm x 7,000 mm / 11,200 mm x 6,400 mm
- Compressed Air Pumps / Coolant Tank: Johnson (Sealing Material: Viton)
- Optional Equipment & Accessories: Angle head, 2x fork heads, head magazine, 2x twist heads, quill with head, quill without head, 3-A head mount, complete replacement spindle, all new or repaired axis motors in stock, documentation comprising approx. 4 folders (including manuals, repair invoices, defect report from 2006 available)
Control Brand: SIEMENS
Control Model: Sinumerik 840D
Machine Weight: 50000 kg
Number of Axes: 5
Spindle Power: 47 kW
Spindle Speed: 4000 RPM
Table Length: 3000 mm
Table Load: 12000 kg
Table Width: 1500 mm
Taper Size: HSK 63
X-axis Travel: 3400 mm
Y-axis Travel: 2500 mm
Z-axis Travel: 1250 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
