Contact us to receive an offer.
| Manufacturer | JEAN PERROT |
|---|---|
| Model | Synchro 170T x 4000mm |
| Year | 1990 |
| Location | France
|

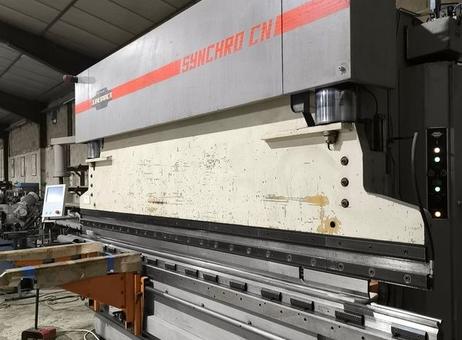

JEAN PERROT Synchro 170T x 4000mm CNC Press Brake with CybTouch 12 Control
This industrial press brake offers a bending capacity of 170 tons and a bending length of 4000 mm. The distance between uprights is 3750 mm, and it features a throat depth of 400 mm, suitable for a variety of sheet metal bending applications.
The machine is equipped with a hydraulic tool crowning and clamping system to enhance bending precision. Safety is ensured through front and rear light curtains.
Control and Software:

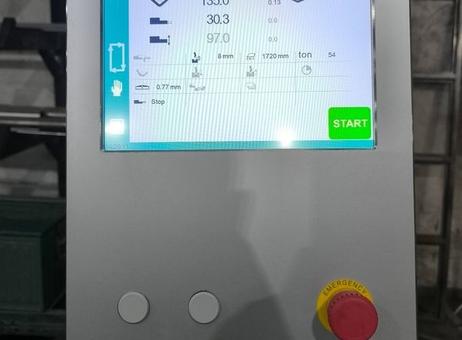

The press brake includes a Cybelec CybTouch 12 CNC system with a 12-inch color touchscreen, enabling optimized management of the Y1, Y2, X, and R axes. The CNC control panel features an emergency stop button and displays parameters such as angles, dimensions, and material settings.
Included Accessories:

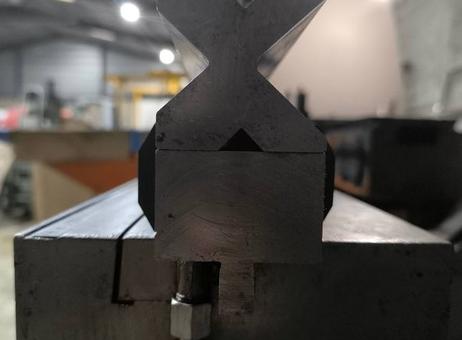

The sale includes tooling such as punches and dies, specifically an 8mm V-block (full length), multi-V-block adapter (full length), and multi-V-blocks in sizes 16, 22, 35, and 50 mm. The tooling appears clean and in good condition with no visible damage. Also included is complete technical documentation, comprising original manuals and the CybTouch 12 manual.
Back Gauge System:

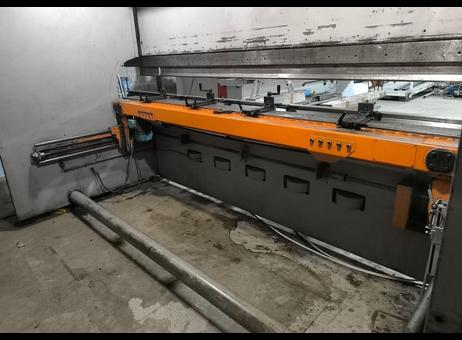

An orange-colored back gauge system with multiple adjustable stops and mechanical arms is installed, providing precise positioning for bending operations.
Condition and Maintenance:
The machine shows signs of use, including some wear, scratches, and surface dirt consistent with workshop use. The front panel and base have visible wear but no apparent structural damage. The tooling shows signs of use without visible damage.
Retrofit Information:
A major retrofit was performed in July 2024 by a specialist, including installation of the CybTouch 12 CNC, upgrades to the measuring systems with high-precision scales (including a Heidenhain scale for the R axis), complete replacement of electronics and wiring, and new hydraulic amplifier modules for pressure, crowning, and servo valve management.
This press brake is a robust and versatile machine suitable for demanding metal forming tasks, combining proven mechanical design with modern CNC control and precision upgrades.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
JEAN PERROT Synchro 170T x 4000mm Press Brake - CybTouch 12 CNC
Technical Specifications:
Capacity: 170 tons / Bending length: 4000 mm.
Clearance between flanges: 3750 mm.
Throat depth: 400 mm.
Equipment: Hydraulic tool crowning and clamping system.
Safety: Front and rear light curtains.
Software: Parameterized bending simulation included. ALMA BEND
Included in the sale:
Tooling (punches and dies). 8mm V-block (full length), multi-V-block adapter (full length), multi-V-blocks (full length) 16-22-35-50,
Complete technical documentation (original manuals + CybTouch 12 manual).
Bending simulation software configured for the press brake, and program generator for the CNC
The machine underwent a major retrofit in July 2024, performed by a specialist (invoice available). It is in perfect working order and can be seen powered on.
Retrofit Details (July 2024):
New CNC: Installation of a Cybelec CybTouch 12 with a 12" color touchscreen. Optimized management of the Y1, Y2, X, and R axes.
Measuring System Upgrades: The height adjustment scales were modified/replaced with high-precision systems, including a Heidenhain measuring scale for the R axis.
Electronics and Wiring: Complete replacement of the wiring harness, installation of a new switching power supply and new encoders.
Hydraulic Management: New amplifier modules for managing the pressure, crown, and Moog servo valves.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the capacity of this JEAN PERROT Synchro press brake?
This JEAN PERROT Synchro press brake has a capacity of 170 tons.
What is the bending length of the machine?
This equipment has a bending length of 4000 mm.
What type of CNC control does this JEAN PERROT Synchro press brake have?
This JEAN PERROT Synchro press brake is equipped with a CybTouch 12 CNC control.
What is the capacity of this JEAN PERROT Synchro bending press?
This JEAN PERROT Synchro bending press has a capacity of 170 tons.
What is the working length of the machine?
This equipment has a working length of 4000 mm.
What type of control does this JEAN PERROT Synchro bending press have?
This JEAN PERROT Synchro bending press is equipped with a CN CybTouch 12 control.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – small or medium company |
| Active since | 2022 |
| Offers online | 2 |
| Last activity | June 17, 2026 |
JEAN PERROT Synchro 170T x 4000mm Press Brake - CybTouch 12 CNC
Technical Specifications:
Capacity: 170 tons / Bending length: 4000 mm.
Clearance between flanges: 3750 mm.
Throat depth: 400 mm.
Equipment: Hydraulic tool crowning and clamping system.
Safety: Front and rear light curtains.
Software: Parameterized bending simulation included. ALMA BEND
Included in the sale:
Tooling (punches and dies). 8mm V-block (full length), multi-V-block adapter (full length), multi-V-blocks (full length) 16-22-35-50,
Complete technical documentation (original manuals + CybTouch 12 manual).
Bending simulation software configured for the press brake, and program generator for the CNC
The machine underwent a major retrofit in July 2024, performed by a specialist (invoice available). It is in perfect working order and can be seen powered on.
Retrofit Details (July 2024):
New CNC: Installation of a Cybelec CybTouch 12 with a 12" color touchscreen. Optimized management of the Y1, Y2, X, and R axes.
Measuring System Upgrades: The height adjustment scales were modified/replaced with high-precision systems, including a Heidenhain measuring scale for the R axis.
Electronics and Wiring: Complete replacement of the wiring harness, installation of a new switching power supply and new encoders.
Hydraulic Management: New amplifier modules for managing the pressure, crown, and Moog servo valves.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the capacity of this JEAN PERROT Synchro press brake?
This JEAN PERROT Synchro press brake has a capacity of 170 tons.
What is the bending length of the machine?
This equipment has a bending length of 4000 mm.
What type of CNC control does this JEAN PERROT Synchro press brake have?
This JEAN PERROT Synchro press brake is equipped with a CybTouch 12 CNC control.
What is the capacity of this JEAN PERROT Synchro bending press?
This JEAN PERROT Synchro bending press has a capacity of 170 tons.
What is the working length of the machine?
This equipment has a working length of 4000 mm.
What type of control does this JEAN PERROT Synchro bending press have?
This JEAN PERROT Synchro bending press is equipped with a CN CybTouch 12 control.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
JEAN PERROT Synchro 170T x 4000mm CNC Press Brake with CybTouch 12 Control
This industrial press brake offers a bending capacity of 170 tons and a bending length of 4000 mm. The distance between uprights is 3750 mm, and it features a throat depth of 400 mm, suitable for a variety of sheet metal bending applications.
The machine is equipped with a hydraulic tool crowning and clamping system to enhance bending precision. Safety is ensured through front and rear light curtains.
Control and Software:
The press brake includes a Cybelec CybTouch 12 CNC system with a 12-inch color touchscreen, enabling optimized management of the Y1, Y2, X, and R axes. The CNC control panel features an emergency stop button and displays parameters such as angles, dimensions, and material settings.
Included Accessories:
The sale includes tooling such as punches and dies, specifically an 8mm V-block (full length), multi-V-block adapter (full length), and multi-V-blocks in sizes 16, 22, 35, and 50 mm. The tooling appears clean and in good condition with no visible damage. Also included is complete technical documentation, comprising original manuals and the CybTouch 12 manual.
Back Gauge System:
An orange-colored back gauge system with multiple adjustable stops and mechanical arms is installed, providing precise positioning for bending operations.
Condition and Maintenance:
The machine shows signs of use, including some wear, scratches, and surface dirt consistent with workshop use. The front panel and base have visible wear but no apparent structural damage. The tooling shows signs of use without visible damage.
Retrofit Information:
A major retrofit was performed in July 2024 by a specialist, including installation of the CybTouch 12 CNC, upgrades to the measuring systems with high-precision scales (including a Heidenhain scale for the R axis), complete replacement of electronics and wiring, and new hydraulic amplifier modules for pressure, crowning, and servo valve management.
This press brake is a robust and versatile machine suitable for demanding metal forming tasks, combining proven mechanical design with modern CNC control and precision upgrades.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
