| Manufacturer | Jean Perrot |
|---|---|
| Model | APH 300 ton x 3100 mm NC |
| Year | |
| Location | Belgium
|

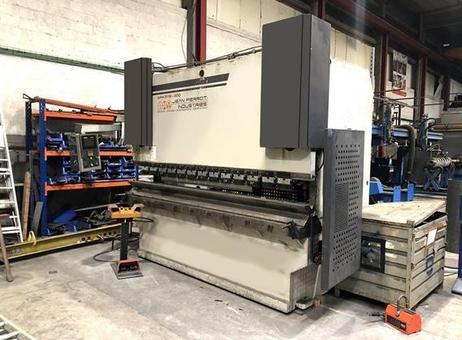

Jean Perrot APH hydraulic press brake, model APH 300 ton x 3100 mm NC. Capacity: 300 ton with a bending length of 3100 mm. Control: Delem DAC-310T CNC backgauge control. Axes: 3 axes (Y1 / Y2 / X). Key working dimensions: throat depth 400 mm, maximum stroke 280 mm, distance between table and ram up to 500 mm, passage between uprights 2550 mm. Machine footprint/size: length 3700 mm, width 2000 mm, height 2900 mm. Electric motor power listed as 30 kW. Weight listed as 17 ton. Table width noted as 380 mm. Folding length / bending length: 3100 mm. Type/Model: APH 300 ton x 3100 mm NC (hydraulic press brake). Backgauge: CNC backgauge indicated in the technical information.

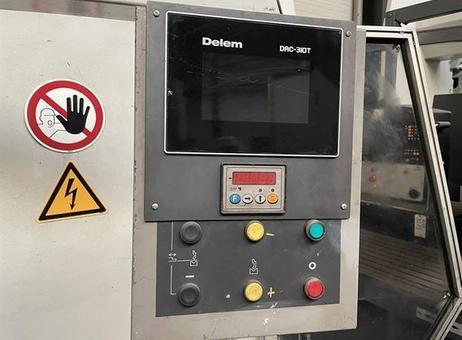

Controls and operator interface: Delem DAC-310T control with touchscreen display and an operator keypad with colored push buttons including emergency stop. Electrical/safety decals are present on the machine housing. A floor-mounted foot pedal is listed as an accessory.

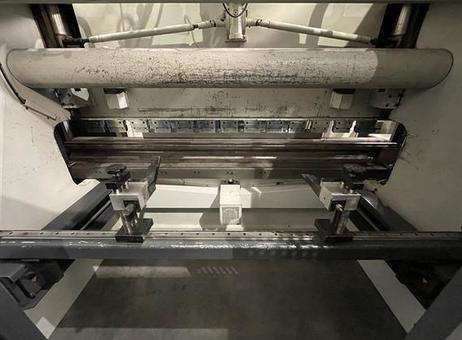

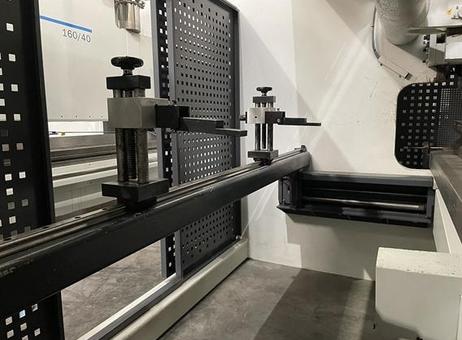

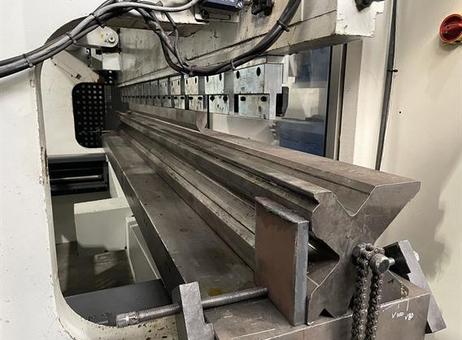

Work area, tooling and fixtures: Long bed with parallel rails and slots for tooling fixtures. An internal clamping/positioning assembly with two adjustable jaws on a rail and two vertical adjustment posts with handwheels is included. Chains/fixtures and a metal plate with hardware are present near the front edge of the bed. Internal components include parallel guide rails and a cylindrical ram/roller spanning the width. Some electrical hoses/cables are routed inside the machine cavity.
Condition notes: Interior and working surfaces show signs of use, including residue and some staining on metal components. Perforated side panels are present behind the clamping area. Protective side cabinets are fitted at both ends of the machine. No claims are made about operational condition, testing, refurbishment, or warranty.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
» Request a personalised quote
Print
Download
Favorites
Back
Technical information
Capacity300 ton x 3100 mm
BackgaugeCNC
ControlDelem DAC-310T
Passage between uprights2550 mm
Max stroke280 mm
Max distance between table -- ram500 mm
Depth of throat400 mm
Table width380 mm
Electric motor (power)30 kW
Length3700 mm
Depth2000 mm
Height2900 mm
Weight17 ton
Capacity300 ton
Bending length3100 mm
Additional info
3 axes: Y1/Y2/ X
Type/Model: APH 300 ton x 3100 mm NC
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.01] Hydraulic press brakes
Brand: Jean Perrot
» Request a personalised quote
3 axes: Y1/Y2/ X
