| Manufacturer | JDM |
|---|---|
| Model | 700-S |
| Year | 2021 |
| Location | Poland
|
| Category | Cellophane / overwrapping machines |
| Length x width x height | 11500.0 × 1893.0 × 2100.0 |
| Weight | 6500 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 20/10/2026 |
| Product id | P241202372 |
| Language |
Машина за опаковане на фолио JDM 700-S
Balicí stroj JDM 700-S
JDM 700-S foliepakkemaskine
JDM 700-S Folienverpackungsmaschine
Μηχανή συσκευασίας φιλμ JDM 700-S
JDM 700-S film packaging machine
Envasadora de film JDM 700-S
Machine d'emballage de films JDM 700-S
JDM 700-S stroj za pakiranje filmova
JDM 700-S fóliacsomagoló gép
Macchina per il confezionamento di film JDM 700-S
JDM 700-S plėvelės pakavimo mašina
JDM 700-S folieverpakkingsmachine
Maszyna do pakowania w folię JDM 700-S
Máquina de embalagem de película JDM 700-S
Mașină de ambalat filme JDM 700-S
Упаковочная машина для пленки JDM 700-S
JDM 700-S mašina za pakovanje filma
JDM 700-S filmförpackningsmaskin
JDM 700-S film paketleme makinesi
|
The JDM 700-S is a film packaging machine manufactured in 2021 by JU DING MACHINERY (SHANGHAI) CO., LTD., China. This machine is designed for the fully automatic production of side and bottom sealed film bags in various sizes, suitable for mass production environments. It features two PANASONIC inverter-controlled unwinders that ensure precise feeding of the film material to the working area. The film is accurately measured, cut, and sealed, with additional functionality to create holes in the finished bags. Completed bags are then stacked on the receiving table to form small packages, streamlining the packaging process.
The machine has a stainless steel housing and weighs approximately 6500 kg, with dimensions of 11500 mm in length, 1893 mm in width, and 2100 mm in height. It includes a vertical material welder capable of welding widths of 5 mm up to 25 mm and a horizontal material welder with welding widths ranging from 5 mm to 14 mm. The machine is equipped with devices for producing EUROSLOT holes (30x10xR2.5), round holes (6 mm diameter), and V-shaped holes (2x4 mm).
Key components include temperature controllers (16 units), multiple AC servomotors for main and feed drives, planetary gear speed reducers, CONTEC photocell sensors for unwinding, and a cutting knife controlled by a 1 kW servo motor. Pneumatic units and actuators from AIR TAC are integrated, along with sensors from DATALOGIC for mark and color detection. Additional components include MINDMAN solenoid valves, K-type thermocouples, LANG NING solid-state relays, MEANWELL power switches, proximity switches, NSK gear bearings, and SCHNEIDER contactors in the control cabinet.

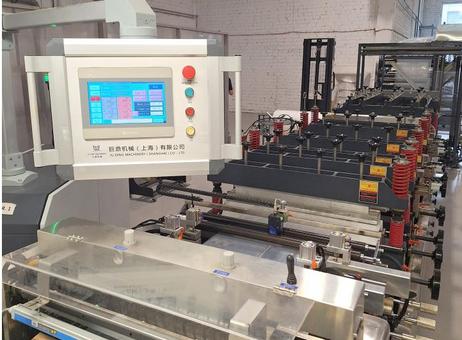

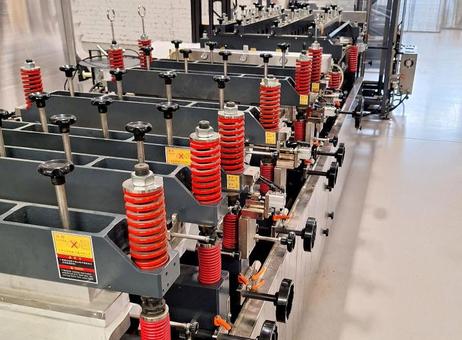

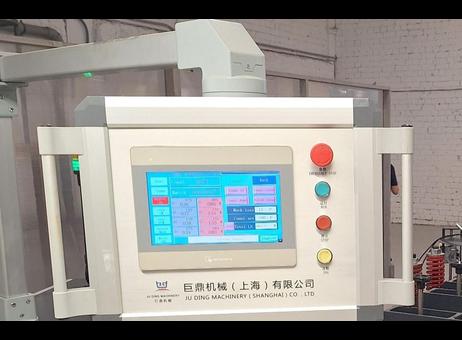

The machine frame features multiple adjustment knobs and springs, and a stainless steel protective cover is present over part of the machine. A touchscreen control panel with multiple buttons, including an emergency stop, allows for user-friendly operation. The machine appears clean and well-maintained, indicating careful upkeep. This comprehensive setup makes the JDM 700-S a robust choice for efficient film bag production.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The JDM 700-S film packaging machine was manufactured in 2021 in China by JU DING MACHINERY (SHANGHAI) CO., LTD. Equipped with components from the best brands, the machine is designed for fully automatic, mass production of side and bottom sealed film bags of various sizes. The production process uses two PANASONIC inverter-controlled unwinders, which ensure precise feeding of the film to the working area. The film is then precisely measured, properly cut and sealed, and holes are made in the finished bags. After the process is complete, the bags go to the receiving table, where they are stacked one on top of the other to create small packages. In this way, the JDM 700S film bag and bag production line offers high-quality products with minimal work. The total weight of the machine is 6500 kg.
The JDM 700 S film bag making machine is fully complete and consists of the following components:
- vertical material welder 740 mm, 5 mm, 7 mm, 10 mm, 14 mm, 25 mm
- horizontal material welder 840 mm, 5 mm, 7 mm, 10 mm, 14 mm
- horizontal device for making EUROSLOT holes (30x10xR2.5), round holes (diameter 6 mm) and V-shaped holes (2x4)
- vertical and horizontal material cooling
- temperature controller (16 pcs.)
- main drive: 5 kW AC servomotor (4 pcs.)
- main drive speed reducer: planetary gear (VGM)
- feed drive: PANASONIC 2 kW AC servomotor (2 pcs.) - unwinder drive: PANASONIC 0.75 kW inverter (2 pcs.) - unwinding speed reducer 0.4 kW (2
pcs.)
pcs.)
- unwinding sensor: CONTEC photocell (4 pcs.)
- cutting knife controlled by 1 kW servo motor (4 pcs.)
- trim winder controlled by inverter
- AIR TAC pneumatic unit
- DATALOGIC mark and color sensor
- 3" pneumatic expansion shaft (2 pcs.)
- MINDMAN solenoid valve
- vertical and horizontal insulating rod (2 pcs.)
- AIR TAC pneumatic actuator
- K-type thermocouple (2 pcs.)
- LANG NING solid-state relay (2 pcs.)
- MEANWELL power switch
- proximity switch (2 pcs.)
- NSK gear bearing
- SCHNEIDER contactor switch in the control cabinet
- stainless steel machine housing
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
