Contact us to receive an offer.
| Manufacturer | JAFO |
|---|---|
| Model | FWD 32 |
| Year | 1976 |
| Location | Poland
|

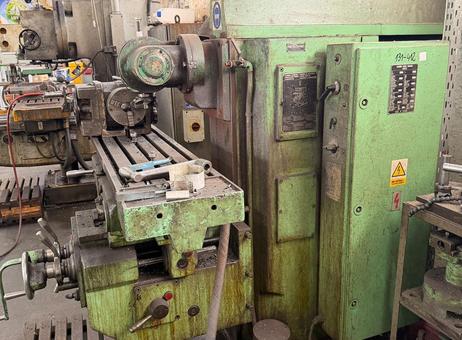

The JAFO Jarocin FWD 32 is a universal milling machine manufactured in 1976, designed for versatile machining tasks. It features a robust construction with overall dimensions of 2000 mm in length, 1474 mm in width, and 2080 mm in height, and a total weight of 2270 kg.

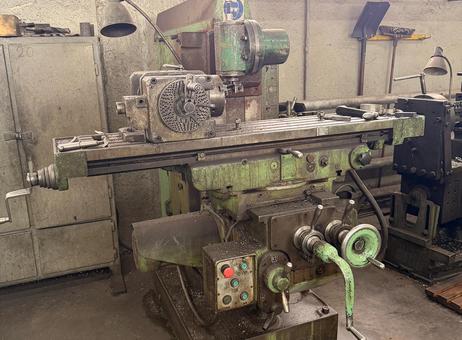

The machine offers a working travel range of 820 mm along the X-axis, 235 mm on the Y-axis, and 400 mm on the Z-axis, providing ample workspace for various milling operations. The table is equipped with T-slots, facilitating secure mounting of workpieces and accessories. A rotary indexing head is mounted on the table, enhancing the machine's capability for precise angular positioning during machining. An adjustable lamp is attached to illuminate the work area, improving visibility during operation.
Control of the machine is managed via handwheels and feed levers located on the front and side panels, along with various switches and levers on the control panel. The spindle taper conforms to ISO 40 standards, and the machine is equipped with 16 spindle speeds and 21 feed speeds, allowing for flexible machining parameters. The main spindle motor delivers 5.5 kW of power, complemented by a 1.5 kW feed motor, totaling an installed power of 7.1 kW.
The machine is mounted on a solid base, ensuring stability during operation. Power cables and hoses are connected to the machine as part of its setup. The exterior shows signs of use, including some dirt, wear, rust, and oil stains, indicating extensive prior operation, but the structure remains intact. A metal plate attached to the machine provides technical specifications and wiring diagrams, though it shows some wear and rust around the edges.
Overall, the JAFO Jarocin FWD 32 universal milling machine is a substantial and versatile piece of equipment suitable for a range of milling tasks in an industrial workshop setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
JAFO Jarocin FWD 32 Universal Milling Machine
The milling machine is in good condition - lightly used in the company's mechanical workshop.
Technical specifications of the JAFO Jarocin FWD 32 universal milling machine from 1976:
Workspace and Tables
Table working surface: (315 x 1250) mm
Longitudinal travel (X): 820 mm (manual) / 850 mm (mechanical)
Cross travel (Y): 235 mm
Vertical travel (Z): 400 mm (mechanical) / 420 mm (manual)
Maximum distance between spindle axis and table: 400 mm [1, 2]
Spindle and Drive
Spindle taper: ISO 40
Number of rotational speeds: 16
Number of feed speeds: 21
Main motor (spindle) power: 5.5 kW
Feed motor power: 1.5 kW
Total installed power: 7.1 kW
Dimensions and Weight
Total machine weight: 2270 kg
External dimensions: 2000 x 1474 x 2080 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2024 |
| Offers online | 31 |
| Last activity | Oct. 25, 2026 |
JAFO Jarocin FWD 32 Universal Milling Machine
The milling machine is in good condition - lightly used in the company's mechanical workshop.
Technical specifications of the JAFO Jarocin FWD 32 universal milling machine from 1976:
Workspace and Tables
Table working surface: (315 x 1250) mm
Longitudinal travel (X): 820 mm (manual) / 850 mm (mechanical)
Cross travel (Y): 235 mm
Vertical travel (Z): 400 mm (mechanical) / 420 mm (manual)
Maximum distance between spindle axis and table: 400 mm [1, 2]
Spindle and Drive
Spindle taper: ISO 40
Number of rotational speeds: 16
Number of feed speeds: 21
Main motor (spindle) power: 5.5 kW
Feed motor power: 1.5 kW
Total installed power: 7.1 kW
Dimensions and Weight
Total machine weight: 2270 kg
External dimensions: 2000 x 1474 x 2080 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The JAFO Jarocin FWD 32 is a universal milling machine manufactured in 1976, designed for versatile machining tasks. It features a robust construction with overall dimensions of 2000 mm in length, 1474 mm in width, and 2080 mm in height, and a total weight of 2270 kg.
The machine offers a working travel range of 820 mm along the X-axis, 235 mm on the Y-axis, and 400 mm on the Z-axis, providing ample workspace for various milling operations. The table is equipped with T-slots, facilitating secure mounting of workpieces and accessories. A rotary indexing head is mounted on the table, enhancing the machine's capability for precise angular positioning during machining. An adjustable lamp is attached to illuminate the work area, improving visibility during operation.
Control of the machine is managed via handwheels and feed levers located on the front and side panels, along with various switches and levers on the control panel. The spindle taper conforms to ISO 40 standards, and the machine is equipped with 16 spindle speeds and 21 feed speeds, allowing for flexible machining parameters. The main spindle motor delivers 5.5 kW of power, complemented by a 1.5 kW feed motor, totaling an installed power of 7.1 kW.
The machine is mounted on a solid base, ensuring stability during operation. Power cables and hoses are connected to the machine as part of its setup. The exterior shows signs of use, including some dirt, wear, rust, and oil stains, indicating extensive prior operation, but the structure remains intact. A metal plate attached to the machine provides technical specifications and wiring diagrams, though it shows some wear and rust around the edges.
Overall, the JAFO Jarocin FWD 32 universal milling machine is a substantial and versatile piece of equipment suitable for a range of milling tasks in an industrial workshop setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
