| Manufacturer | Jaeggi Bern |
|---|---|
| Model | 36,2 m2 |
| Year | 1996 |
| Location | Netherlands
|

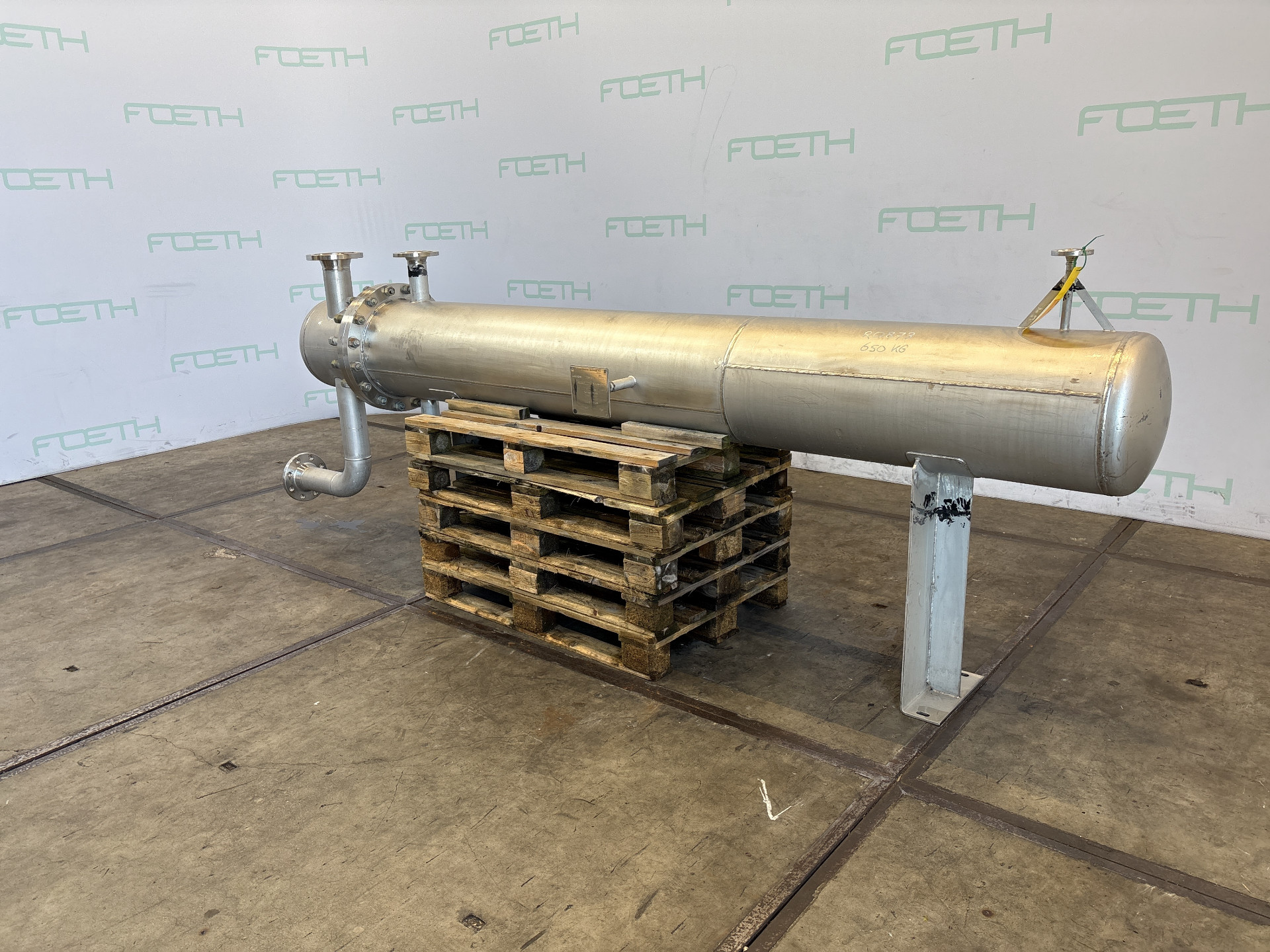

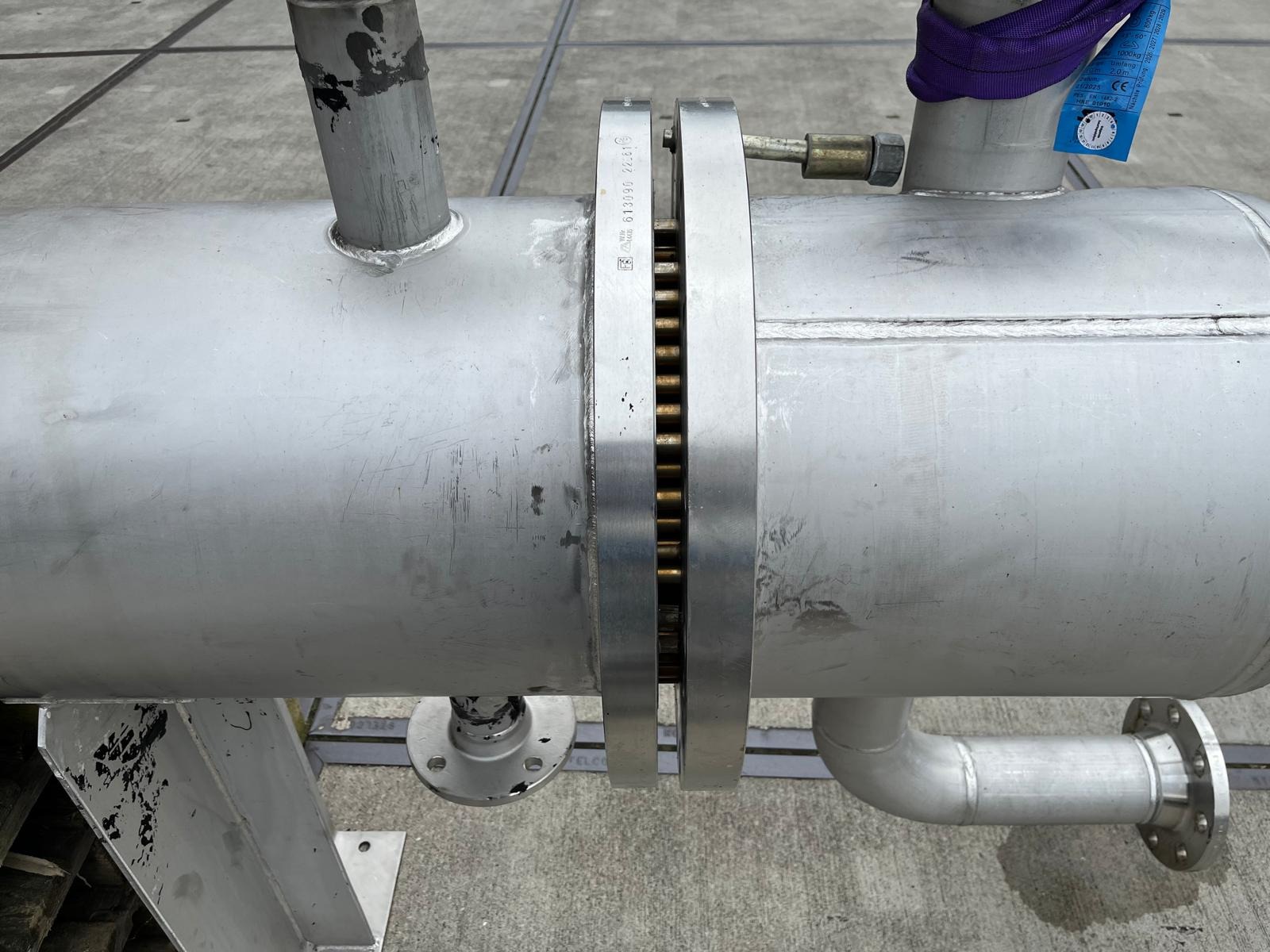

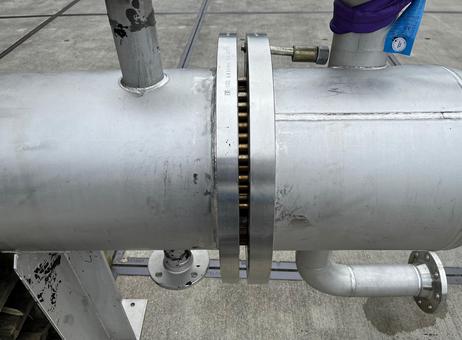

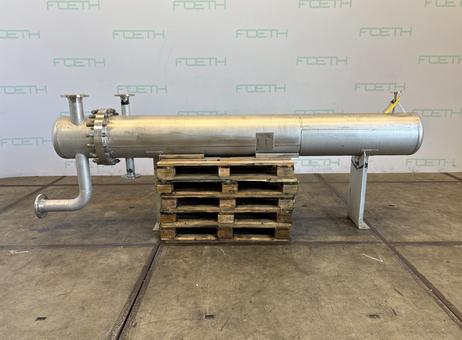

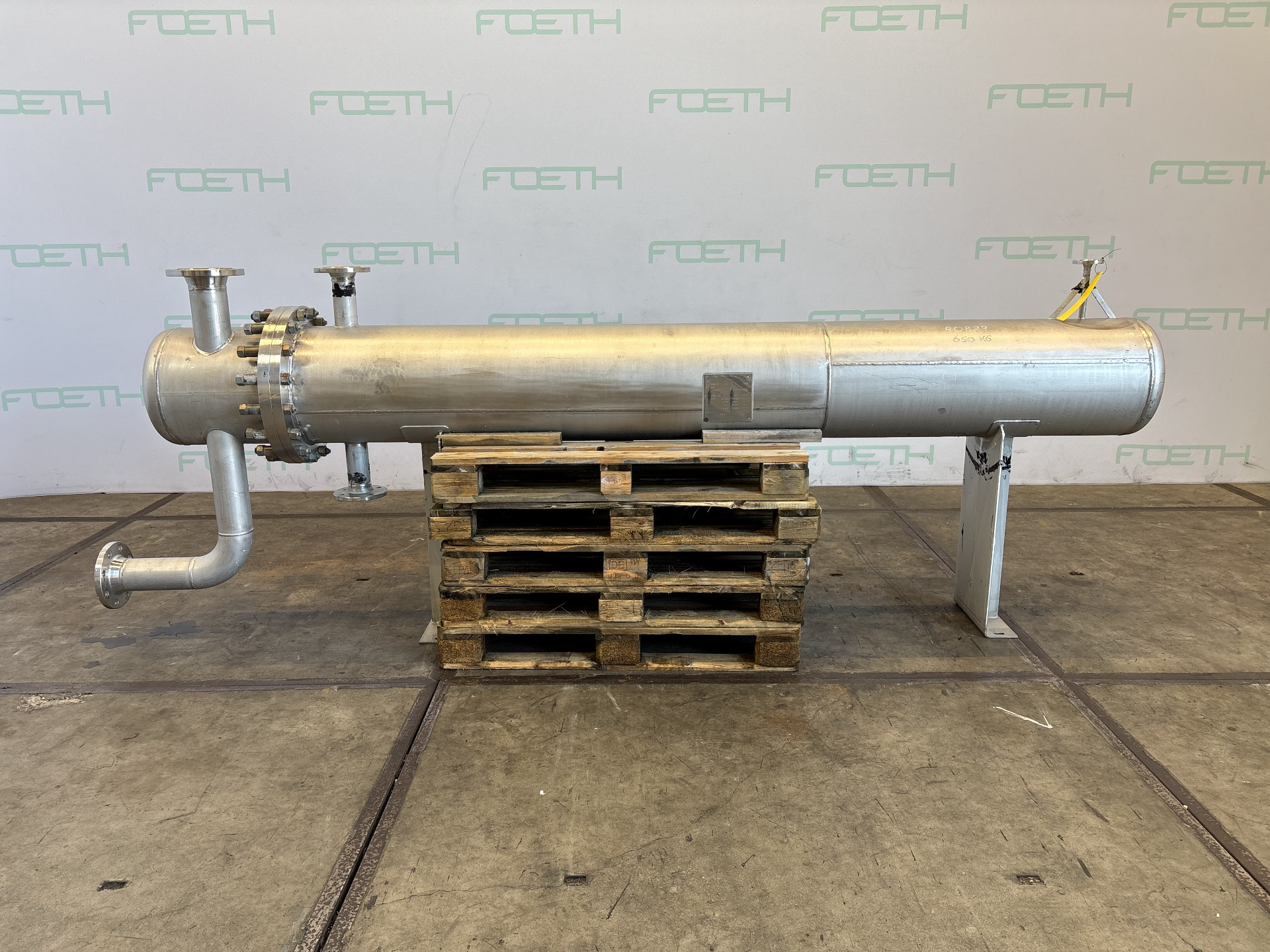

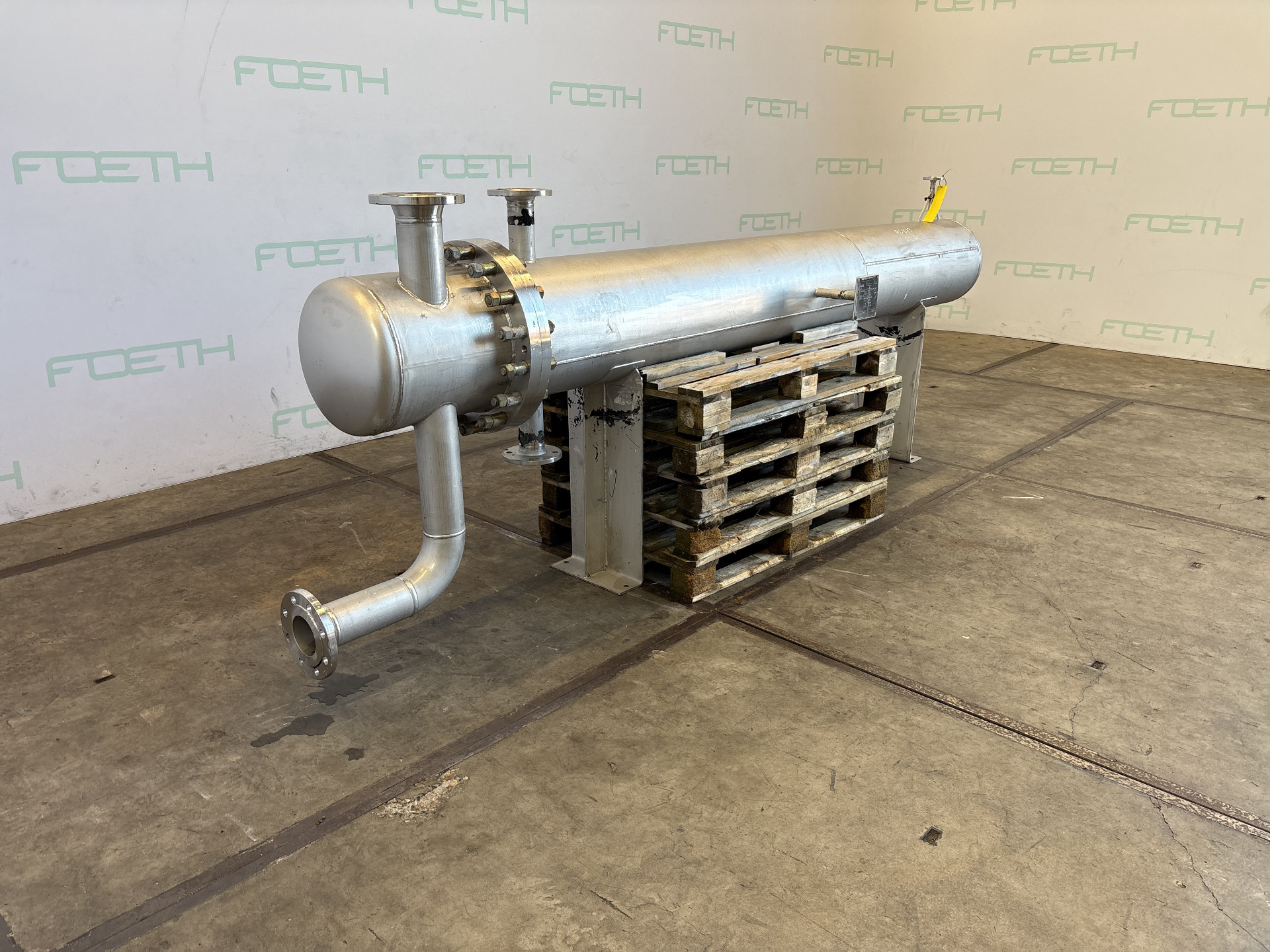

Jaeggi Bern shell-and-tube heat exchanger, model 36,2 m2, with a listed heating surface of 36.2 m². The exchanger is described as horizontal and U-type, and it is mounted on legs. The shell and tubes are stainless steel, specified as material 1.4435 (316L).
The stated working pressure is 6 bar on the shell side and 10 bar on the tube side. The maximum temperature is 200 °C. The listed tube capacity is 164 l and the shell capacity is 206 l. The tube bundle has 120 tubes, each with a 16 mm diameter and a 3300 mm length; tube wall thickness is 1 mm. The shell is listed with a 407 mm diameter, 2964 mm length and 4 mm wall thickness.

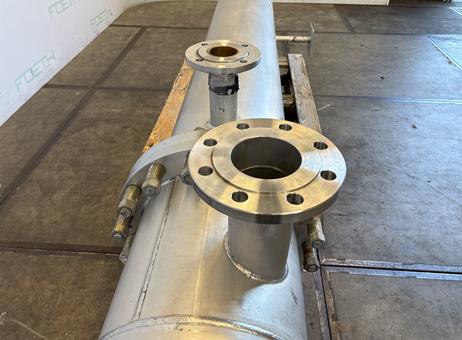

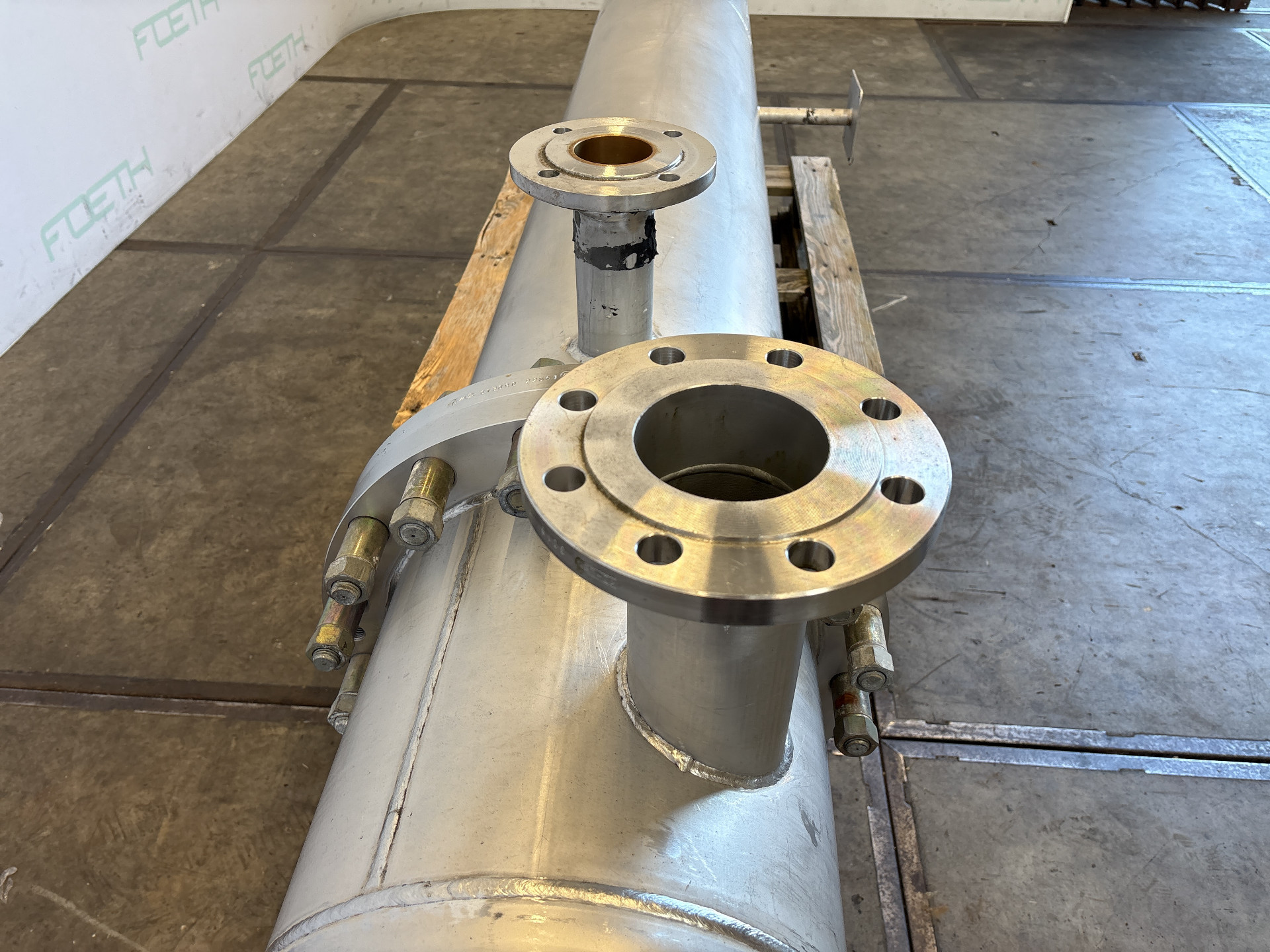

Connections are specified as DN656 (2x) and DN15 (1x) on the shell, with DN100 (2x) on the cover. Overall dimensions are 3700 mm long, 600 mm wide and 1300 mm high. The stated weight is 650 kg.
The description provides the heat exchanger’s construction, pressure ratings, temperature limit, surface area, capacities, tube and shell details, connections, dimensions and weight. No additional operating or condition information is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General
SKU: R0873
Make: Jaeggi Guentner AG (CH)
Location: Barneveld
Type: 36,2 m2
Pressure
Working pressure shell: 6 Bar
Working pressure tubes: 10 Bar
Main Features
Shell (Material): Stainless steel
Tube (Material): Stainless steel
Surface: 36.2 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Horizontal: ✓
Heating surface: 36.2 m2
Tube capacity: 164 l
U-type: ✓
Number of tubes:: 120
Tube diameter: 16 mm
Tube length: 3300 mm
Wall thickness tubes: 1 mm
Max. temperature: 200°C
Shell capacity: 206 l
Shell diameter: 407 mm
Shell length: 2964 mm
Wall thickness shell: 4 mm
Max. temperature: 200°C
Shell connections: DN656 (2x), DN15 (1x)

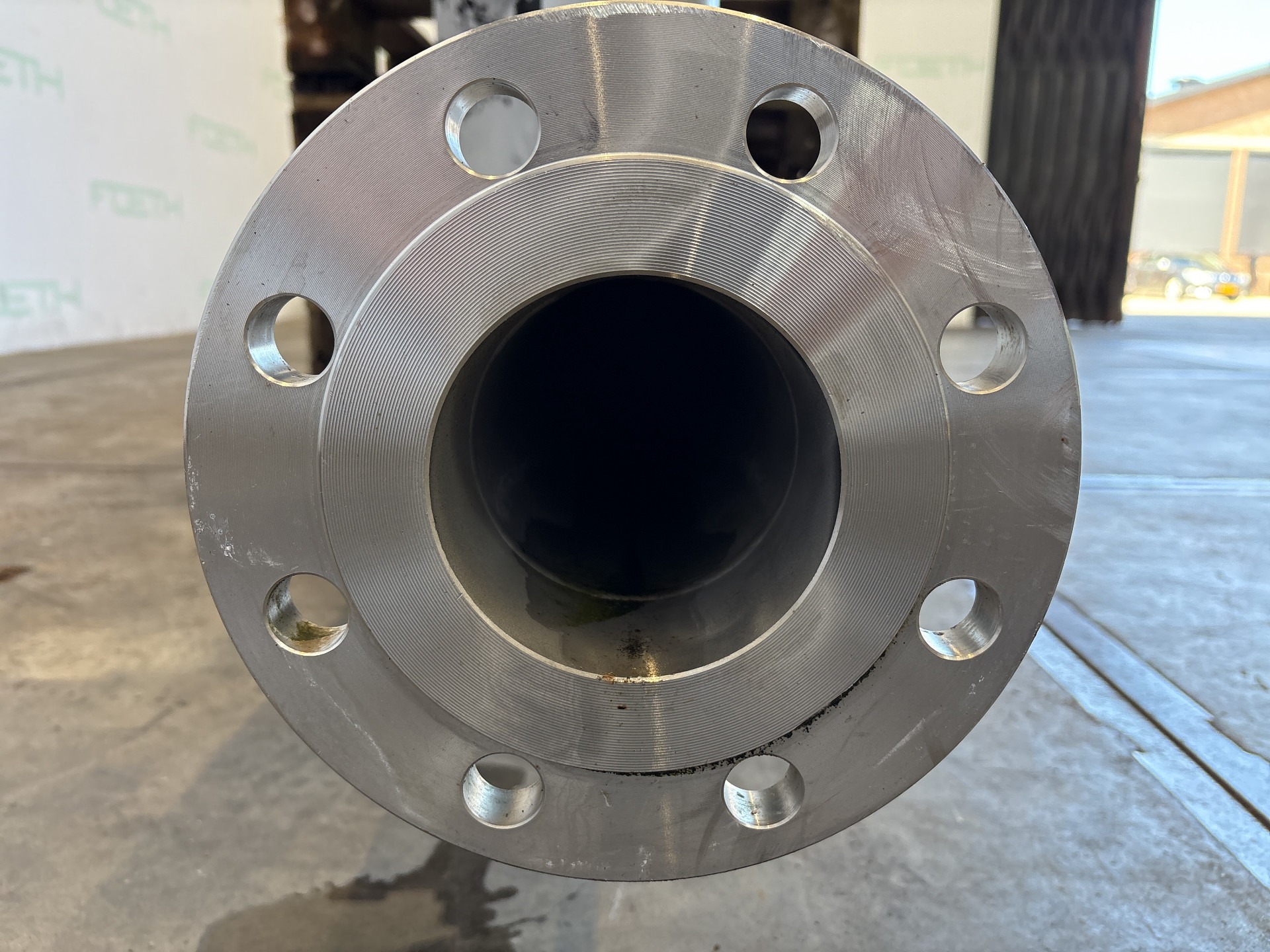

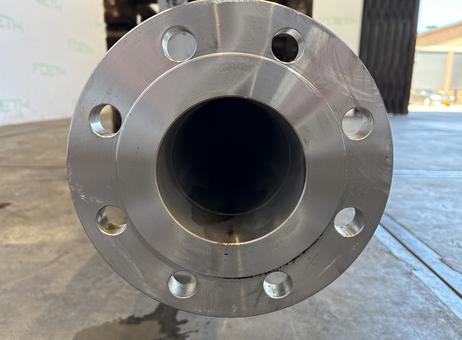

Cover connections: DN100 (2x)
Material: Stainless steel 1.4435 (316L)
General
No.: 2613
Year of construction: 1996
Mounted on legs: ✓
Floorspace: 3,7 x 0,6 m
Total height: 1,3 m
Weight: 650 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
