| Manufacturer | Jaeggi Bern |
|---|---|
| Model | 35 m² |
| Year | 1990 |
| Location | Netherlands
|

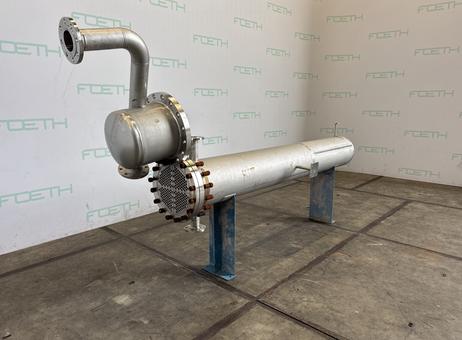

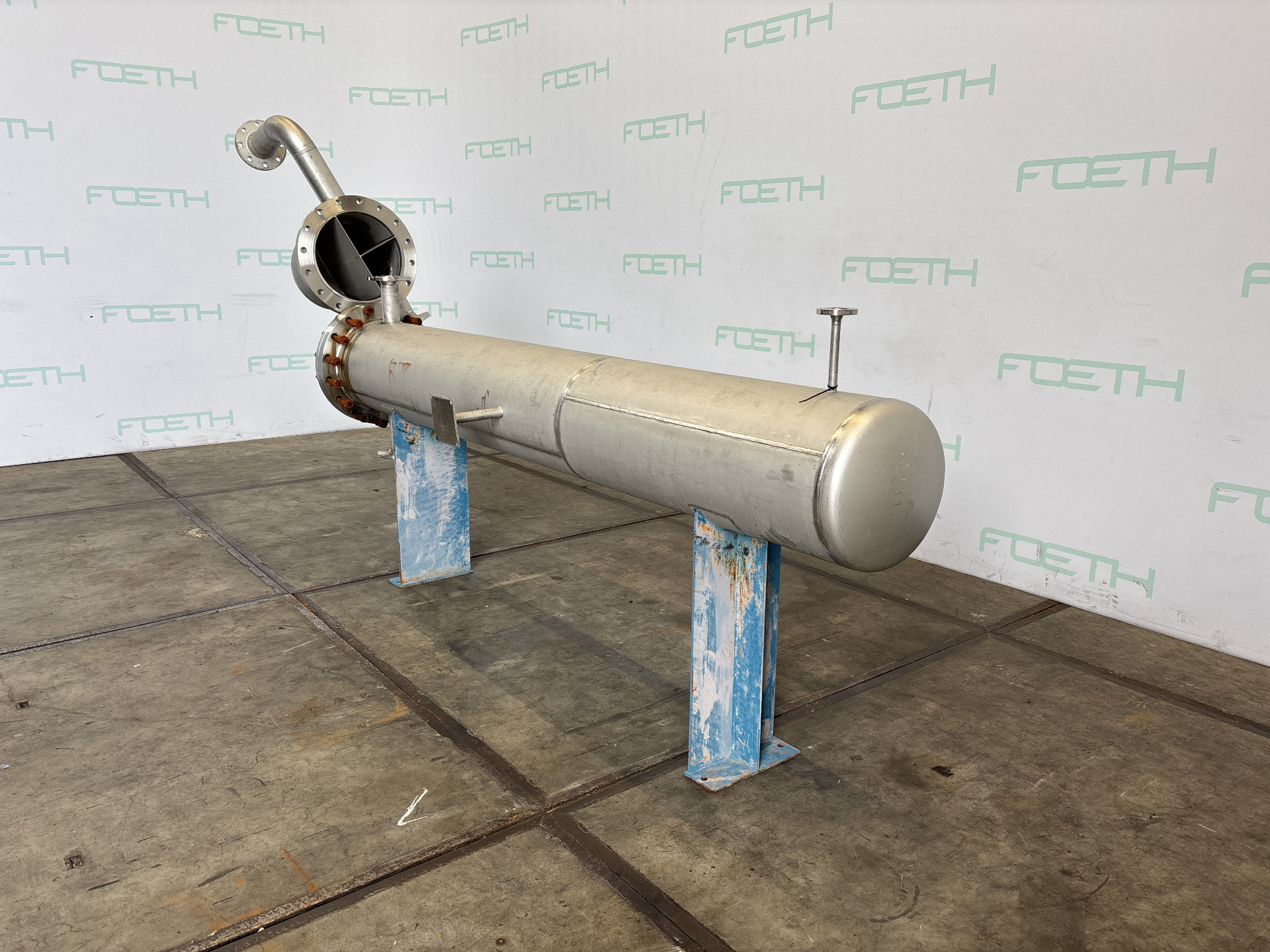

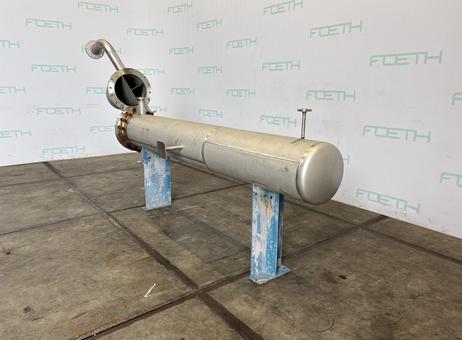

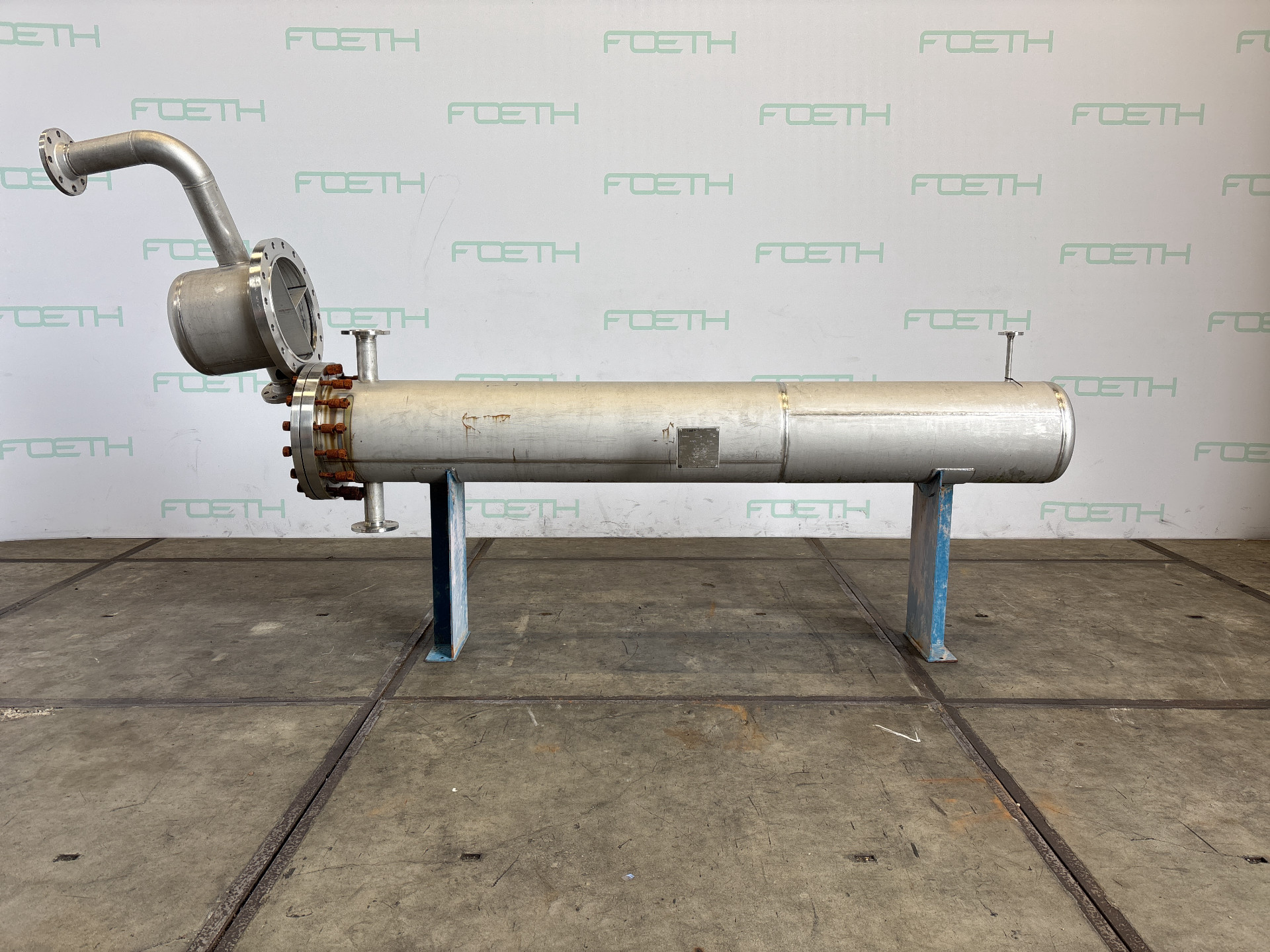

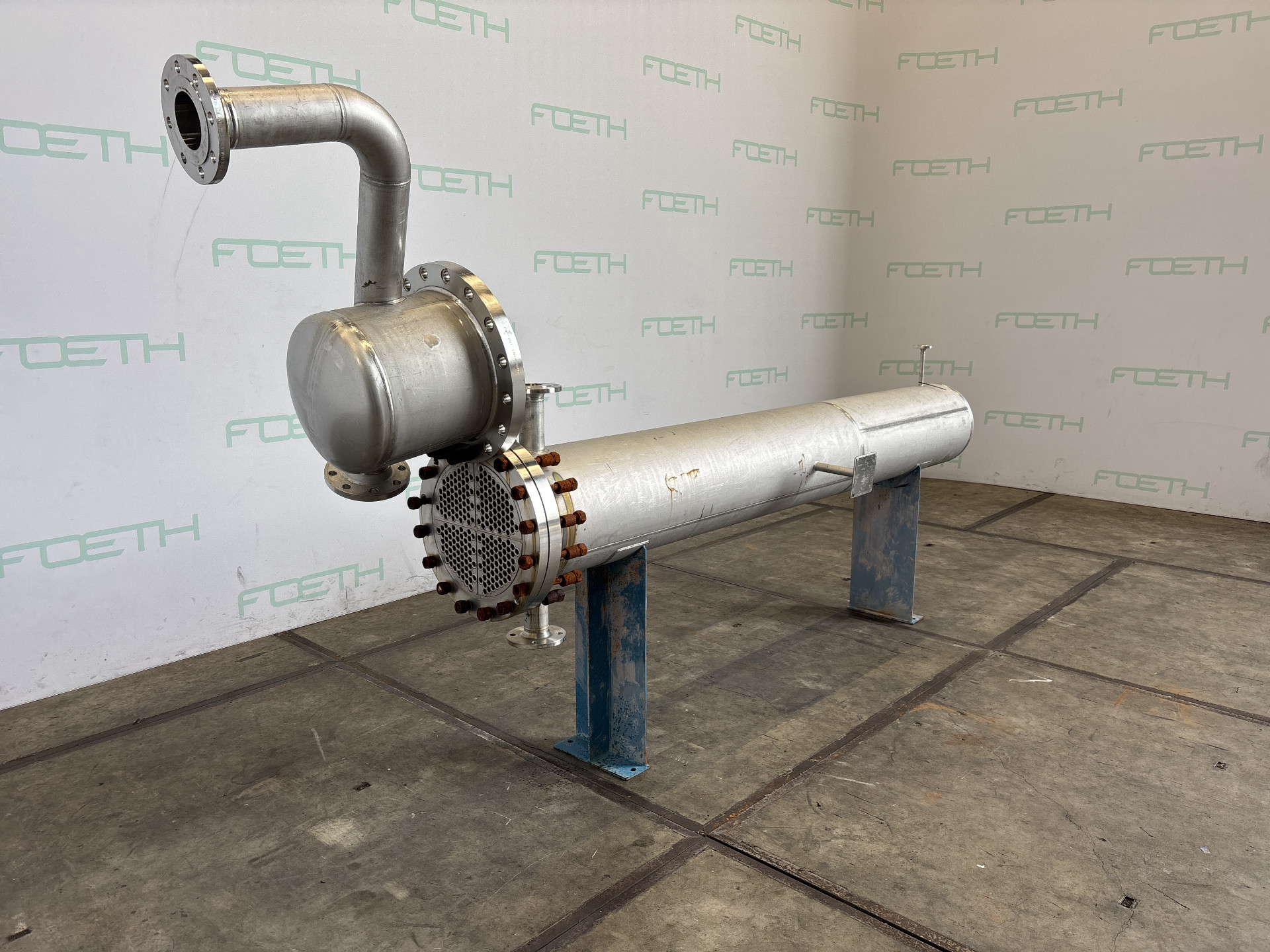

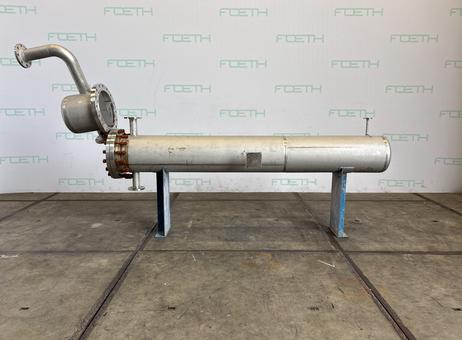

Jaeggi Bern 35 m² horizontal U-type shell-and-tube heat exchanger. It is specified as a heat exchanger with a stainless-steel shell and stainless-steel tubes. The listed material is stainless steel 1.4435 (316L). The stated heating surface is 35 m², and the maximum temperature is 200 °C.
The exchanger has an overall length of 3700 mm, width of 700 mm and height of 1300 mm. Its listed weight is 750 kg. These dimensions and weight are provided for equipment identification and planning; confirm that they suit the intended installation and handling arrangements.
The construction details describe a horizontal exchanger with a U-type tube arrangement. The listing also specifies connections on the shell and cover. It identifies separate shell and tube sides, with stainless steel given as the material for both. These details may help when comparing the unit with process requirements, existing pipework or a replacement exchanger.
Manufacturer: Jaeggi Bern. Model/type: 35 m². The available information identifies this equipment as a shell-and-tube heat exchanger and provides its material, overall dimensions, weight and maximum temperature. No condition, operating status, test results or warranty information is provided here. Please assess compatibility with the intended service using the process requirements and the available equipment documentation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General
SKU: R0830
Make: Jaeggi Bern (CH)
Location: Barneveld
Type: 35 m²
Pressure
Working pressure shell: 6 Bar
Working pressure tubes: 10 Bar
Main Features
Shell (Material): Stainless steel
Tube (Material): Stainless steel
Surface: 35 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Horizontal: ✓
Heating surface: 35 m²
Tube capacity: 164 l.
U-type: ✓

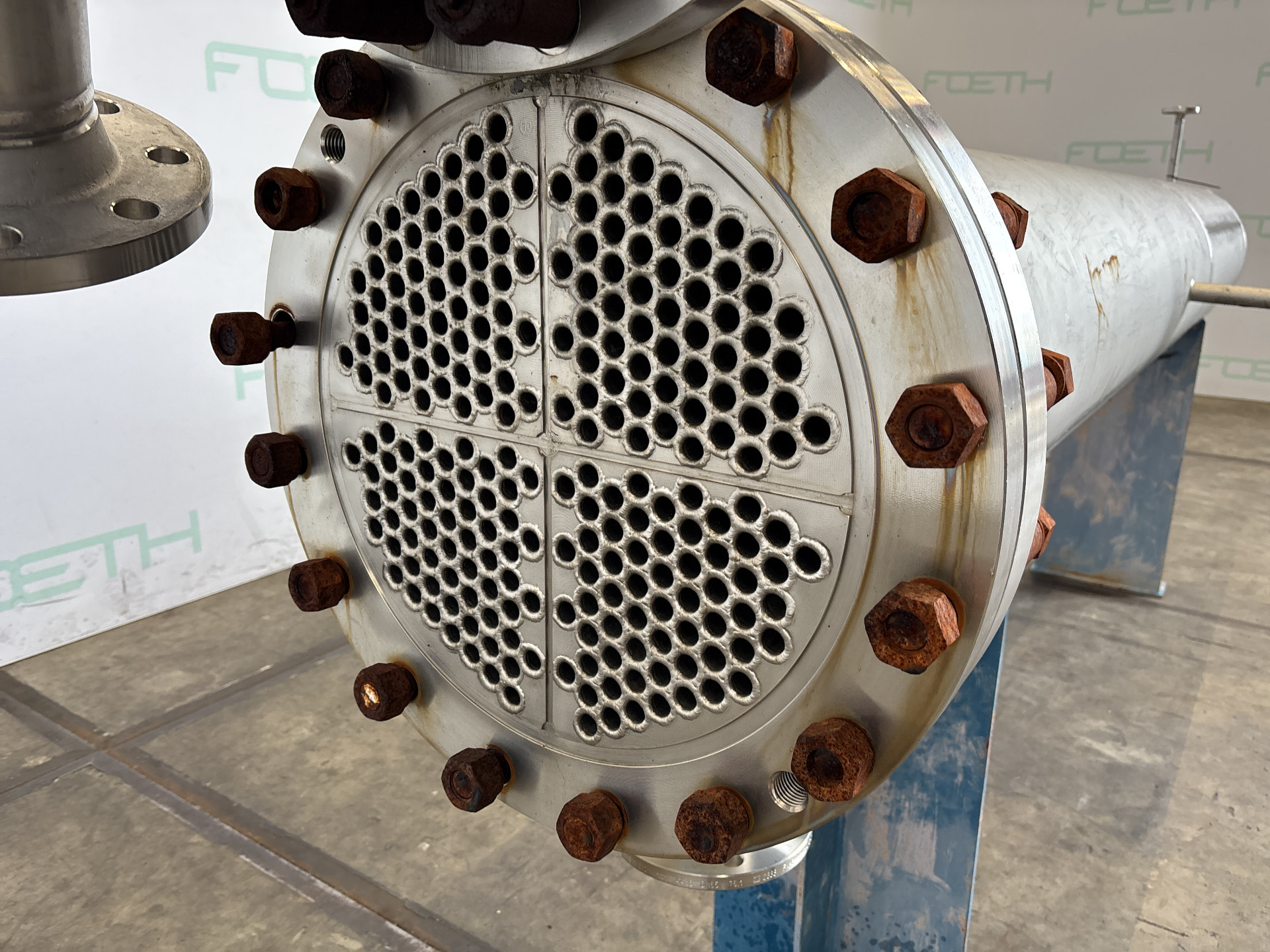

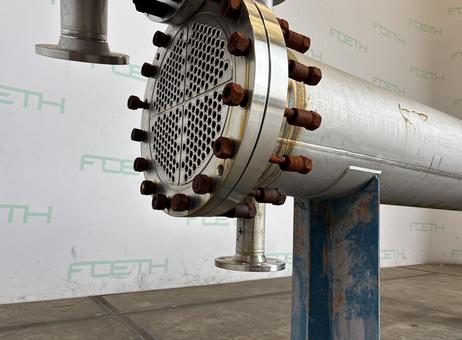

Number of tubes:: 120
Tube diameter: 16 mm
Tube length: 6000 mm
Wall thickness tubes: 1 mm
Max. temperature: 200°C
Shell capacity: 206 l
Shell diameter: 406 mm
Shell length: 3000 mm
Wall thickness shell: 4 mm
Max. temperature: 200°C
Shell connections: dia. 65 mm (2x) dia 15 mm (1x)

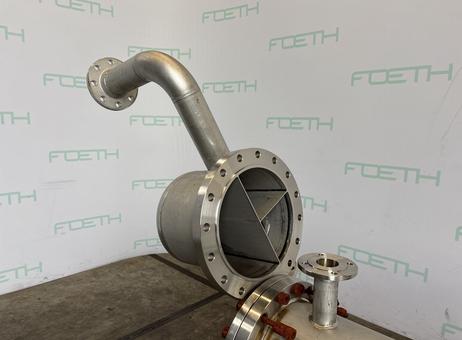

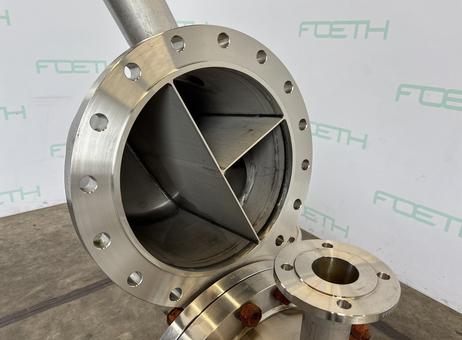

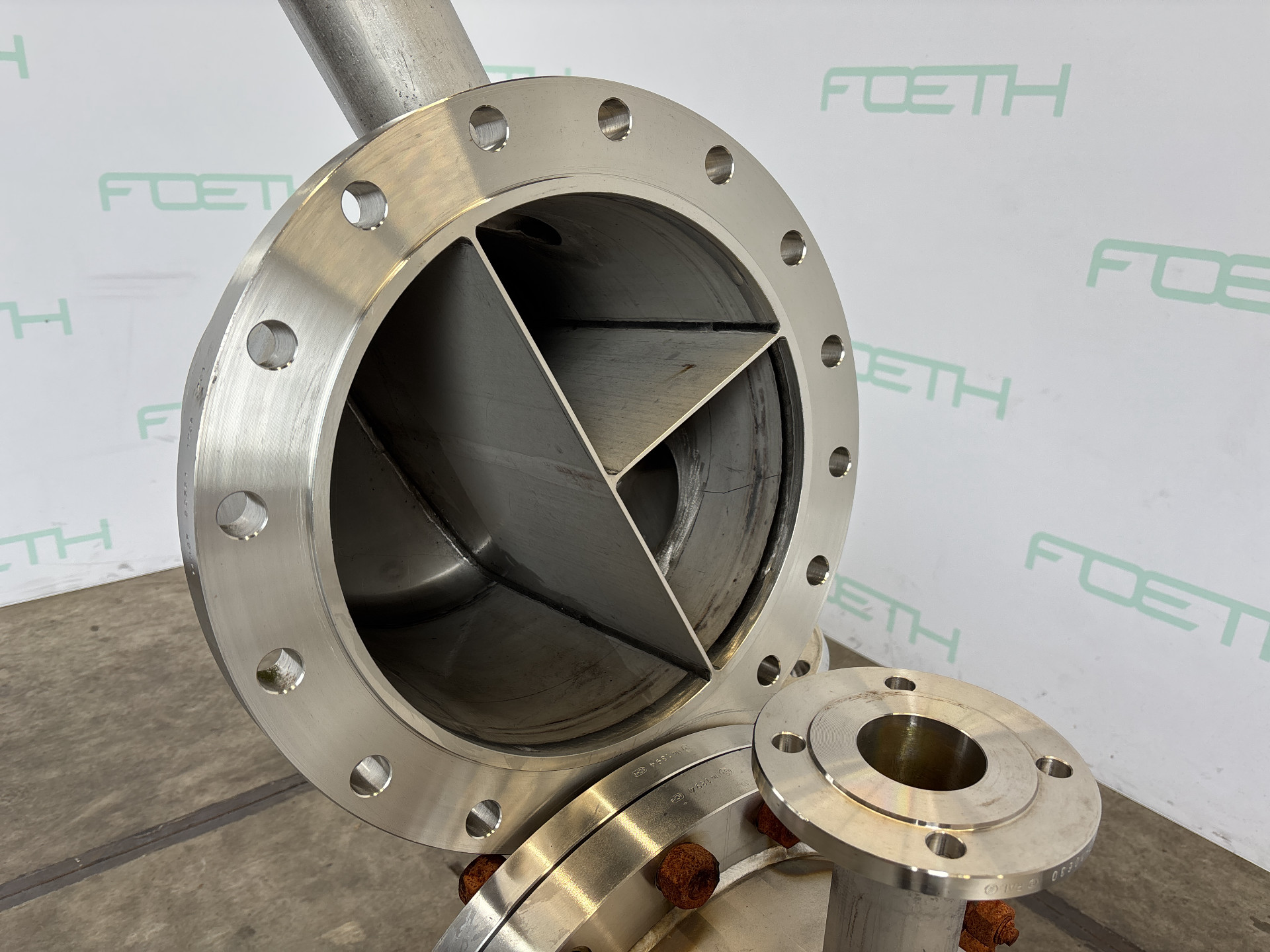

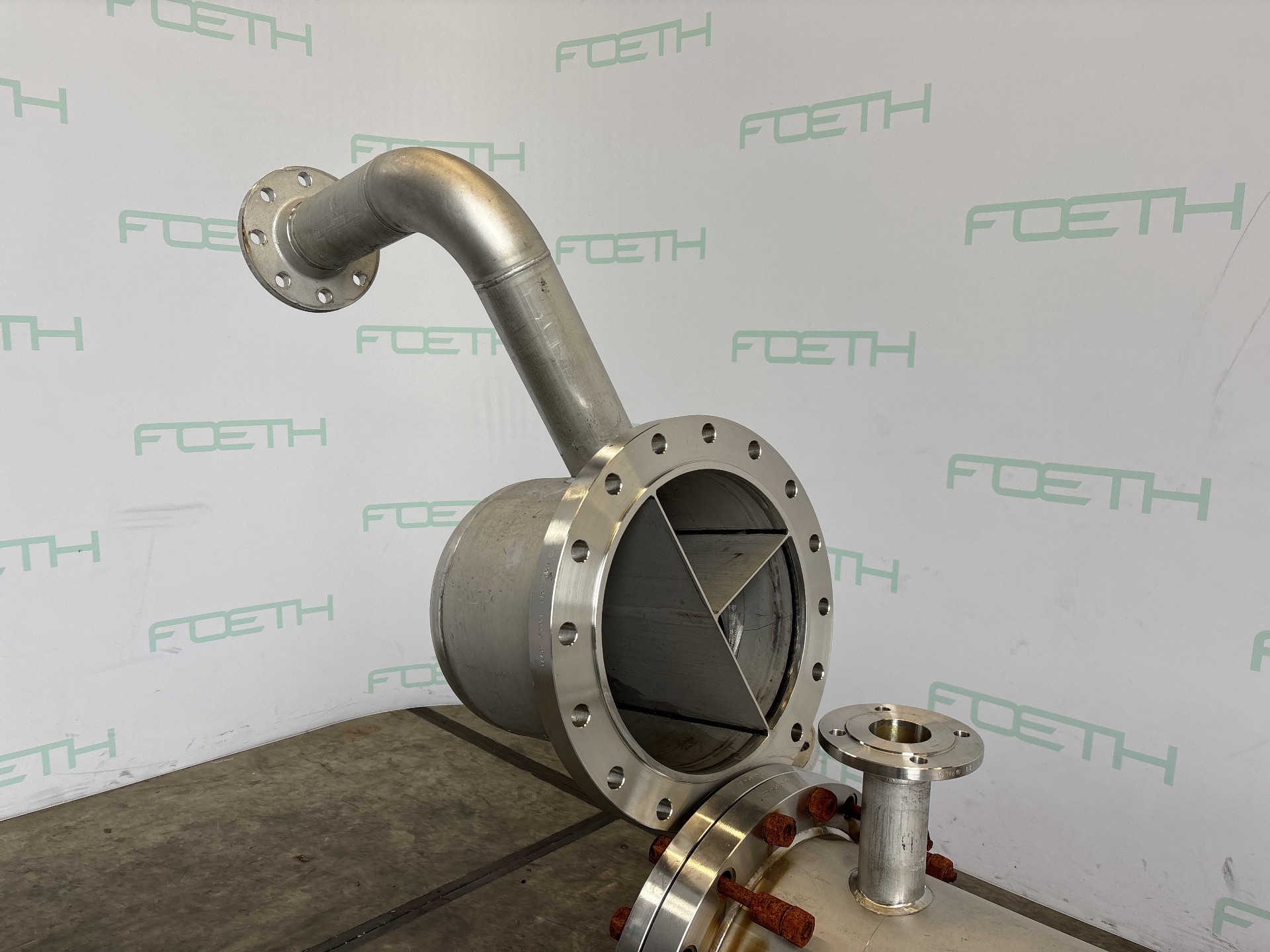

Cover connections: dia. 100 mm (2x)
Material: Stainless steel 1.4435 (316L)
General
No.: 1894
Year of construction: 1990
Floorspace: 3.7 x 0.7 m
Total height: 1.3 m
Weight: 750 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2026 |
| Offers online | 1768 |
| Last activity | Oct. 26, 2026 |
Since 1908, we have been active in the purchase and sale of pre-owned process equipment. Today, Foeth is the largest dealer in Europe, with more than 2,800 items in stock at our premises in Barneveld, some 60 kilometers southeast of Amsterdam and Schiphol.
We serve the (specialty) chemical, food, recycling, and pharmaceutical industries worldwide with our high-quality used and refurbished A-brand process machines. Sustainability is the driving force behind all our activities. Together with our clients and partners, we aim to reduce worldwide CO2 emissions, benefiting our climate and that of our future generations.
General
SKU: R0830
Make: Jaeggi Bern (CH)
Location: Barneveld
Type: 35 m²
Pressure
Working pressure shell: 6 Bar
Working pressure tubes: 10 Bar
Main Features
Shell (Material): Stainless steel
Tube (Material): Stainless steel
Surface: 35 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Horizontal: ✓
Heating surface: 35 m²
Tube capacity: 164 l.
U-type: ✓
Number of tubes:: 120
Tube diameter: 16 mm
Tube length: 6000 mm
Wall thickness tubes: 1 mm
Max. temperature: 200°C
Shell capacity: 206 l
Shell diameter: 406 mm
Shell length: 3000 mm
Wall thickness shell: 4 mm
Max. temperature: 200°C
Shell connections: dia. 65 mm (2x) dia 15 mm (1x)
Cover connections: dia. 100 mm (2x)
Material: Stainless steel 1.4435 (316L)
General
No.: 1894
Year of construction: 1990
Floorspace: 3.7 x 0.7 m
Total height: 1.3 m
Weight: 750 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Jaeggi Bern 35 m² horizontal U-type shell-and-tube heat exchanger. It is specified as a heat exchanger with a stainless-steel shell and stainless-steel tubes. The listed material is stainless steel 1.4435 (316L). The stated heating surface is 35 m², and the maximum temperature is 200 °C.
The exchanger has an overall length of 3700 mm, width of 700 mm and height of 1300 mm. Its listed weight is 750 kg. These dimensions and weight are provided for equipment identification and planning; confirm that they suit the intended installation and handling arrangements.
The construction details describe a horizontal exchanger with a U-type tube arrangement. The listing also specifies connections on the shell and cover. It identifies separate shell and tube sides, with stainless steel given as the material for both. These details may help when comparing the unit with process requirements, existing pipework or a replacement exchanger.
Manufacturer: Jaeggi Bern. Model/type: 35 m². The available information identifies this equipment as a shell-and-tube heat exchanger and provides its material, overall dimensions, weight and maximum temperature. No condition, operating status, test results or warranty information is provided here. Please assess compatibility with the intended service using the process requirements and the available equipment documentation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
