Индустриална фурна IZO IND.OV-LT
Průmyslova pec IZO IND.OV-LT
IZO IND.OV-LT Industriel ovn
IZO IND.OV-LT Industrielle öfen
Βιομηχανικός φούρνος IZO IND.OV-LT
IZO IND.OV-LT Industrial oven
Horno industrial IZO IND.OV-LT
Four industriel IZO IND.OV-LT
Industrijska pećnica IZO IND.OV-LT
IZO IND.OV-LT Ipari sütő
Forno industriale IZO IND.OV-LT
Pramoninė orkaitė IZO IND.OV-LT
IZO IND.OV-LT Industriële oven
Piec IZO IND.OV-LT
Forno industrial IZO IND.OV-LT
Cuptor industrial IZO IND.OV-LT
IZO IND.OV-LT
Industrijska pećnica IZO IND.OV-LT
IZO IND.OV-LT Industriell ugn
Endüsriyel fırın IZO IND.OV-LT
|
The IZO IND.OV-LT is an industrial furnace designed specifically for heating and drying applications in an air atmosphere. It is not suitable for use with flammable or explosive materials or vapors that can form explosive mixtures with air. For environments with high dust or corrosive conditions, additional protective measures are necessary.
This robust furnace features a self-supporting welded frame constructed from cold-formed structural steel profiles (ST3S) with corrosion protection. The external casing is made from powder-coated structural sheets, typically finished in RAL7035, although other colors can be specified by the purchaser. The furnace is equipped with leveling feet at the base and transport ears located on the upper part for easier handling.

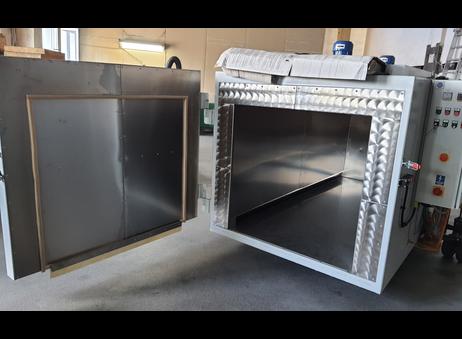

The heating chamber measures approximately 1000 mm in width, 2500 mm in depth, and 1000 mm in height. It is lined internally with stainless steel AISI304 sheets and sections, separated from the insulating material by a metal plating that enhances cleanliness inside the working space. The interior base includes a fixed, thermally insulated oven floor with panels designed for increased load-bearing capacity, featuring a height of about 70 mm. A removable ramp is provided at the front for transport convenience.
The furnace is intended for annealing charges placed on carts with shelves or hangers. Specific furnace equipment such as shelves, trays, and carts are available as additional accessories.

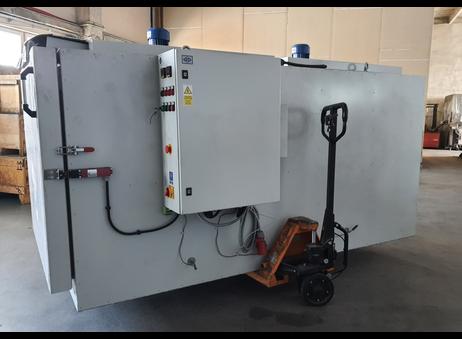

The control system comprises a side-mounted electrical control cabinet housing two microprocessor PID temperature controllers (TROL9100) operating in a cascade system. This allows for programmable temperature ramping and holding times with automatic shutdown capability. Temperature is monitored using K-type thermocouples with a setting resolution of 1°C. Safety features include double fuse protection, door limit switches, an independent digital temperature limiter with its own thermocouple, an emergency stop switch, motor protections, SSR relay protections, guards for rotating and live components, and a main switch with lock-out capability. Warning pictograms are displayed on the unit for operator safety.
The furnace has a maximum operating temperature of 100 °C and a total power rating of approximately 16 kW, powered by a 3-phase 400 VAC, 50 Hz supply. Two blue motors or fans are mounted on top of the unit, likely for ventilation or circulation purposes.
The exterior metal panels show some wear and dirt marks but remain structurally intact. The interior stainless steel surfaces exhibit minor stains and wear consistent with industrial use. The furnace includes a door with hinges and sealing gaskets to maintain the internal environment. An orange pallet jack is shown positioned beneath the unit, facilitating mobility.
Manufactured by IZO Zakład Izolacji Ogniotrwałych in Poland, this furnace is suitable for continuous industrial operation under full load. The serial number and production date (April 2020) are indicated on the manufacturer plate.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Furnace designed for heating and drying.
The device to work in an air atmosphere. It is not adapted to work with flammable, explosive materials and whose vapors can form explosive mixtures with air
explosive. For highly dusty and corrosive environments, additional protection is required.
All IZO furnaces are suitable for industrial operation under full load and maximum temperature 24/7 continuous operation.
Dimensions of the heating chamber
1000
2500
1000
Width [mm]
Depth [mm]
Height [mm]
Maximum operating temperature 100 °C
Total unit power ~ 16 kW / 3x400 VAC 50Hz
Unit construction, casing
Robust, self-supporting welded frame made of cold-formed structural profiles ST3S
protected against corrosion. Leveling feet in the base.
External casing made of powder-coated structural sheets.
Housing color RAL7035 or any other color chosen by the Purchaser.
In the upper part of the furnace transport ears.
Internal heating chamber Heating chamber of the furnace separated from the insulating material by a metal plating
interior increasing the cleanliness of the furnace working space.
Material of the heating chamber (sections and sheets): stainless steel AISI304
Heating chamber arrangement
(charge placement)
It is assumed to anneal the charge on carts with shelves/hangers.
The number of furnace equipment (shelves, trays, carts) to be supplied
is listed under "Additional equipment".
Stem of the oven (floor) Stem of the oven fixed, thermally insulated with panels with increased load-bearing capacity.
The height of the shaft about 70mm.
Ramp (ramp) in front of the oven, unscrewed for transport.
Control system In the control cabinet, built-in microprocessor temperature controllers PID TROL9100
(2 pcs.). Operation in a cascade system. Possibility to set the rate of rise
temperature and holding time (automatic shutdown).
Temperature measurement: K-type thermocouples.
Resolution of temperature settings: every 1°C
Safety features Safety features and safety elements used:
- double fuse protection,
- door limit switch(es),
- independent digital temperature limiter with its own thermocouple,
- emergency STOP switch,
- motor protections,
- SSR relay protections,
- guards for rotating and live components,
- main switch with lock-out capability,
- a package of warning pictograms.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2025 |
| Offers online | 1 |
| Last activity | Aug. 11, 2025 |
Furnace designed for heating and drying.
The device to work in an air atmosphere. It is not adapted to work with flammable, explosive materials and whose vapors can form explosive mixtures with air
explosive. For highly dusty and corrosive environments, additional protection is required.
All IZO furnaces are suitable for industrial operation under full load and maximum temperature 24/7 continuous operation.
Dimensions of the heating chamber
1000
2500
1000
Width [mm]
Depth [mm]
Height [mm]
Maximum operating temperature 100 °C
Total unit power ~ 16 kW / 3x400 VAC 50Hz
Unit construction, casing
Robust, self-supporting welded frame made of cold-formed structural profiles ST3S
protected against corrosion. Leveling feet in the base.
External casing made of powder-coated structural sheets.
Housing color RAL7035 or any other color chosen by the Purchaser.
In the upper part of the furnace transport ears.
Internal heating chamber Heating chamber of the furnace separated from the insulating material by a metal plating
interior increasing the cleanliness of the furnace working space.
Material of the heating chamber (sections and sheets): stainless steel AISI304
Heating chamber arrangement
(charge placement)
It is assumed to anneal the charge on carts with shelves/hangers.
The number of furnace equipment (shelves, trays, carts) to be supplied
is listed under "Additional equipment".
Stem of the oven (floor) Stem of the oven fixed, thermally insulated with panels with increased load-bearing capacity.
The height of the shaft about 70mm.
Ramp (ramp) in front of the oven, unscrewed for transport.
Control system In the control cabinet, built-in microprocessor temperature controllers PID TROL9100
(2 pcs.). Operation in a cascade system. Possibility to set the rate of rise
temperature and holding time (automatic shutdown).
Temperature measurement: K-type thermocouples.
Resolution of temperature settings: every 1°C
Safety features Safety features and safety elements used:
- double fuse protection,
- door limit switch(es),
- independent digital temperature limiter with its own thermocouple,
- emergency STOP switch,
- motor protections,
- SSR relay protections,
- guards for rotating and live components,
- main switch with lock-out capability,
- a package of warning pictograms.
