| Manufacturer | ITM |
|---|---|
| Model | TPO |
| Year | 2016 |
| Location | Netherlands
|

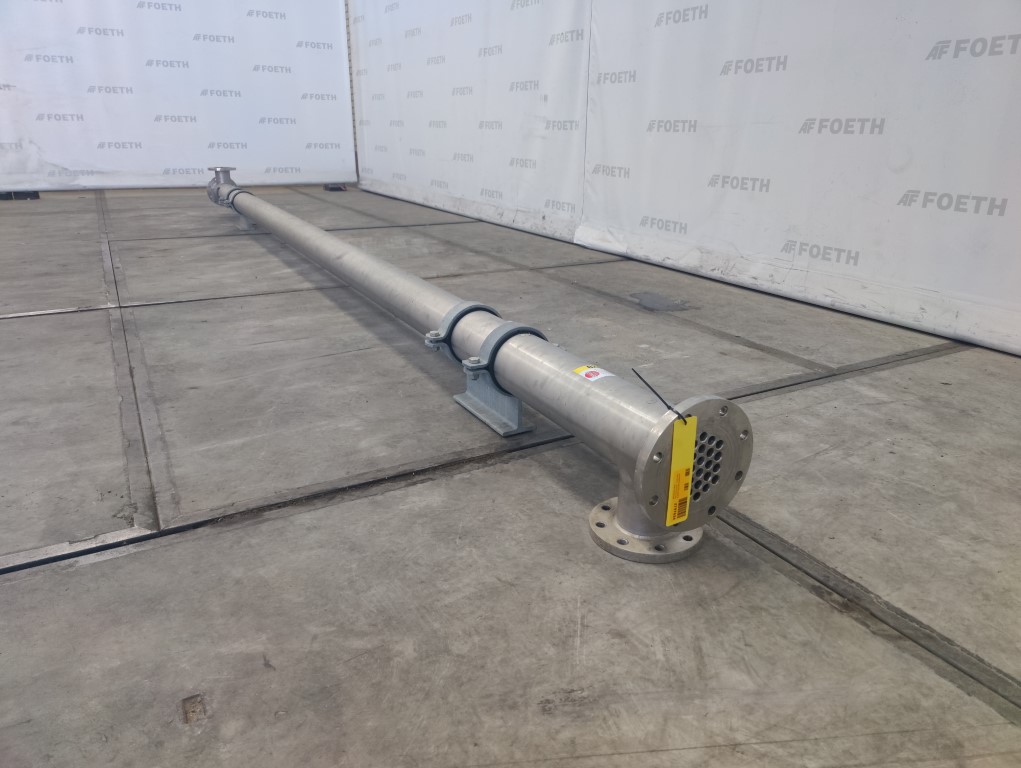

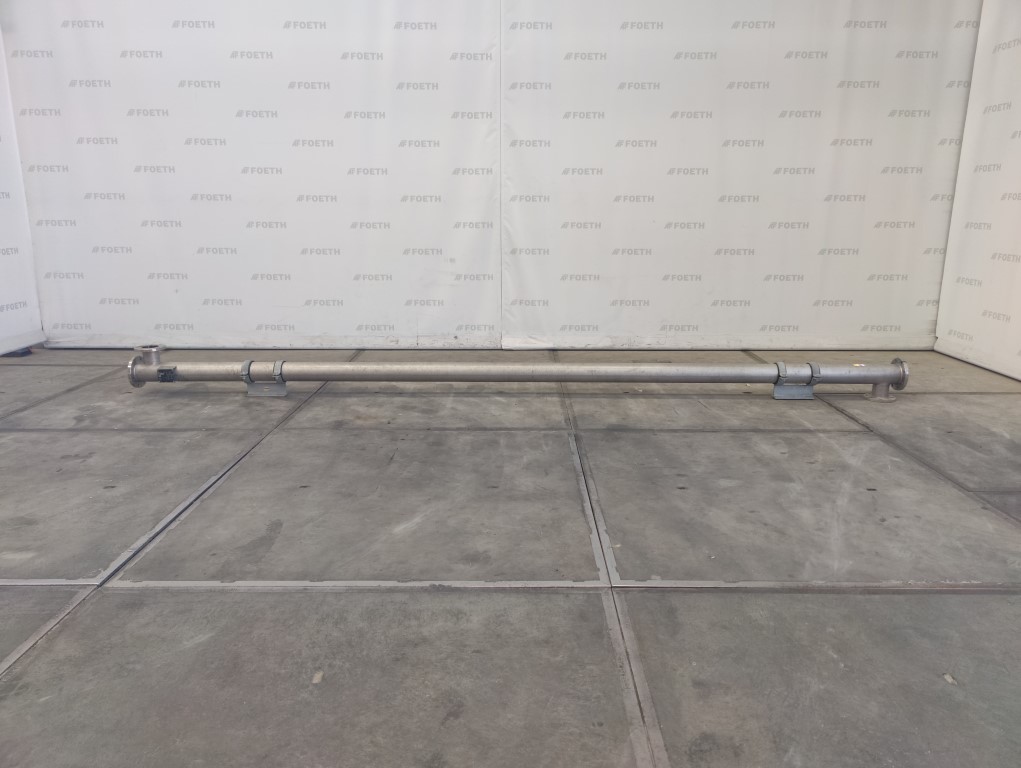

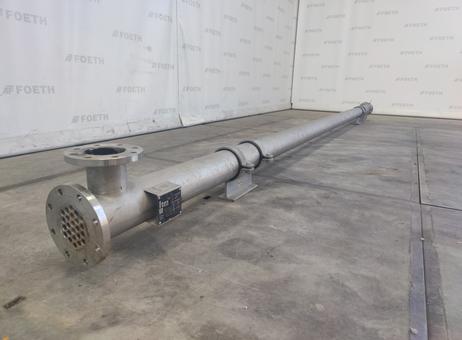

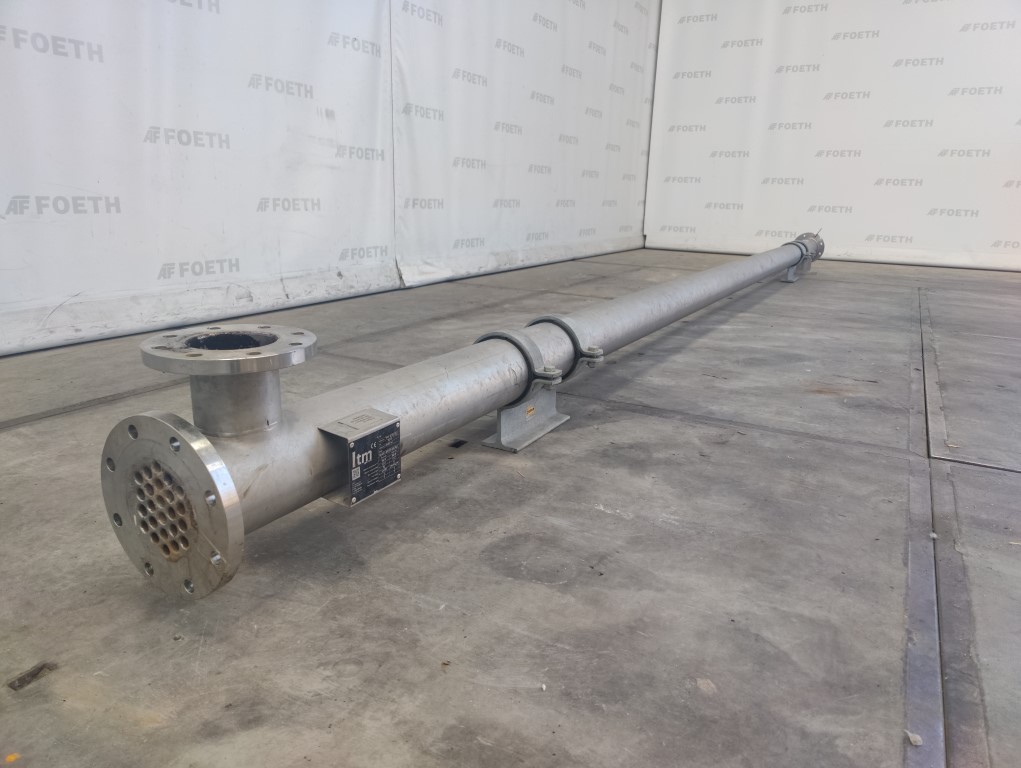

ITM TPO horizontal shell-and-tube heat exchanger, manufactured in 2016. The unit is listed with stainless-steel construction for both the shell and the tubes, and a heating surface of 6.5 m². Its stated maximum temperature is 99°C; the detailed specifications give a temperature range of 5–99°C. The working pressure is listed as 10 bar for both the shell and the tubes.

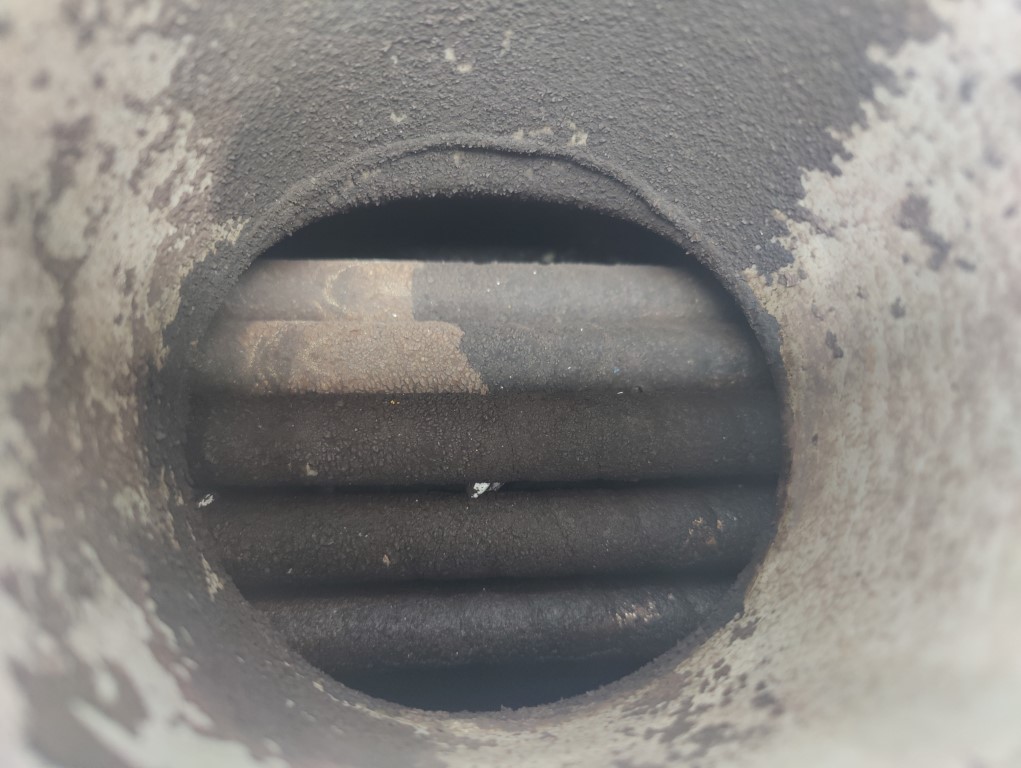

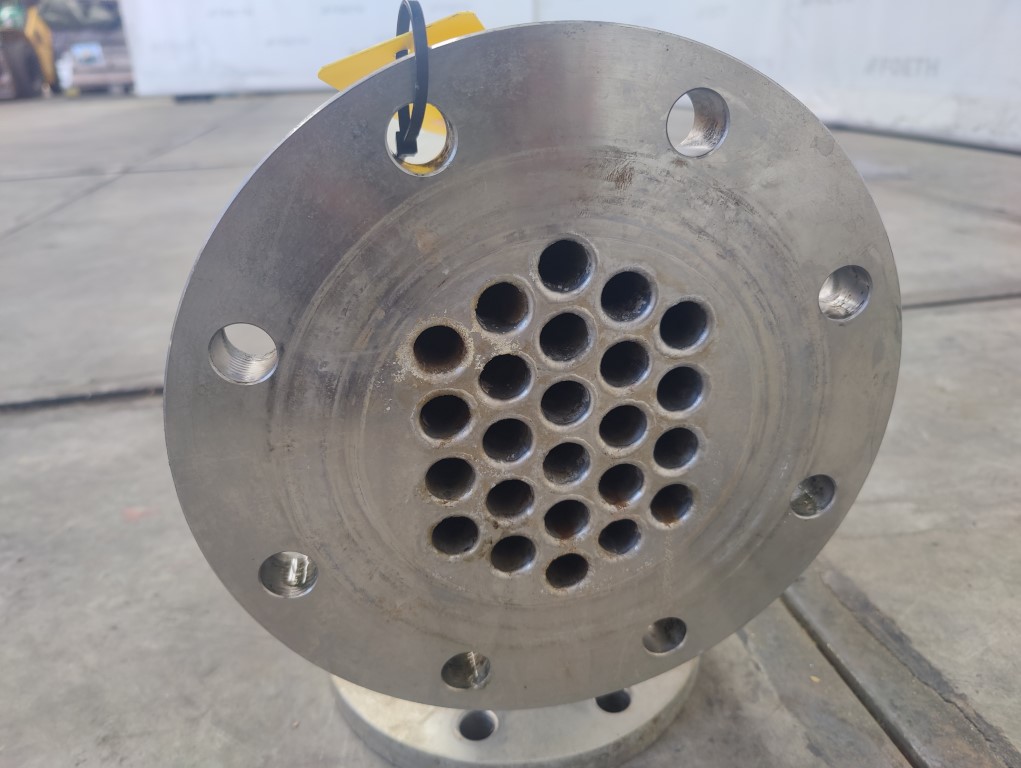

The exchanger has 24 tubes, each with a listed diameter of 14.5 mm and length of 5900 mm. The shell length is also listed as 5900 mm. Shell capacity is specified as 72 litres, with a separate capacity figure of 51 litres in the listing. Connections are specified as DN125 for the shell and DN100 for the cover.
Overall dimensions are 5900 mm long, 300 mm wide and 400 mm high. The listed weight is 180 kg. The unit is identified as a heat exchanger and is marked CE in the supplied specifications. These details describe the stated configuration and ratings; no additional condition, testing or operational information is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General
SKU: 279T634
Make: Itm
Location: Barneveld

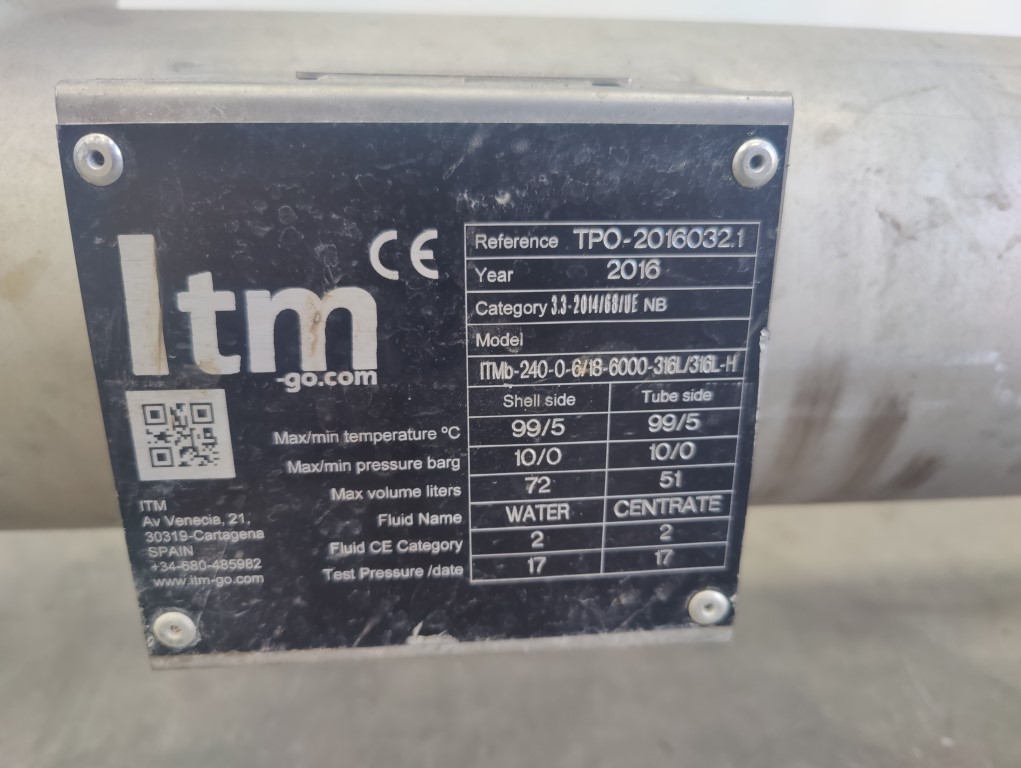

CE: ✓
Type: TPO
Pressure
Working pressure shell: 10 Bar
Working pressure tubes: 10 Bar
Main Features
Shell (Material): Stainless steel
Tube (Material): Stainless steel
Surface: 6.5 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Horizontal: ✓
Heating surface: 6,5 m²
Number of tubes:: 24
Tube diameter: 14,5 mm
Tube length: 5900 mm
Max. temperature: 5/99 °C
Shell capacity: 72 Ltr.
Shell length: 5900 mm
Max. temperature: 5/99 °C
Shell connections: DN125
Cover connections: DN100
Capacity: 51 Ltr.
Material: Stainless steel
General
No.: 2016032.1
Year of construction: 2016
Floorspace: 5,9x0,3 m
Total height: 0,4 m
Weight: 180 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
