Contact us to receive an offer.
| Manufacturer | Isotec |
|---|---|
| Model | PTGV71BA |
| Year | 2002 |
| Location | Germany
|
| Category | Spray booths / painting units |
| System | Water |
| Length x width x height | 5700.0 × 2400.0 × 2800.0 |
| Weight | 5000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 07/09/2026 |
| Product id | P230810102 |
| Language |
Isotec PTGV71BA
Stříkací kabina Isotec PTGV71BA
Isotec PTGV71BA
Isotec PTGV71BA Lackieranlage
Isotec PTGV71BA
Isotec PTGV71BA Spray booth
Cabina de pintura Isotec PTGV71BA
Cabine de peinture Isotec PTGV71BA
Isotec PTGV71BA
Isotec PTGV71BA
Cabina di verniciatura Isotec PTGV71BA
Isotec PTGV71BA
Isotec PTGV71BA
Kabina natryskowa / malarnia Isotec PTGV71BA
Isotec PTGV71BA
Isotec PTGV71BA
Isotec PTGV71BA Покрасочный бокс
Isotec PTGV71BA
Isotec PTGV71BA
Sprey kabini Isotec PTGV71BA
|
The Isotec PTGV71BA is an industrial plasma coating system designed primarily for coating sealing plates, seat rings, cones, tapered spindles, and other wear parts. Manufactured in 2002, this system operates on a water cooling system and has overall dimensions of 5700 mm in length, 2400 mm in width, and 2800 mm in height, with a total weight of approximately 5000 kg.
This coating line features a control system based on Soft-PLC technology and operates on a 3-phase 400 V, 50 Hz electrical supply, requiring around 22 kVA of power. The plasma coating system includes a powder dosing system capable of adjusting and regulating the powder quantity, with a capacity of approximately 10 kg and powder grain sizes ranging from 25µ to 500µ.
The current source is controlled via MOSFET technology with a maximum pilot current of 100 A and transfer current of up to 300 A, displayed digitally and air-cooled. The plasma torch is water-cooled and capable of continuous power operation at the specified current ratings. High-frequency ignition is provided by an HF generator for arc ignition.
The gas control system is process-controlled for fully automatic flow, using 99.99% pure Argon gas. Flow rates are adjustable: plasma gas system from 0.05 to 5 l/min, powder gas system from 0.50 to 20 l/min, and protective gas system from 1.50 to 30 l/min.

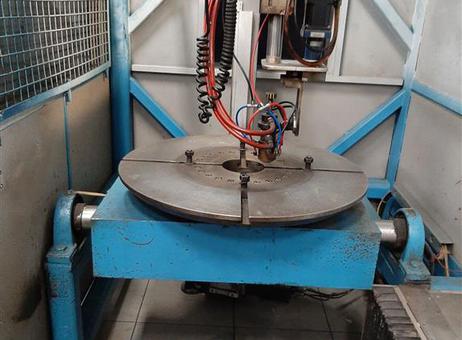

The system includes a rotary table with a diameter of 890 mm that can rotate 360° and tilt up to 130°, equipped with clamps for securing parts during the coating process. A support stand with a moving tip, water cooling unit, control panel, and housing are part of the setup.

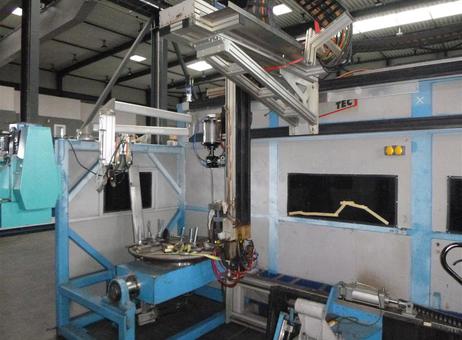

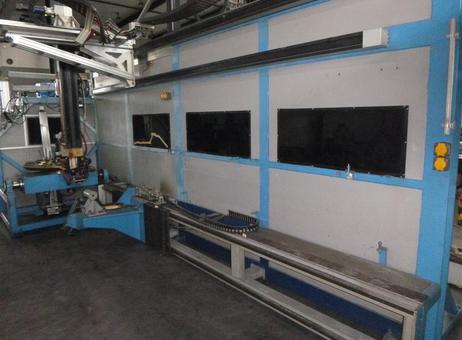

Visual inspection reveals a large industrial spray booth or painting unit with a blue and grey frame, multiple black viewing windows on the side panels, and a conveyor or track system along the base for moving items through the booth. A mechanical or robotic spray applicator arm is attached to the frame, with visible cabling and pneumatic tubing. The rotary table is centrally located within the enclosure and fitted with clamps. The equipment shows signs of use with some surface dirt and wear on the floor and equipment surfaces but appears to be in operational condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Coating Line
control: Soft - PLC
electrics - voltage/frequency: 3x400 V / 50 Hz V/Hz
burner heads: 1 pcs
total power requirement: ca. 22 kVA
Distance between centres: ca. 4000 mm
Rotary-table: Ø 890 mm
Rotary-table: drehbar 360° mm
Rotary-table: schwenkbar: 130° mm
weight of the machine ca.: 5,0 t
dimensions L x W x H: 5,7 x 2,4 x 2,8 m

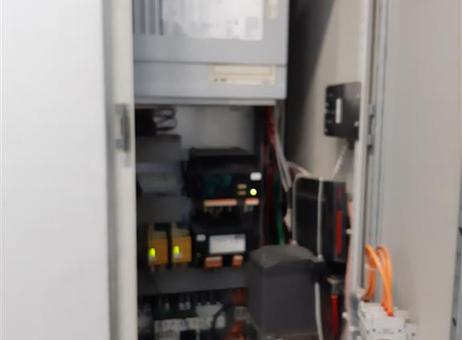

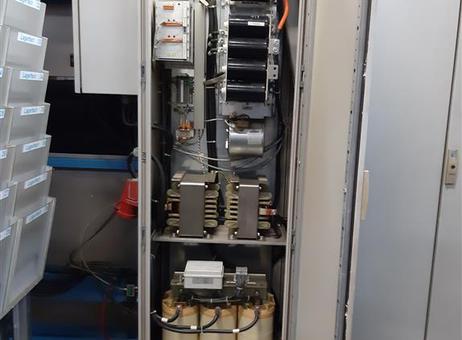

dimensions electric cabinet: 1600 x 640 x 1500 mm
Plasma coating system
Performance: Coating of sealing plates, seat rings, cones, tapered spindles and other wear parts.
Powder dosing system:
-control process control system / adjustment of the powder quantity
-Powder quantity approx. 10kg, powder grain size 25µ - 500µ
-Quantity regulation of the powder dosage
Current source:
-control MOSFET; rangePilot max. 200A and Tranfer 300A
-digital display
-air cooled
-control 0-10V / 0-20mA
Plasma torch:
-water cooled
-continuous power P max. pilot 100A and transfer 300A
High frequency ignition unit:
-HF generator for arc ignition
Gas control system:
-process controlled for fully automatic flow.
-plasma gas system flow unit electrically controllable
-gas = Argon 99.99 pure gas
-flow rate plasma gas system 0,05 - 5 l/min.; powder gas system 0,50 - 20 l/min.; protective gas system 1,50 - 30 l/min.

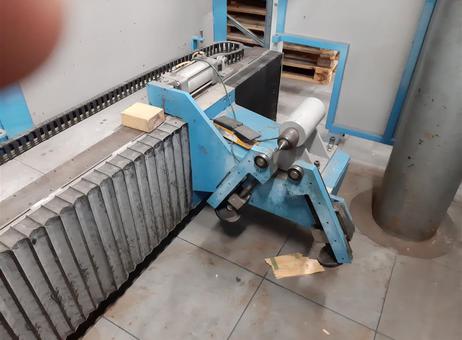

Support stand with moving tip
Water cooling unit

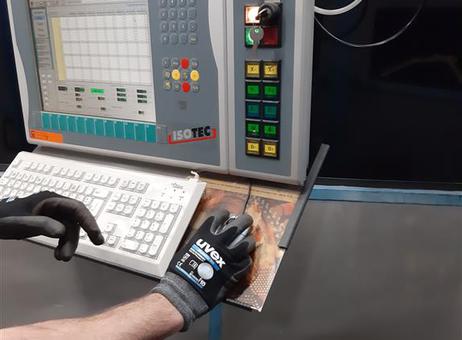

Control panel
Housing
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 123 |
| Last activity | Oct. 20, 2026 |
Coating Line
control: Soft - PLC
electrics - voltage/frequency: 3x400 V / 50 Hz V/Hz
burner heads: 1 pcs
total power requirement: ca. 22 kVA
Distance between centres: ca. 4000 mm
Rotary-table: Ø 890 mm
Rotary-table: drehbar 360° mm
Rotary-table: schwenkbar: 130° mm
weight of the machine ca.: 5,0 t
dimensions L x W x H: 5,7 x 2,4 x 2,8 m
dimensions electric cabinet: 1600 x 640 x 1500 mm
Plasma coating system
Performance: Coating of sealing plates, seat rings, cones, tapered spindles and other wear parts.
Powder dosing system:
-control process control system / adjustment of the powder quantity
-Powder quantity approx. 10kg, powder grain size 25µ - 500µ
-Quantity regulation of the powder dosage
Current source:
-control MOSFET; rangePilot max. 200A and Tranfer 300A
-digital display
-air cooled
-control 0-10V / 0-20mA
Plasma torch:
-water cooled
-continuous power P max. pilot 100A and transfer 300A
High frequency ignition unit:
-HF generator for arc ignition
Gas control system:
-process controlled for fully automatic flow.
-plasma gas system flow unit electrically controllable
-gas = Argon 99.99 pure gas
-flow rate plasma gas system 0,05 - 5 l/min.; powder gas system 0,50 - 20 l/min.; protective gas system 1,50 - 30 l/min.
Support stand with moving tip
Water cooling unit
Control panel
Housing
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
