| Manufacturer | Ishida - Rovema - Paal |
|---|---|
| Model | - |
| Year | 2001 |
| Location | Belgium
|
This complete packaging line, manufactured in 2001 by Ishida, Rovema, and Paal, consists of several integrated machines designed for efficient multihead weighing, vertical flow packaging, and carton box forming.
The Ishida multihead weigher, model CCW-M-214W-S/50-SS, features 14 weighing heads capable of performing up to 2 x 30 weighings per minute. It supports a filling weight range from 5 to 10,000 grams with an average accuracy of 0 to +3.0 grams. The maximum volume per individual weighing is 12,500 cc, with a minimum division of 1 gram. The machine is equipped with a touch-screen display and operates on 230V, 50Hz with a connected load of 1.6 kW. The multihead weigher is constructed primarily from stainless steel and includes a large funnel hopper beneath the weighing heads. The frame shows minor paint wear and some rust at the base, and a protective metal cage covers the mechanical parts at the base.

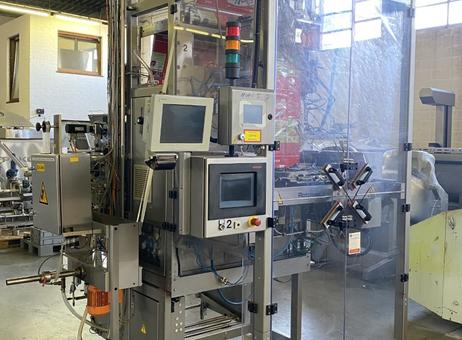

The line includes two Rovema vertical flow packaging machines, types VPK360-14115 and VPK360-14116, each manufactured in 2001. Both machines have a mechanical performance of 120 cycles per minute and accommodate roll widths up to 770 mm with diameters of 450 mm (extendable to 600 mm with front rollers). They support bag widths from 80 to 360 mm and bag lengths between 200 and 600 mm, with a maximum filling volume of 12,000 cm³. Seal pressure can reach up to 6,000 N, with an optional upgrade to 8,000 N. Each machine has a standard program memory of 100, expandable to 1,000. Dimensions are approximately 2,435 x 1,680 x 2,015 mm, weighing 1,500 kg. They operate on 230/400V with an energy requirement of 8 kVA and a compressed air connection at 6 bar, consuming 0.25 NI/cycle. The machines have an IP54 protection class and are finished in RAL 9007L gray aluminum. Operating temperature ranges from +5 to +45 °C, with storage temperatures from -30 to +60 °C, and humidity tolerance up to 95% without condensation. Visible on these machines are multiple control panels with screens, transparent safety guarding, electrical and pneumatic connections, and components such as film roll holders and sealing mechanisms. The frames show minor wear but appear complete and in good condition.
Additionally, the line includes a Paal carton box former, type ELLE 3000 S, with a maximum working capacity of 14 cycles per minute and an infeed capacity of up to 34 bags per minute. It handles stand-up pouches of approximately 4.0 kg with dimensions around 240 x 105 x 370 mm, forming trays with internal glued covers and cover protection in a grouping scheme of 1 x 3 standing. The machine's inlet height for filling material is 650 mm, and the outlet height for packaged goods is 500 mm. The installation area is approximately 8,000 x 6,500 mm, with power requirements of 3 x 400V, 50Hz, and 5 kW. The packaging machine type is Elematic 3000 LS/335.
Overall, this packaging line offers a comprehensive solution for weighing, packaging, and forming cartons, with visible signs of use such as minor paint wear and some rust at the bases of the multihead weigher. Protective metal cages are installed around mechanical and conveyor areas to enhance safety.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Consisting of:

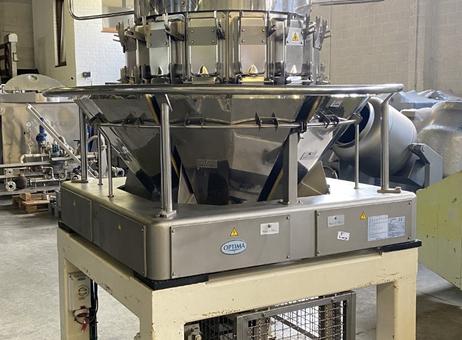

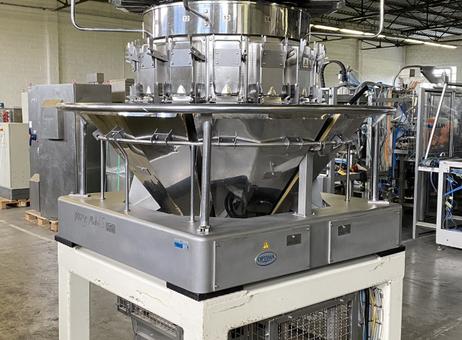

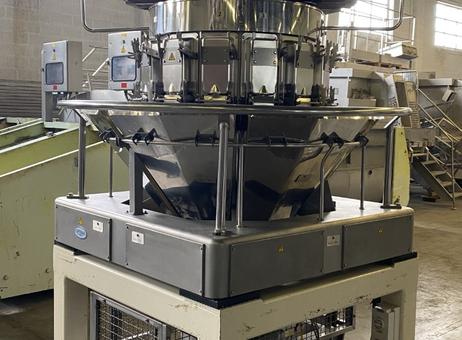

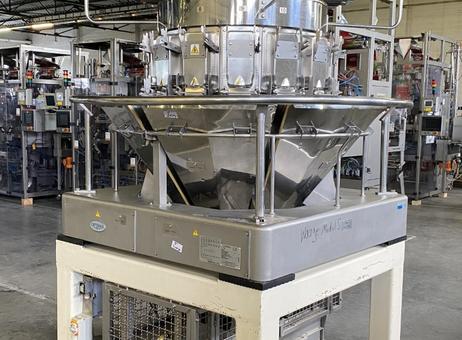

“Ishida” Multihead weigher
Type CCW-M-214W-S/50-SS
Heads: 14 pieces
Performance: up to 2 x 30 weighing’s/min
Filling weight (max. weight): 10.000 g
Accuracy: Average value 0 to +3.0 g
Weighing range: 5 - 10.000 g
Max. volume: 12.500 cc (per individual weighing)
Minimum division: 1g
Display: Touch-screen display
Power: 230V, 50Hz
Connected load: 1,6 kW

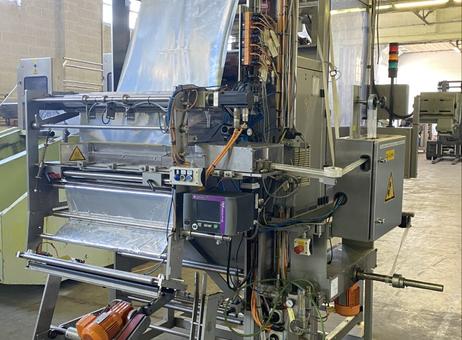

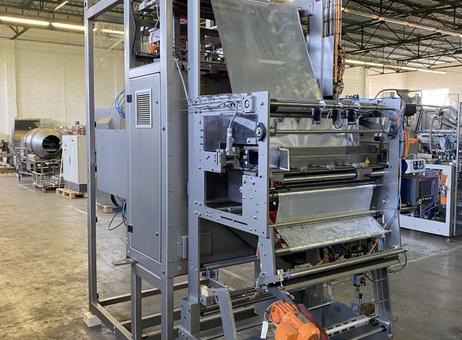

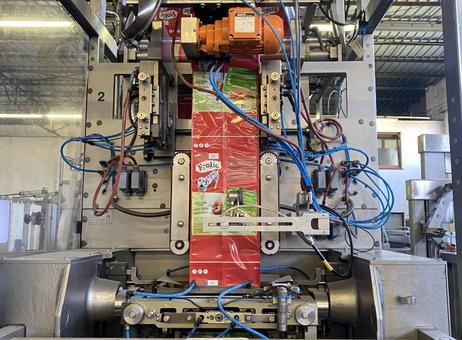

Vertical flowpackaging line “Rovema”
Type VPK360 - 14115
yoc 2001
Performance (mechanical) cycles/min: 120
roll width / diameter (max.) (mm): 770/450 (770 / 600 with front rollers)
bag width (min. – max.) (mm): 80-360
Bag length (min . – max.) (mm): 200-600
Filling volume (max.) (cm³): 12000
Seal pressure (max.) (N ): 6000 (optional: 8000)
Program memory: Standard: 100 (optional: 1000)
Dimensions: ( L x W x H) (mm): 2,435 x 1,680 x 2,015 mm
Weight: 1,500 kg
Mains connection (Volt): 230 / 400
Energy requirement (kVA): 8
Protection class: IP54
Compressed air connection: 6 bar
Air consumption 6 bar (NI/cycle): 0.25
Machine color: Ral 9007L / gray aluminum
Operating temperature (min. – max.) (°C) : +5 … + 45
Storage temperature (min. – max.) (°C): -30 … +60
Humidity (max. ) (%): 15…95; no condensation
Vertical flowpackaging line “Rovema”
Type VPK360 - 14116
yoc 2001
Performance (mechanical) cycles/min: 120
roll width / diameter (max.) (mm): 770/450 (770 / 600 with front rollers)
bag width (min. – max.) (mm): 80-360
Bag length (min . – max.) (mm): 200-600
Filling volume (max.) (cm³): 12000
Seal pressure (max.) (N ): 6000 (optional: 8000)
Program memory: Standard: 100 (optional: 1000)
Dimensions: ( L x W x H) (mm): 2,435 x 1,680 x 2,015 mm
Weight: 1,500 kg
Mains connection (Volt): 230 / 400
Energy requirement (kVA): 8
Protection class: IP54
Compressed air connection: 6 bar
Air consumption 6 bar (NI/cycle): 0.25
Machine color: Ral 9007L / gray aluminum
Operating temperature (min. – max.) (°C) : +5 … + 45
Storage temperature (min. – max.) (°C): -30 … +60
Humidity (max. ) (%): 15…95; no condensation
carton box former – Packaging machine “Paal”
Type ELLE 3000 S
Working capacity:
Max. 14 cycles / minute
Infeed capacity:
Max. 34 bags / minute
Format1 : Tray with sleeve
Filling material designation: Stand-up pouch 4.0 kg
Filling material dimensions: Approx. 240 x 105 x 370 mm
Filling weight: 4.0 kg
Grouping scheme: 1 x 3 standing
Packaging type: Tray with internal, glued-in cover and cover protection
Dimensions:
Inlet height of filling material: 650 mm
Outlet height of package: 500 mm
Installation area: approx. 8000 x 6500 mm
Please refer to the installation plan for the main dimensions (photo attached)
3 x 400V, 50Hz, 5kW
Packaging machine: Type: Elematic 3000 LS/335
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
