Contact us to receive an offer.
| Manufacturer | Ishida |
|---|---|
| Model | CCW-RV-214W-1S/05-SS |
| Year | |
| Location | Poland
|
The Ishida CCW-RV-214W-1S/05-SS is an automatic multihead combination scale designed for precise portioning of bulk products. Manufactured in 2020, this machine features 14 individual weighing cells that work together to select the optimal combination to achieve a preset total weight for each portion. It has a maximum head capacity of 100 grams and operates at a speed of 25 cycles per minute, ensuring efficient processing.
The scale offers a high degree of accuracy, with each precision weighing cell having an error margin of +/-0.025 grams, and an overall operating range accuracy of +/-1% for weights between 1 and 100 grams. The combination of up to four weighing cells allows for precise portioning with a maximum single-cell error of +/-0.1 grams.
Constructed to pharmaceutical standards, all components in direct contact with the product are made from materials approved for pharmaceutical use, such as AISI 316L stainless steel and PTFE, facilitating easy cleaning and maintaining hygienic conditions.
The machine is equipped with a touchscreen HMI control panel that supports three access levels, enabling the creation of customized product programs with defined operating parameters. It also provides production reports for each batch and can be integrated with upstream machines or conveyors through control signal exchange.

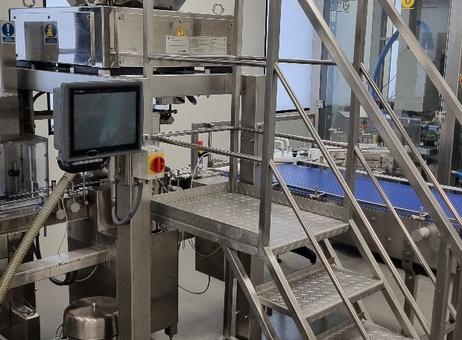

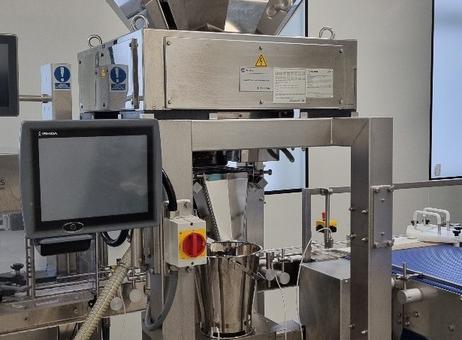

Visible features include a stainless steel platform with safety rails and stairs for operator access, a large touchscreen control panel, and a red emergency stop button near the control panel for safety. A conveyor belt system is integrated into the middle section of the machine, and a vacuum or pneumatic system component with connected hoses is located at the base. The machine appears clean and well-maintained, with no visible damage.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Automatic combination scale for feeding bulk products.
Loading from the top and then portioning through 14 weighing cells, from which the scale in each cycle selects a combination giving the total preset weight of the product.
Very high accuracy due to the use of precision weighing cells (error of a single weighing cell: +/-0.025g).
Pharmaceutical standard of finishing - all elements in contact with the product made
of material approved for the pharmaceutical industry (e.g. AISI 316L, PTFE), easy cleaning ensured.
- Operating range and accuracy: 1-100g +/-1%
- Operation speed: 25 cycles/minute
- Precision feeding system, accuracy: +/-0.025g/weighing cell
- Maximum error of a single weighing cell +/-0.1g (combination of up to 4 weighing cells to feed a set portion of product)
- Touch screen HMI control panel, 3 access levels
- Ability to create product programs with defined operating parameters
- Production reports from each production batch
- Possibility to integrate with upstream machine or conveyor by exchanging control signals
- All scale components in direct contact with the product easily removable
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2025 |
| Offers online | 3 |
| Last activity | Oct. 21, 2026 |
Automatic combination scale for feeding bulk products.
Loading from the top and then portioning through 14 weighing cells, from which the scale in each cycle selects a combination giving the total preset weight of the product.
Very high accuracy due to the use of precision weighing cells (error of a single weighing cell: +/-0.025g).
Pharmaceutical standard of finishing - all elements in contact with the product made
of material approved for the pharmaceutical industry (e.g. AISI 316L, PTFE), easy cleaning ensured.
- Operating range and accuracy: 1-100g +/-1%
- Operation speed: 25 cycles/minute
- Precision feeding system, accuracy: +/-0.025g/weighing cell
- Maximum error of a single weighing cell +/-0.1g (combination of up to 4 weighing cells to feed a set portion of product)
- Touch screen HMI control panel, 3 access levels
- Ability to create product programs with defined operating parameters
- Production reports from each production batch
- Possibility to integrate with upstream machine or conveyor by exchanging control signals
- All scale components in direct contact with the product easily removable
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Ishida CCW-RV-214W-1S/05-SS is an automatic multihead combination scale designed for precise portioning of bulk products. Manufactured in 2020, this machine features 14 individual weighing cells that work together to select the optimal combination to achieve a preset total weight for each portion. It has a maximum head capacity of 100 grams and operates at a speed of 25 cycles per minute, ensuring efficient processing.
The scale offers a high degree of accuracy, with each precision weighing cell having an error margin of +/-0.025 grams, and an overall operating range accuracy of +/-1% for weights between 1 and 100 grams. The combination of up to four weighing cells allows for precise portioning with a maximum single-cell error of +/-0.1 grams.
Constructed to pharmaceutical standards, all components in direct contact with the product are made from materials approved for pharmaceutical use, such as AISI 316L stainless steel and PTFE, facilitating easy cleaning and maintaining hygienic conditions.
The machine is equipped with a touchscreen HMI control panel that supports three access levels, enabling the creation of customized product programs with defined operating parameters. It also provides production reports for each batch and can be integrated with upstream machines or conveyors through control signal exchange.
Visible features include a stainless steel platform with safety rails and stairs for operator access, a large touchscreen control panel, and a red emergency stop button near the control panel for safety. A conveyor belt system is integrated into the middle section of the machine, and a vacuum or pneumatic system component with connected hoses is located at the base. The machine appears clean and well-maintained, with no visible damage.
