Price on request
Make an offer| Force | 320 T |
| Stroke length | 2040 mm |
| Table length | 2000 mm |
| Table width | 1200 mm |
| Engine Power | 22 kW |
| ------------------- | |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | yes |
| status | |
| Datasheet | INVERNIZZI T320 DM2 |
| Last availability date | 08/04/2026 |
Manufacturer: Invernizzi
Model: T320 DM2
Year of Manufacture: 2009
This Invernizzi T320 DM2 lamination press is a heavy-duty industrial machine designed for high-capacity pressing operations. It offers a pressing force of 320 tons (3200 kN) and is powered by a 22 kW engine. The machine features a large slide and bed surface measuring 2000 mm in length by 1200 mm in width, providing ample workspace for various lamination tasks. The press stroke length is 2040 mm, with adjustable stroke settings ranging from 20 to 40 mm, and a fixed stroke of 17 mm.
The press includes several dimensional openings to accommodate material handling: a 600 mm opening in the bed, downward and backward openings of 410 mm and 500 mm respectively in the press upright, and a lateral useful opening of 1100 mm. The frontal useful opening measures 2100 mm. The maximum distance between the bolster and slide varies between 450 mm and 500 mm depending on stroke and adjustment positions.
Electrical installation features include an installed power of 59 kW, operating at 400 V and 50 Hz, with a control circuit voltage of 24 VDC. The hydraulic system operates at pressures ranging from 60 bar to 160 bar and includes a 2400-liter hydraulic tank. The pump motor power is 55 kW, supported by a 421-liter phase 2 accumulator and a 60-liter phase 3 injector. Lubrication is centralized with an oil-based system and a 5-liter oil tank. The cooling system requires a maximum water inlet temperature of 25°C, with a minimum water pressure of 2 bar.

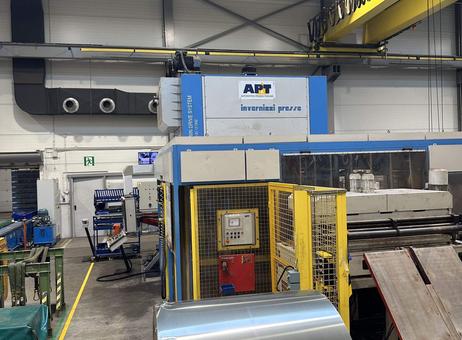

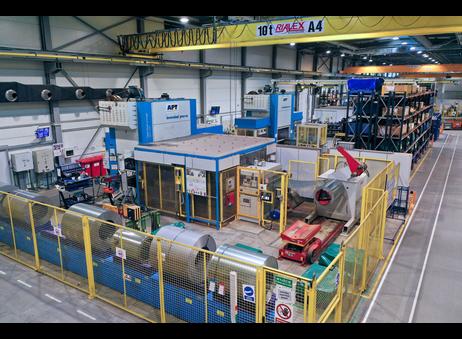

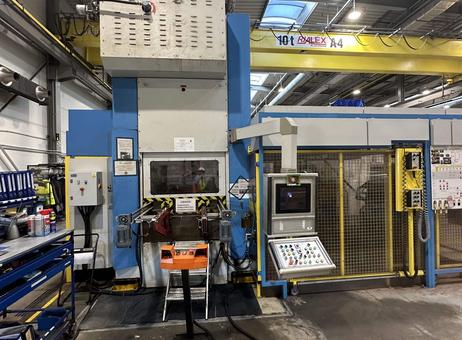

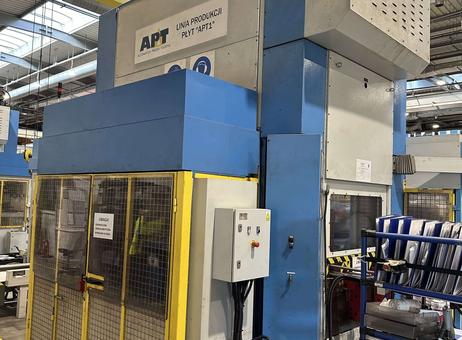

The machine is enclosed by yellow safety fencing and equipped with multiple control panels, including an operator control station with buttons, switches, a monitor screen, and emergency stop controls. An overhead crane with a 10-ton capacity is installed above the machine to assist with heavy lifting. Several large metal coils are positioned in front of the press, indicating its use in coil processing operations. The press is situated in a clean and organized industrial workshop environment with clear floor markings and additional machinery nearby. The machine appears to be in good condition with only minor signs of wear visible on some upper sections.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: Invernizzi T320 DM2 Lamination Press Line
Manufacturer: Invernizzi
Model: T320 DM2
Year of Manufacture: 2009
Technical Condition: As-is, where-is
Production Line Details:
- Frame Sizes: 280-355 mm
- Suitable for Motors: 75-355 kW
Included Equipment:
- DIMECO ETC 80 Coil Loading Truck (2009)
- DIMECO 2386 Heavy Duty Decoiler (2009)
- DIMECO Coil Straightener (2009)
- DIMECO 1125H SIMO STAR Zig Zag Feeder (2009)
- APT Stacker Unit
General Press Information:
- Capacity: 320 tons
Press Performance Specifications:
- Press Force: 3200 kN
- Drive Power: 22 kW
- Stroke Rate: 15-50 strokes per minute
Structural and Mechanical Dimensions:
- Slide Dimensions (Length x Width): 2000 mm x 1200 mm
- Bed Dimensions (Length x Width): 2000 mm x 1200 mm
- Opening in the Bed: 600 mm
- Openings in the Press Upright:
- Downward: 410 mm
- Backward: 500 mm
- Bed Plate Thickness: 150 mm
Adjustments and Control Mechanisms:
- Slide Adjustment: 90 mm
- Stroke Adjustment Range: 20-40 mm
- Fixed Stroke: 17 mm
Machine Physical Parameters:
- Lateral Useful Opening: 1100 mm
- Frontal Useful Opening: 2100 mm
- Maximum Distance Between Bolster and Slide:
- Stroke Down, Adjustment Up (S.D.A.U.): 500 mm
- Stroke Down, Adjustment Down (S.D.A.D.): 450 mm
Electrical and Hydraulic Installations:
- Installed Electrical Power: 59 kW
- Voltage: 400 V
- Frequency: 50 Hz
- Control Circuit Voltage: 24 VDC
Hydraulic Installation Details:
- Operating Pressure Range: 60 bar (low) to 160 bar (high)
- Hydraulic Tank Capacity: 2400 liters
- Pump Motor Power: 55 kW
- Phase 2 Accumulator: 421 liters
- Phase 3 Injector: 60 liters
Cooling and Lubrication Systems:
- Centralized Lubrication System Type: Oil
- Oil Tank Capacity: 5 liters
- Cooling System Maximum Water Inlet Temperature: 25°C (requires manufacturer approval for higher temperatures)
- Minimum Water Pressure: 2 bar
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
