Contact us to receive an offer.
| Manufacturer | Invernizzi |
|---|---|
| Model | DMS 250 |
| Year | 2009 |
| Location | Netherlands
|
Invernizzi DMS 250 Lamination Press Line, manufactured in 2009, is a robust industrial press designed for heavy-duty lamination tasks. This machine has a pressing force capacity of 250 tons (2500 kN) and features a stroke length of 700 mm, allowing for significant material deformation and processing. The press includes two thrust units and offers a lateral useful opening of 1100 mm and a frontal useful opening of 1200 mm, accommodating sizable workpieces.
The machine's table measures 1200 mm in length and 1000 mm in width, providing a substantial area for die mounting both on the bolster and the slide, each supporting a maximum die area of 1200 mm by 1000 mm. It supports a maximum tool dimension of 1800 mm by 1200 mm and can handle tool weights up to 8000 kg. The bolster thickness is 140 mm, with a distance from the bolster to the floor of 1200 mm.
Equipped with a 20 kW main drive motor running at 2500 RPM, the press operates with an air pressure of 5.5 bar and is powered by a 400 V, 50 Hz main supply. The control circuit voltage is 24 VDC. The machine allows for slide positioning with automatic adjustment of 50 mm, a fixed stroke of 250 mm, and adjustable cycles ranging from 15 to 60.

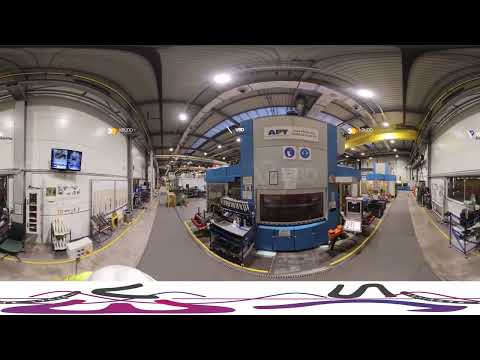

Physically, the press measures approximately 2780 mm in length, 2150 mm in width, and 4700 mm in height, with a total weight of 30,000 kg. The overall structure is painted in blue and white and includes yellow safety cages for operational safety. A control panel is located on the right side for machine operation. The machine appears clean and well-maintained, with visible red and blue mechanical components and connected wiring. Two vertical cylindrical lamps are positioned on the left and right sides to provide illumination during operation. Some wear and dirt are present on metal surfaces, consistent with industrial use. Nearby metal racks and pallets indicate a typical industrial environment.
This Invernizzi DMS 250 press line is suitable for heavy industrial lamination applications requiring precise force and robust construction.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: Invernizzi DMS 250 Lamination Press Line
Manufacturer: Invernizzi
Model: DMS 250
Year of Manufacture: 2009
Technical Condition: As-is, where-is
Press Performance Specifications:
Capacity Force: 2500 kN
Nominal Force at 1% Elongation: 20 kN
Kinetic Energy: 7.3575 kJ
Structural and Mechanical Dimensions:
Work Metal Thickness with Constant Speed: 3 mm
Thrust Units: 2
Lateral Useful Opening: 1100 mm
Frontal Useful Opening: 1200 mm
Maximum Distance Between Bolster and Slide:
- Stroke Down, Adjustment Up (S.D.A.U.): 700 mm
- Stroke Down, Adjustment Down (S.D.A.D.): 650 mm
Adjustments and Control Mechanisms:
Slide Positioning with Automatic Adjustment: 50 mm
Fixed Stroke: 250 mm
Adjustable Cycles: 15-60
Die Mounting Areas:
Max Area for Die Mounting on Bolster (Width x Depth): 1200 mm x 1000 mm
Max Area for Die Mounting on Slide (Width x Depth): 1200 mm x 1000 mm
Drive and Operational Speed:
Main Drive Motor Rating: 20 kW
Speed: 2500 RPM
Power Supply and Operational Pressures:
Air Operating Pressure: 5.5 Bar
Main Power Supply: 400/50 V/Hz
Control Circuit Voltage: 24 VDC
Physical Measurements and Weight:
Maximum Tool Dimension: 1800 x 1200 mm
Maximum Tool Weight: 8000 kg
Distance from Bolster to Floor: 1200 mm
Bolster Thickness: 140 mm
Overall Dimensions (indicative measures):
- Height (including motor): 4700 mm
- Height (without motor or lateral motor): 4180 mm
- Width: 2780 mm
- Depth: 2150 mm
Weight: 30,000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 23 |
| Last activity | Nov. 5, 2026 |
