| Manufacturer | INNSE - BERARDI |
|---|---|
| Model | SIEMENS |
| Year | |
| Location | Italy
|

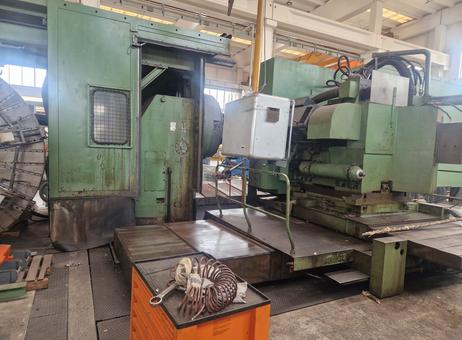

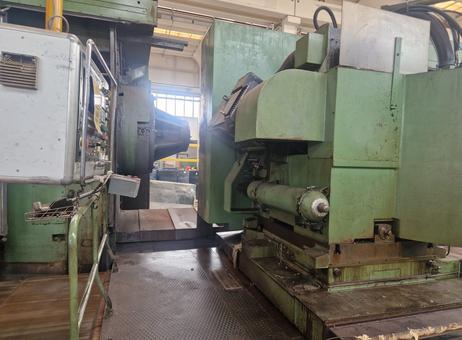

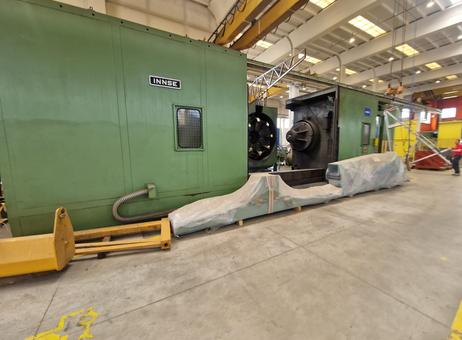

Manufacturer: INNSE - BERARDI. CNC Control: SIEMENS. This is a heavy-duty CNC lathe/boring machine configured for large workpieces and valve grinding applications. Key equipment specifications: maximum distance between centers 3,500 mm; maximum turning diameter on carriage Ø2,400 mm; ball-valve grinding range Ø250 mm to Ø2,400 mm; maximum piece load capacity between centers 16,300 kg. Spindle and motion data: spindle bore Ø340 mm; spindle speed range 1.5 ÷ 240 RPM (two speed ranges), minimum spindle speed at full motor power 27 RPM; spindle motor power 90 kW; maximum spindle torque 3,000 Nm. Cross travel (transversal) is 1,150 mm and Z travel (distance between centers) is 3,500 mm. Grinding wheel spindle speed range is 20 ÷ 1,200 RPM with a DC grinding spindle motor power listed as 110 kW. Typical chucks and workholding: chuck diameters Ø1,200 mm (general) and dedicated chuck diameters for grinding valve balls—Ø1,200 mm for Ø250–Ø1,210 mm balls and Ø2,200 mm for Ø1,190–Ø2,400 mm balls. Additional machine movements and feeds: cross travel feed 1,500 mm/min; longitudinal travel feed 4,500 mm/min; tailstock feed 1,200 mm/min; tailstock quill Ø280 mm. Minimum and maximum piece diameters between jaws: Ø120 ÷ Ø950 mm. Bed widths noted: piece holder bed width 1,100 mm and carriage bed width 1,600 mm. Accessories listed with the machine include a chip conveyor and manuals; the listing states the machine is complete with all accessories. Observed components and features: INNSE branding on the housing; a large enclosed machine housing and a sizeable circular chuck/faceplate with multiple radial clamp positions; segmented circular fixture with hydraulic clamp blocks and associated hydraulic hoses and piping; an operator control panel mounted to the left side; hydraulic cylinders and a metal walkway/platform between machine sections. There are additional fixtures and long components packaged on pallets and a portable rotary fixture mounted on a support stand. Condition notes: exterior surfaces, tooling and clamp assemblies show oil/grease staining, dirt/grime and machining residue, with some light corrosion/rust marks on tooling and fixtures. A hinged/slide access panel and a flat worktable with T-slots are present. All condition remarks should be verified by inspection prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Lathes
CNC Control: SIEMENS
Max Distance Between Centers: 3,500 mm
Max Turning Diameter On Carriage: Ø 2,400 mm
Max Grinding Diameter Of Ball Valve: Ø 2,400 mm
Minimum Grinding Diameter Of Ball Valve: Ø 250 mm
Max Piece Load Capacity Between Centers: 16,300 Kg
Bed Width Of Piece Holder: 1,100 mm
Bed Width Of Carriage: 1,600 mm
Chuck Diameter: Ø 1,200 mm
Min Max Piece Diameter Between Jaws: Ø 120 ÷ Ø 950 mm
Spindle Bore Diameter: Ø 340 mm
Spindle Speed Range: 1.5 ÷ 240 RPM
Spindle Speed Steps: 2 ranges
Minimum Spindle Speed At Full Motor Power: 27 RPM
Spindle Motor Power: 90 kW
Max Torque Of Spindle: 3,000 Nm
Cross Travel Transversal: 1,150 mm
Grinding Wheel Spindle Speed Range: 20 ÷ 1,200 RPM
Grinding Spindle Motor Power With DC Current: 110 kW

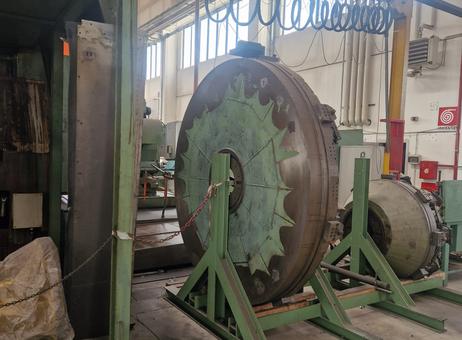

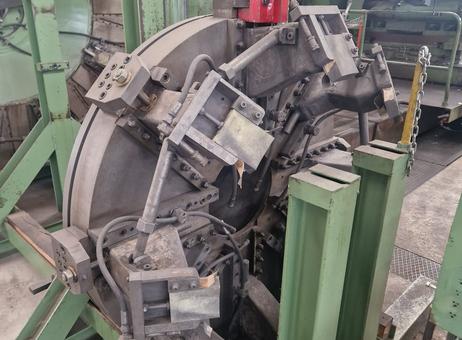

Chuck Diameter For Grinding Valve Balls With Diameter Between Ø 250 and Ø 1,210 mm: Ø 1,200 mm

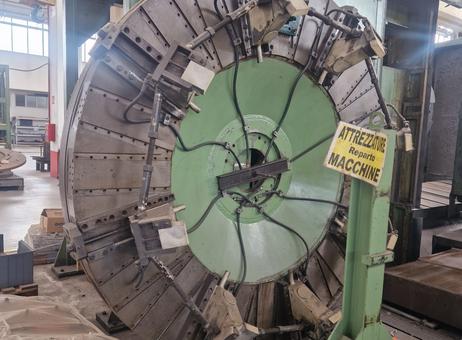

Chuck Diameter For Grinding Valve Balls With Diameter Between Ø 1,190 and Ø 2,400 mm: Ø 2,200 mm
Cross Travel Feed: 1,500 mm/min
Longitudinal Travel Feed: 4,500 mm/min
Tailstock Feed: 1,200 mm/min
Tailstock Quill Diameter: Ø 280 mm
Accessories: MACHINE COMPLETE WITH ALL ACCESSORIES, CHIP CONVEYOR, AND MANUALS
