| Manufacturer | Index |
|---|---|
| Model | G200 C |
| Year | 2000 |
| Location | Germany
|
| Category | Lathes - CNC lathes |
| Turning length | 400 mm |
| Turning Ø | 200 mm |
| Ø above the bed | 400 mm |
| Ø above transversing slide | 420 mm |
| Length between centers | 400 mm |
| Type of CNC | |
| X-axis | 155 mm |
| Z-axis | 590 mm |
| Spindle taper | |
| Spindle bore | 42 mm |
| Number of turrets | 2 |
| Number of tools on turret | 14 |
| Number of rotating tools | 14 |
| Turning speed | 7500 rpm |
| Spindle motor power | 20 kW |
| Tailstock | yes |
| Bar feeder | no |
| Length x width x height | 3580.0 × 1910.0 × 2050.0 |
| Weight | 4000 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Index G200 |
| Last availability date | 25/10/2026 |
| Product id | P250507408 |
| Language |
cnc струг Index G200 C
Soustruh cnc Index G200 C
Index G200 C cnc drejebænk
Index G200 C Drehmaschine CNC
cnc τόρνος Index G200 C
Index G200 C cnc lathe
Torno cnc Index G200 C
Tour cnc Index G200 C
cnc tokarski stroj Index G200 C
Index G200 C cnc eszterga
Tornio cnc Index G200 C
cnc tekinimo staklės Index G200 C
Index G200 C cnc-draaibank
Tokarka CNC Index G200 C
Torno CNC Index G200 C
strung cnc Index G200 C
Index G200 C Токарный станок с ЧПУ
cnc strug Index G200 C
Index G200 C cnc svarv
Cnc torna Index G200 C
|
This listing offers a used 2000 Index G200 C 5-axis Turn-Mill Centre, a versatile CNC lathe designed for complex machining tasks. The machine features comprehensive multi-axis movement capabilities, including X, Y, Z, and B axes on the top cross slide, and additional X and Z axes on the bottom cross slide and right turret. Specifically, the X-axis travel is 155 mm, Y-axis 120 mm, Z-axis 590 mm, with a B-axis swivel range of 360°. The bottom cross slide provides 105 mm X-axis and 307 mm Z-axis travel, while the turret right offers 120 mm X-axis and 400 mm Z-axis travel. This setup allows for high-precision machining with a resolution of 0.001 mm.
The machine is equipped with synchronous devices for counter spindle machining, a tool carrier for synchronous spindle rear end machining, an additional milling spindle, and supports thread milling and polygon turning. It includes a gripperless tool changer capable of holding six tools (HKS-50 B, KM40) and a workpiece handling unit (WHU100). The spindle can reach speeds up to 7500 rpm, with multiple spindle clearance options ranging from 30 mm to 65 mm. The tailstock offers a center distance of 400 mm and a maximum force of 5500 N.
In terms of dimensions, the machine measures 1910 mm in width, 3580 mm in depth, and 2050 mm in height, weighing approximately 4000 kg.

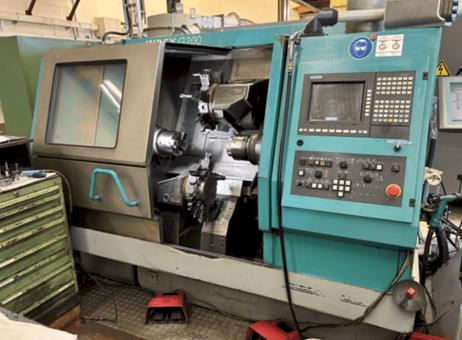

The CNC lathe features a control panel with a display screen and multiple buttons located on the right side, facilitating operational control. The front door opens to reveal the internal chuck and tooling. Visible wear marks on the outer body indicate prior use. A green tool cabinet with multiple drawers is positioned to the left of the machine, providing convenient storage. Additionally, two red foot pedals are placed on the floor in front of the machine.
The display screen shows machine status information, including an emergency stop warning in red text, as well as data such as operating hours and piece count. Control panel buttons are labeled, primarily in Italian, supporting various machine functions.
This Index G200 C Turn-Mill Centre is suitable for applications requiring precise multi-axis machining and flexible tooling options. For more details or to arrange a viewing, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Used 2000 Index G200 C 5-axis Turn-Mill Centre
Consider this opportunity to buy. Contact us for more information.
Key Features:
Synchronous device for counter spindle machining
Tool carrier 3 for synchronous spindle (rear end machining)
Additional milling spindle
Thread milling and polygon turning device
Gripperless tool changer (6 tools, HKS-50 B, KM40)
Workpiece handling WHU100
High precision control (0.001 mm resolution)
Comprehensive multi-axis movement
Axis Movements:
Cross slide 1 (top) - XYZB axes:
X-axis: 155 mm travel
Y-axis: 120 mm travel
Z-axis: 590 mm travel
B-axis: 360° swivel range
Cross slide 2 (bottom) - XZ axes:
X-axis: 105 mm travel
Z-axis: 307 mm travel
Turret right:
X-axis: 120 mm travel
Z-axis: 400 mm travel
Spindle Data (Main/Counter):
Max Speed: Up to 7500 rpm (depending on configuration)
Spindle clearance options: 30 mm / 42 mm / 60 mm / 65 mm
Other:
Tail Stock: 400 mm center distance, max 5500 N force
Dimensions: 1910 mm (width) x 3580 mm (depth) x 2050 mm (height)
Weight: 4000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
