Contact us to receive an offer.
| Manufacturer | IMA |
|---|---|
| Model | MISTRAL Y16 |
| Year | 2013 |
| Location | Italy
|

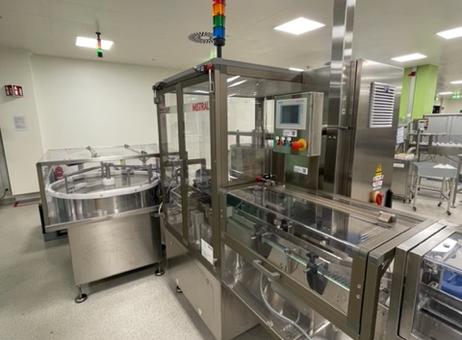

The IMA MISTRAL Y16, manufactured in 2013, is a rotary blower machine designed for the dry cleaning of glass or plastic bottles that do not require water washing. It effectively removes impurities such as solid particles and dust from the interior of bottles using air jets and suction. The cleaning process occurs on a carousel where bottles are securely held and inverted for thorough cleaning.
This machine operates with a nominal voltage of 400 V, three phases plus PE, at 50 Hz. It has a maximum production speed of up to 200 pieces per minute, corresponding to a capacity of 12,000 units per hour. The cleaning cycle includes several phases: transporting bottles along the loading channel monitored by sensors, spacing bottles via a screw feeder to maintain proper distance, feeding bottles to the carousel grippers using a rotating starwheel, and finally blowing air through needles inserted inside the bottles to remove impurities. Additionally, a deionizer eliminates electrostatic charges on incoming bottles, and the inlet air is filtered to ensure purity.

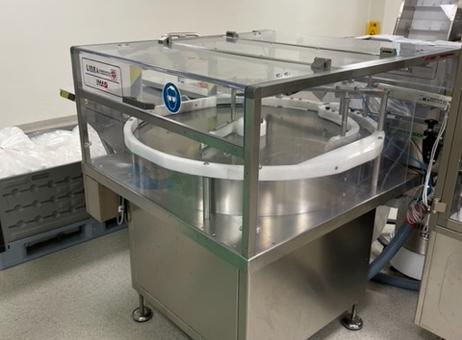

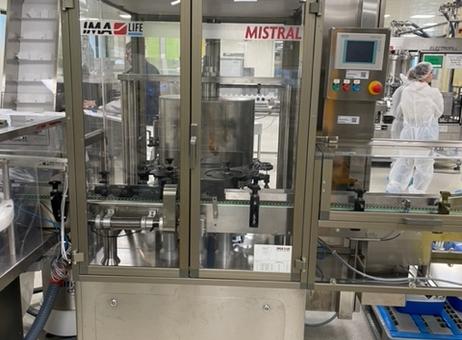

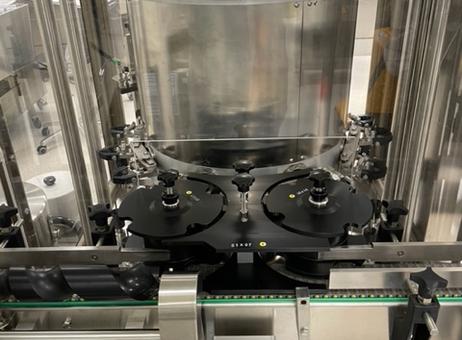

Constructed primarily from stainless steel, the machine features transparent protective panels that allow visibility into its interior while maintaining safety. The rotary table includes white plastic guide rails and multiple adjustment knobs for precise vial positioning. A conveyor belt system transports the bottles through the machine, equipped with vial guides to ensure smooth handling.

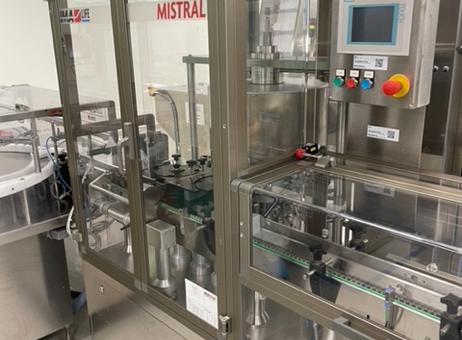

The control panel is mounted on the machine's side and includes a touchscreen display, buttons, an emergency stop button, and indicator lights for operational status. A stack light indicator with multiple colors (red, yellow, green, blue) is mounted on top for clear visual signaling. The machine is installed on a stainless steel base with adjustable feet for leveling. Protective covers bear safety signage indicating mandatory personal protective equipment.
Overall, the IMA MISTRAL Y16 appears clean and well-maintained, with intact enclosure panels and no visible mechanical damage, suitable for integration into production lines requiring dry bottle cleaning prior to filling or packaging.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The IMA Mistral Y 16 rotary blower of 2013 is suitable for dry cleaning of glass or plastic bottles that do not require water washing, but the simple removal of impurities inside them, solid particles and dust that can be removed with air jets.
The machine essentially consists of a carousel where the bottles are subjected to jets of air and suction of impurities.
For a greater guarantee of purity, the air is filtered at the inlet.
Technical specifications:
Nominal voltage in Volts 400
Number of phases 3//PE
Hrz 50
Maximum production speed: max. 200 pcs/min
The following operating phases
1 transport: the bottles are transported along the carousel loading channel. A sensor monitors the presence of the bottles in the channel and stops the machine in stand-by when they are finished. Before being fed into the screw feeder, a deioniser eliminates any electrostatic charges that may have accumulated on the incoming bottles.
2 spacing. The function of the screw feeder is to accompany the bottles to the loading starwheel, maintaining the distance between them to allow them to be picked up correctly by the starwheel
3 carrousel feeding. The loading star rotates clockwise until bottles are presented to the carrousel grippers, from which they are hooked and tipped for cleaning operations.
4 blowing. Once the bottles have been turned upside down, the blowing needles go up to be introduced inside
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 384 |
| Last activity | Oct. 27, 2026 |
The IMA Mistral Y 16 rotary blower of 2013 is suitable for dry cleaning of glass or plastic bottles that do not require water washing, but the simple removal of impurities inside them, solid particles and dust that can be removed with air jets.
The machine essentially consists of a carousel where the bottles are subjected to jets of air and suction of impurities.
For a greater guarantee of purity, the air is filtered at the inlet.
Technical specifications:
Nominal voltage in Volts 400
Number of phases 3//PE
Hrz 50
Maximum production speed: max. 200 pcs/min
The following operating phases
1 transport: the bottles are transported along the carousel loading channel. A sensor monitors the presence of the bottles in the channel and stops the machine in stand-by when they are finished. Before being fed into the screw feeder, a deioniser eliminates any electrostatic charges that may have accumulated on the incoming bottles.
2 spacing. The function of the screw feeder is to accompany the bottles to the loading starwheel, maintaining the distance between them to allow them to be picked up correctly by the starwheel
3 carrousel feeding. The loading star rotates clockwise until bottles are presented to the carrousel grippers, from which they are hooked and tipped for cleaning operations.
4 blowing. Once the bottles have been turned upside down, the blowing needles go up to be introduced inside
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The IMA MISTRAL Y16, manufactured in 2013, is a rotary blower machine designed for the dry cleaning of glass or plastic bottles that do not require water washing. It effectively removes impurities such as solid particles and dust from the interior of bottles using air jets and suction. The cleaning process occurs on a carousel where bottles are securely held and inverted for thorough cleaning.
This machine operates with a nominal voltage of 400 V, three phases plus PE, at 50 Hz. It has a maximum production speed of up to 200 pieces per minute, corresponding to a capacity of 12,000 units per hour. The cleaning cycle includes several phases: transporting bottles along the loading channel monitored by sensors, spacing bottles via a screw feeder to maintain proper distance, feeding bottles to the carousel grippers using a rotating starwheel, and finally blowing air through needles inserted inside the bottles to remove impurities. Additionally, a deionizer eliminates electrostatic charges on incoming bottles, and the inlet air is filtered to ensure purity.
Constructed primarily from stainless steel, the machine features transparent protective panels that allow visibility into its interior while maintaining safety. The rotary table includes white plastic guide rails and multiple adjustment knobs for precise vial positioning. A conveyor belt system transports the bottles through the machine, equipped with vial guides to ensure smooth handling.
The control panel is mounted on the machine's side and includes a touchscreen display, buttons, an emergency stop button, and indicator lights for operational status. A stack light indicator with multiple colors (red, yellow, green, blue) is mounted on top for clear visual signaling. The machine is installed on a stainless steel base with adjustable feet for leveling. Protective covers bear safety signage indicating mandatory personal protective equipment.
Overall, the IMA MISTRAL Y16 appears clean and well-maintained, with intact enclosure panels and no visible mechanical damage, suitable for integration into production lines requiring dry bottle cleaning prior to filling or packaging.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
